Datasheet Wago 285-199 — 数据表

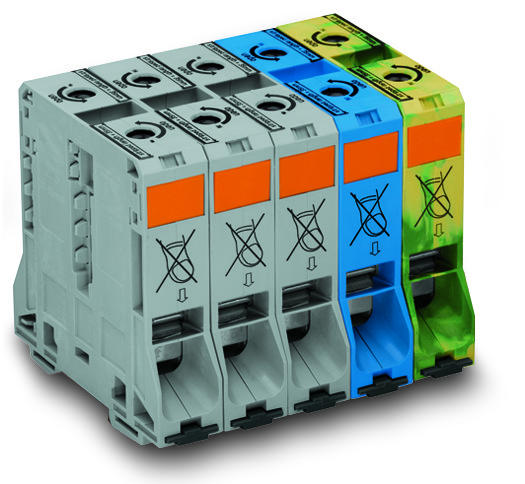

三相组；具有95mm²大电流tbs；仅适用于DIN 35 x 15导轨;铜; 95平方毫米;电源笼夹

价格

Actuation type	Operating tool
Color	gray, blue, green-yellow
Connectable conductor materials	Copper
Connection technology	POWER CAGE CLAMP
Страна происхождения	DE
Depth	107 mm / 4.213 inch
Design	horizontal
Fine-stranded conductor	25 … 95 mm² / 4 … 4/0 AWG
Global Trade Item Number (GTIN)	4045454204396
Height from upper-edge of DIN-35 rail	101 mm / 3.976 inch
Insulating material	Polyamide 66 (PA 66)
Marking level	Side marking
Number of levels	1
Rated impulse voltage (III / 3)	8 kV
Rated voltage (III / 3)	1000 V
Solid conductor	25 … 95 mm² / 4 … 4/0 AWG
Strip length	35 mm / 1.38 Inch
Total number of connection points	10
Total number of potentials	5
Type of mounting	DIN-35 rail
Type of wiring	Side-entry wiring
Weight	1340.75 g

系列: 285 (83)

285199, 285 199
