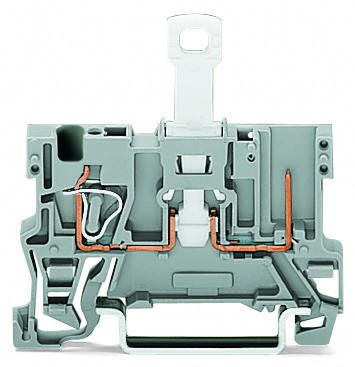

Datasheet Wago 769-232 — 数据表

1导体/ 1针可断开载体端子块；用于DIN导轨35 x 15和35 x 7.5; 4平方毫米;笼式夹

价格

Wago 769-232

Actuation type	Open Tool Slot
Color	gray
Connectable conductor materials	Copper
Connection technology	CAGE CLAMP®
Страна происхождения	DE

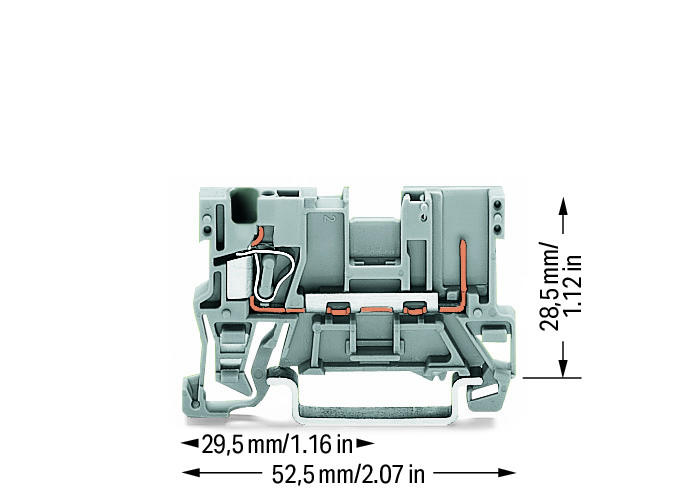

Depth	52.5 mm / 2.067 inch
Design	horizontal
Fine-stranded conductor	0.08 … 4 mm² / 28 … 12 AWG
Fire load	0.116 MJ
Global Trade Item Number (GTIN)	4045454619497
Height from upper-edge of DIN-35 rail	28.5 mm / 1.122 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center marking
Nominal cross section	4 mm²
Number of levels	1
Product Group	18 (X-COM-System)
Rated current	16 A
Rated impulse voltage (III / 3)	6 kV
Rated voltage (III / 3)	400 V
Solid conductor	0.08 … 4 mm² / 28 … 12 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 Inch
Total number of connection points	1
Total number of potentials	1
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	5.566 g
Width	5 mm / 0.197 inch

系列: 769 (100 从 460)

769232, 769 232
