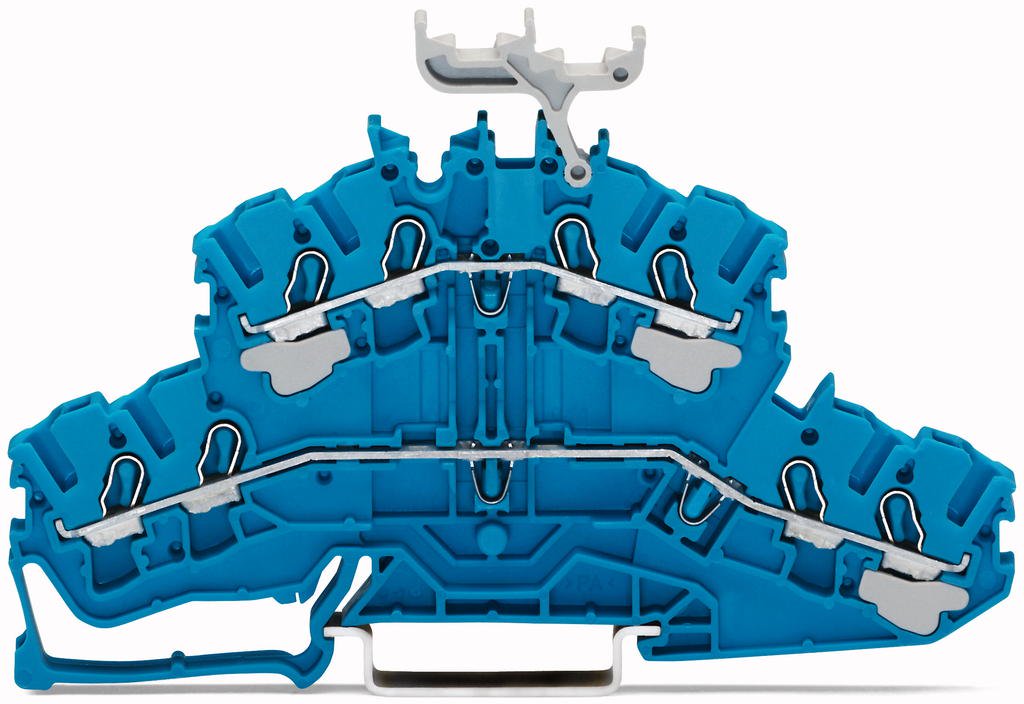

Datasheet Wago 2002-2434 — 数据表

TOPJOB S双层接线端子；通过/通过（N / N）;带标记载体导轨安装； 4芯; 5.2毫米宽灰色

价格

Actuation type	Open Tool Slot
Color	blue
Connectable conductor materials	Copper
Connection technology	Push-in CAGE CLAMP®
Страна происхождения	CN
Depth	105.1 mm / 4.138 inch
Design	horizontal
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG
Fire load	0.308 MJ
Global Trade Item Number (GTIN)	4050821144731
Height from upper-edge of DIN-35 rail	62.7 mm / 2.469 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center/side marking
Nominal cross section	2.5 mm²
Number of connection points	4
Number of connection points (connection type)	4
Number of levels	2
Potential marking	N/N
Product Group	22 (TOPJOB S)
Rated current	24 A
Rated current (2)	28 A
Rated impulse voltage (III / 3)	8 kV
Rated voltage (III / 3)	800 V
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	8
Total number of potentials	2
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	16.209 g
Width	5.2 mm / 0.205 inch

系列: 2002 (100 从 422)

20022434, 2002 2434
