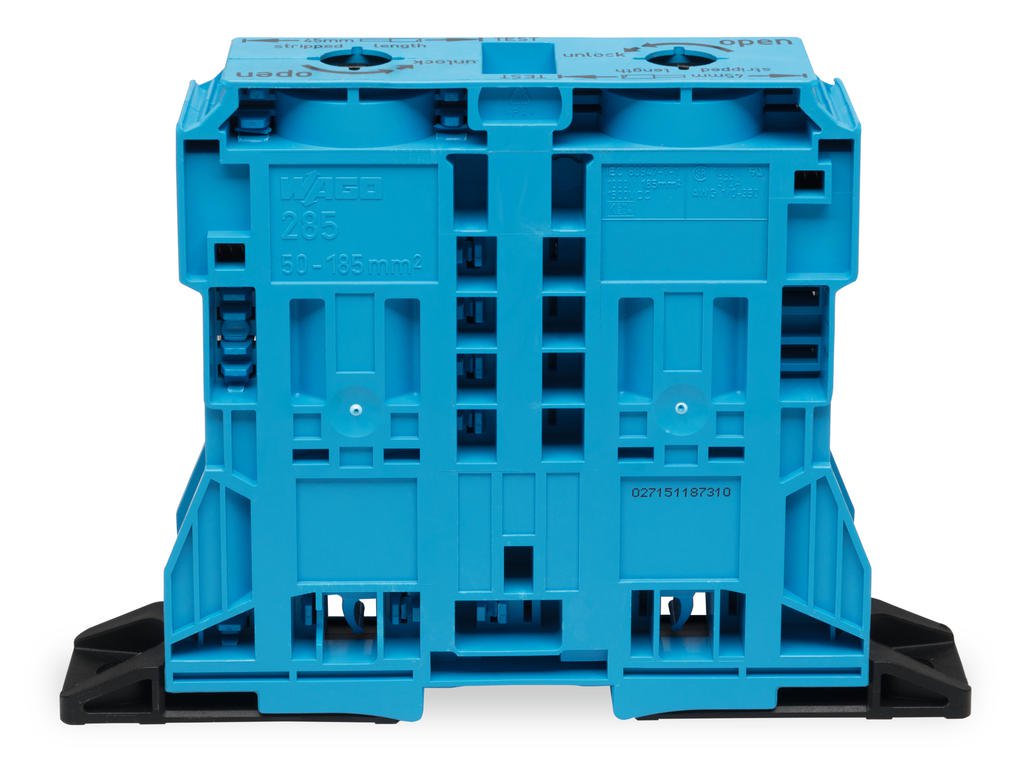

Datasheet Wago 285-1164 — 数据表

2芯通过接线端子； 185平方毫米;横向标记槽；带固定法兰；电源笼夹

价格

Actuation type	Operating tool
Color	blue
Connectable conductor materials	Copper
Connection technology	POWER CAGE CLAMP
Страна происхождения	DE
Depth	170 mm / 6.693 inch
Design	horizontal
Fine-stranded conductor	50 … 185 mm² / 1/0 AWG … 350 kcmil
Fine-stranded conductor with ferrule with plastic collar	50 … 150 mm² / 1/0 AWG … 300 kcmil
Fine-stranded conductor with ferrule without plastic collar	50 … 185 mm² / 1/0 AWG … 350 kcmil
Global Trade Item Number (GTIN)	4055143424158
Height	123 mm / 4.843 inch
Height from the surface	123 mm / 4.843 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Side marking
Mounting type	Mounting flange
Nominal cross section	185 mm²
Number of levels	1
Rated current	353 A
Rated impulse voltage (III / 3)	12 kV
Rated impulse voltage (III / 3) 2	12 kV
Rated voltage (III / 3)	1000 V
Rated voltage (III / 3) 2	1500 V
Solid conductor	50 … 185 mm² / 1/0 AWG … 350 kcmil
Stranded conductor	50 … 185 mm² / 1/0 AWG … 350 kcmil
Strip length	45 … 47 mm / 1.77 … 1.85 Inch
Total number of connection points	2
Total number of potentials	1
Type of wiring	Side-entry wiring
Weight	552 g
Width	32 mm / 1.26 inch

系列: 285 (83)

2851164, 285 1164
