Datasheet Wago 2102 — 数据表

制造商	Wago
系列	2102

价格

参数化

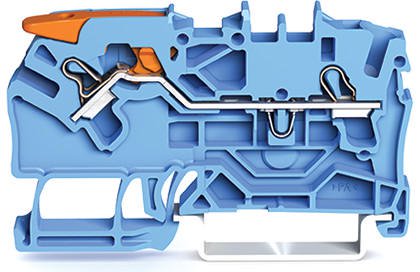

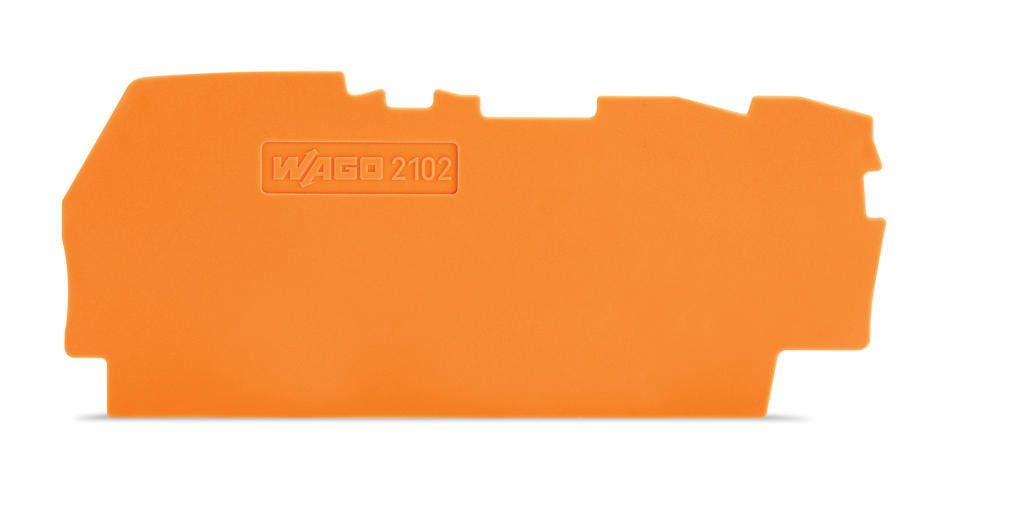

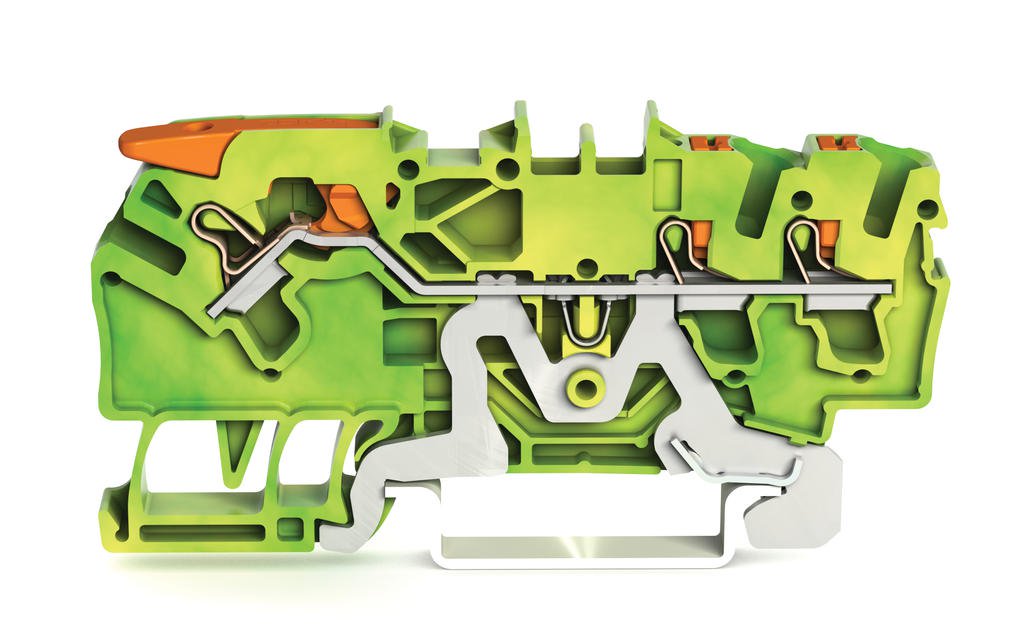

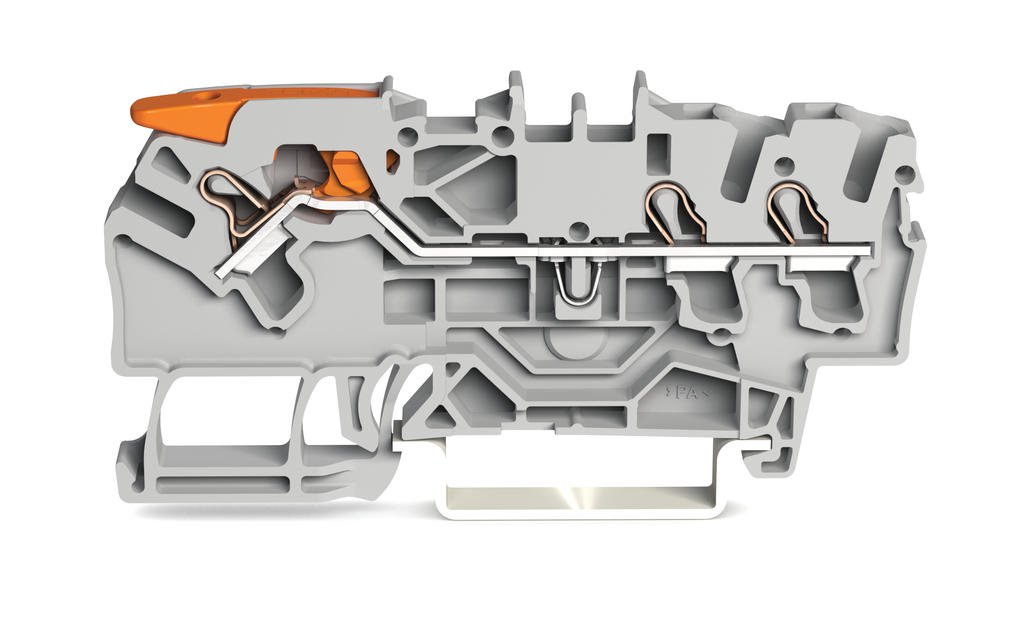

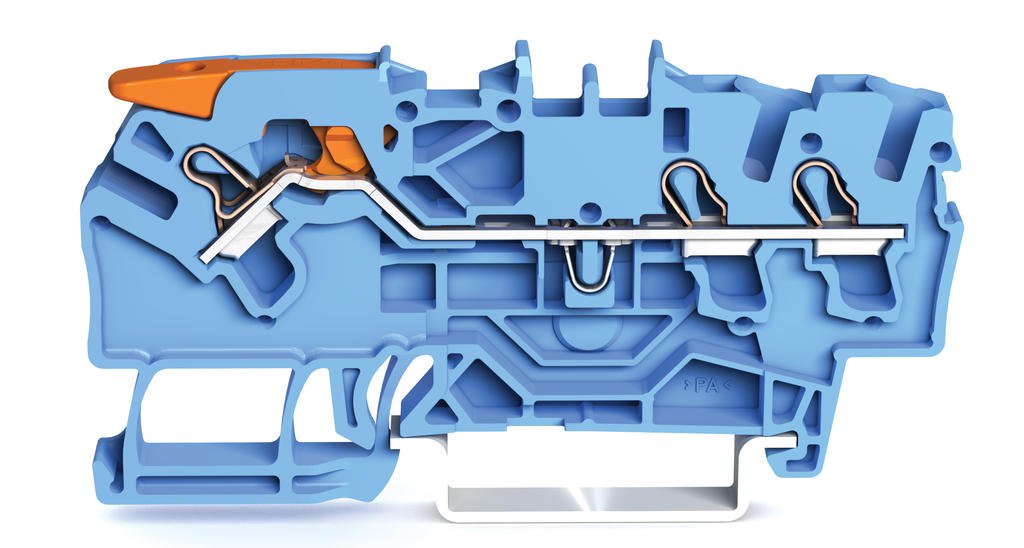

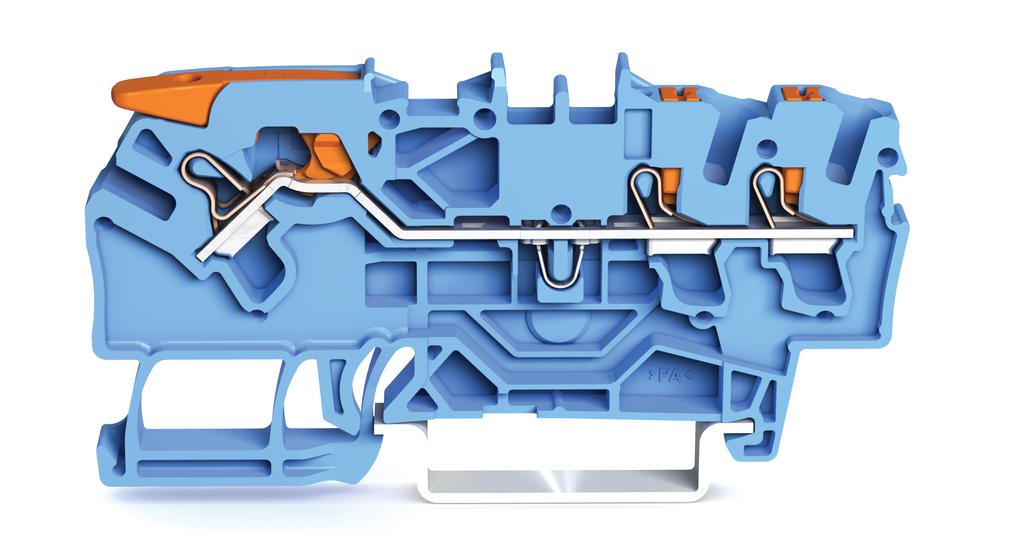

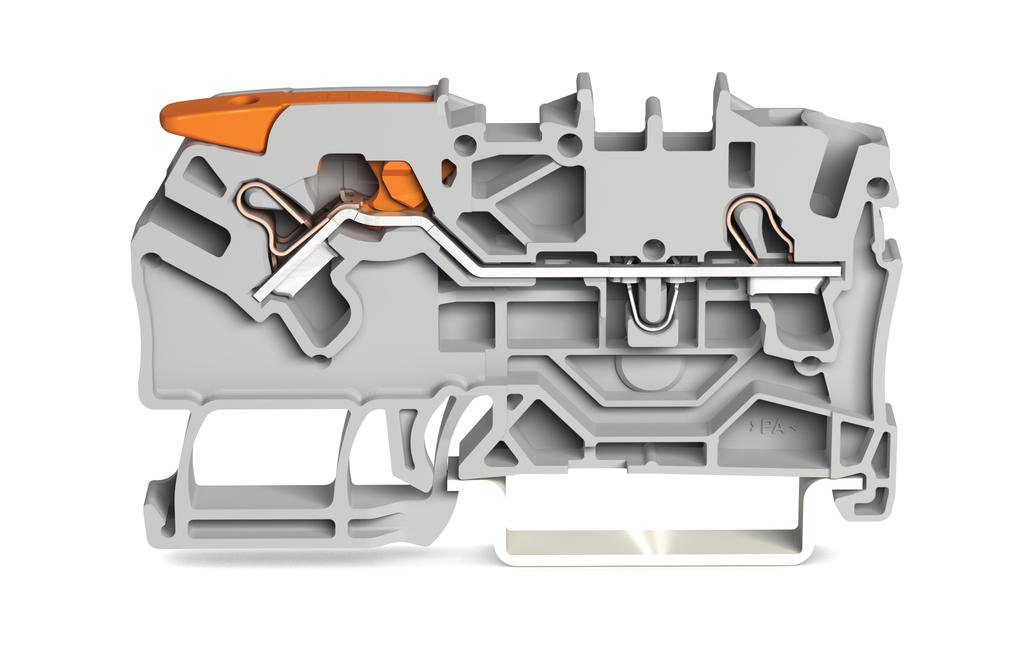

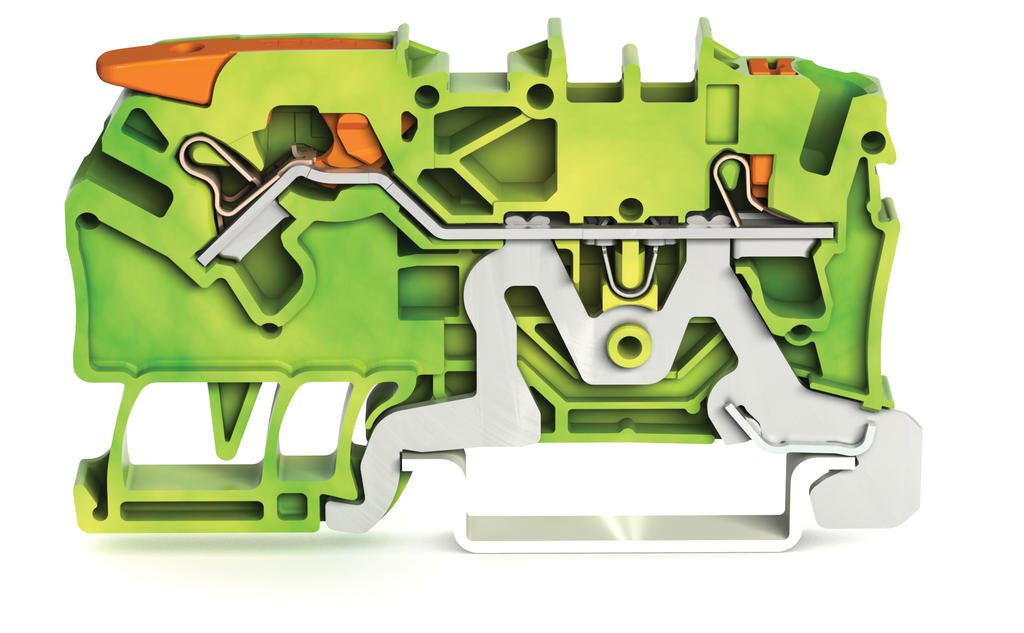

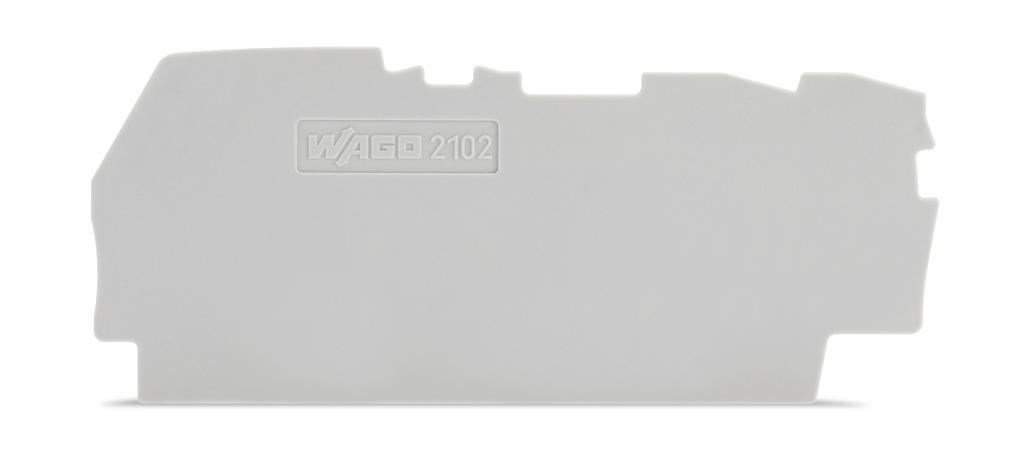

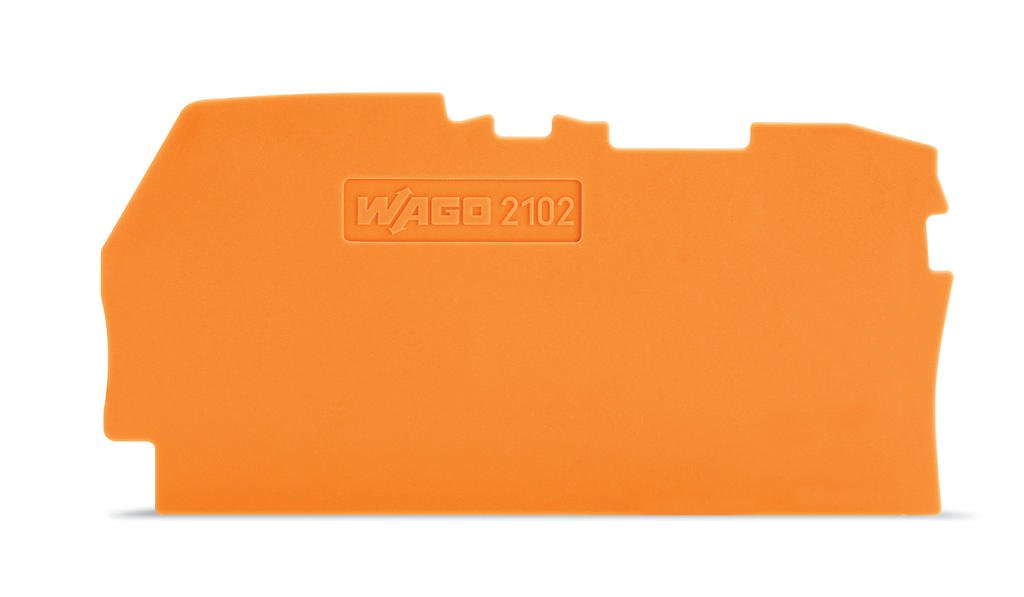

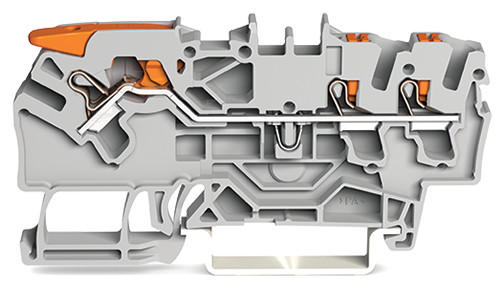

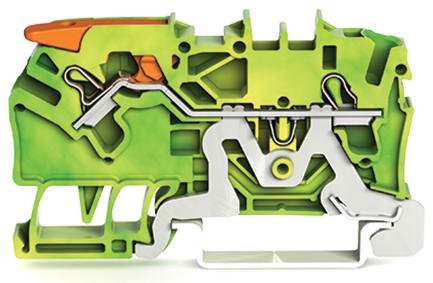

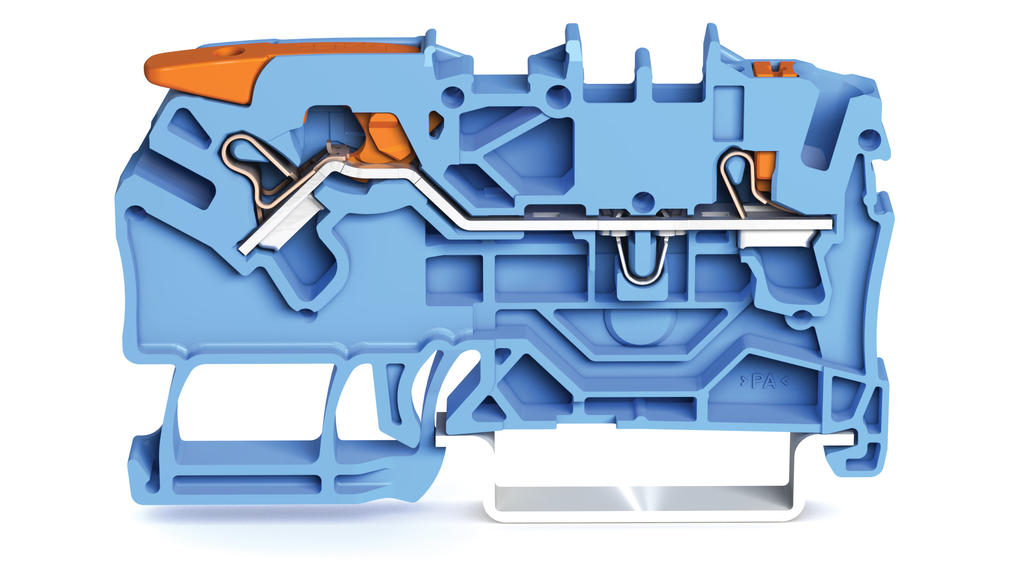

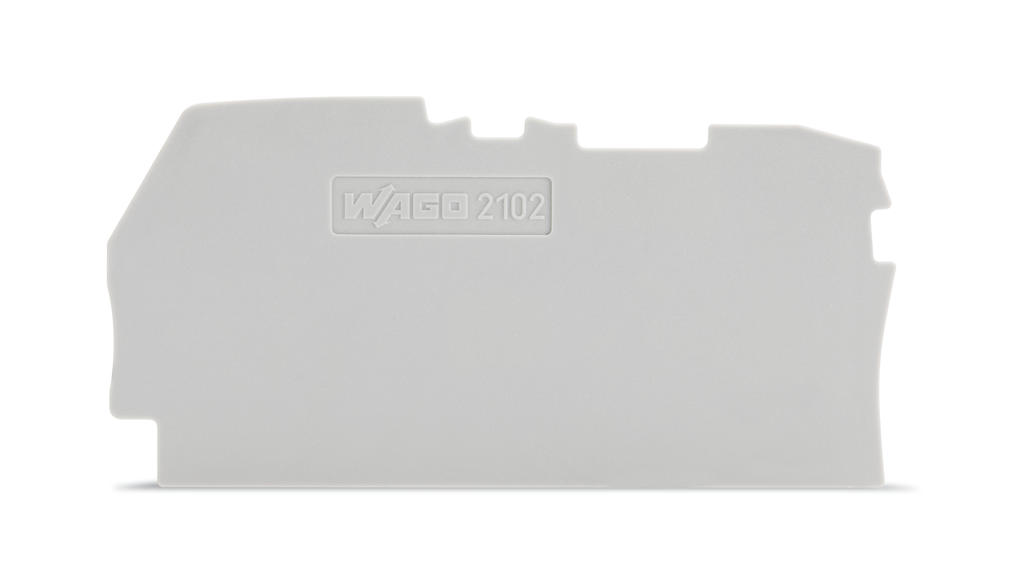

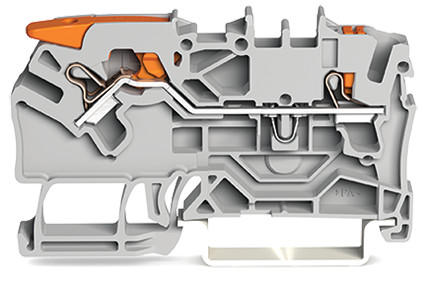

Parameters / Models	2102-1201	2102-1204	2102-1207	2102-1291	2102-1292	2102-1301	2102-1304	2102-1307	2102-1391	2102-1392	2102-5201	2102-5204	2102-5207	2102-5301	2102-5304	2102-5307
Actuation type	Lever and Open Tool Slot	Lever and Open Tool Slot	Lever and Open Tool Slot			Lever and Open Tool Slot	Lever and Open Tool Slot	Lever and Open Tool Slot			Lever and Push-button	Lever and Push-button	Lever and Push-button	Lever and Push-button	Lever and Push-button	Lever and Push-button
Actuation type 2, Push-button	Push-in	Push-in	Push-in			Push-in	Push-in	Push-in			Push-in	Push-in	Push-in	Push-in	Push-in	Push-in
Color	gray	blue	green-yellow	gray	orange	gray	blue	green-yellow	gray	orange	gray	blue	green-yellow	gray	blue	green-yellow
Connectable conductor materials	Copper	Copper	Copper			Copper	Copper	Copper			Copper	Copper	Copper	Copper	Copper	Copper
Connection technology	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®			Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®			Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®	Push-in CAGE CLAMP®
Страна происхождения	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE
Depth	61.5 mm / 2.421 inch	61.5 mm / 2.421 inch	63.8 mm / 2.512 inch	61.5 mm / 2.421 inch	61.5 mm / 2.421 inch	72.2 mm / 2.843 inch	72.2 mm / 2.843 inch	72.2 mm / 2.843 inch	72.2 mm / 2.843 inch	72.2 mm / 2.843 inch	61.5 mm / 2.421 inch	61.5 mm / 2.421 inch	63.8 mm / 2.512 inch	72.2 mm / 2.843 inch	72.2 mm / 2.843 inch	72.2 mm / 2.843 inch
Design	horizontal	horizontal	horizontal			horizontal	horizontal	horizontal			horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG			0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG			0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG			0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG			0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG	0.75 mm² / 18 AWG
Fire load, MJ			0.136					0.156			0.139	0.139	0.136	0.157	0.157	0.153
Global Trade Item Number (GTIN)	4055143741729	4055143741743	4055143741767	4055143745345	4055143745352	4055143741798	4055143741804	4055143741811	4055143745369	4055143745376	4055143741842	4055143741866	4055143741903	4055143741927	4055143741989	4055143742009
Height				33 mm / 1.299 inch	33 mm / 1.299 inch				33 mm / 1.299 inch	33 mm / 1.299 inch
Height from upper-edge of DIN-35 rail	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch			32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch			32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch	32.9 mm / 1.295 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)			Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)			Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3				(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3				(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3		(III / 3) ≙ Overvoltage category III / Pollution degree 3	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center/side marking	Center/side marking	Center/side marking			Center/side marking	Center/side marking	Center/side marking			Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking	Center/side marking
Nominal cross section	2.5 mm²	2.5 mm²	2.5 mm²			2.5 mm²	2.5 mm²	2.5 mm²			2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²	2.5 mm²
Number of levels	1	1	1			1	1	1			1	1	1	1	1	1
Packaging type	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
Rated current, A	24	24				24	24				24	24		24	24
Rated current (2), A	32	32				30	30				32	32		30	30
Rated impulse voltage (III / 3), kV	8	8				8	8				8	8		8	8
Rated voltage (III / 3), V	800	800				800	800				800	800		800	800
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG			0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG			0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG			0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG			0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch			10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch			10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	2	2	2			3	3	3			2	2	2	3	3	3
Total number of potentials	1	1	1			1	1	1			1	1	1	1	1	1
Type of mounting	DIN-35 rail	DIN-35 rail	DIN-35 rail			DIN-35 rail	DIN-35 rail	DIN-35 rail			DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail	DIN-35 rail
Type of wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring			Front-entry wiring	Front-entry wiring	Front-entry wiring			Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring	Front-entry wiring
Weight, g	6.953	6.953	9.903	1.51	1.57	8.056	8.056	11.006	1.61	1.79	6.996	6.996	9.946	8.142	8.142	11.092
Width	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	0.8 mm / 0.031 inch	0.8 mm / 0.031 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	0.8 mm / 0.031 inch	0.8 mm / 0.031 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch	5.2 mm / 0.205 inch
