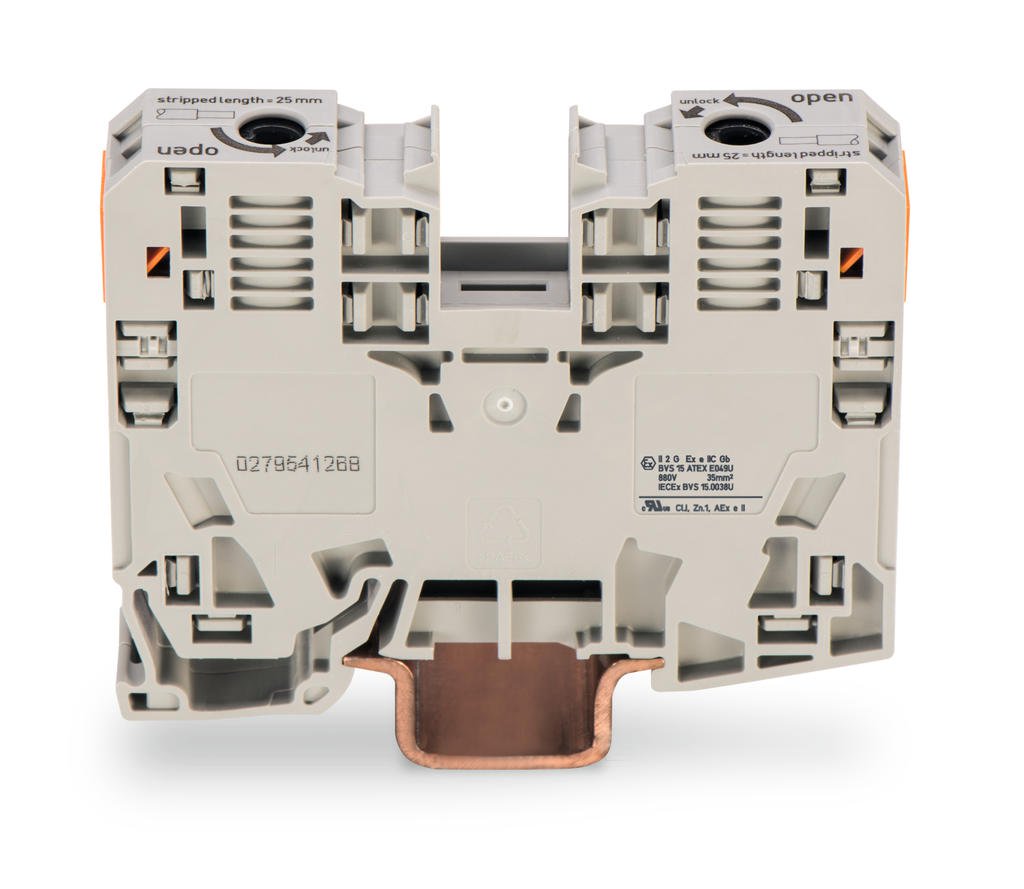

Datasheet Wago 285-935 — 数据表
2芯通过接线端子； 35毫米²;适用于Ex e II应用；横向标记槽；仅适用于DIN 35 x 15导轨; 2.3毫米厚；铜;电源笼夹
价格
参数化
| Actuation type | Operating tool |
| Color | light gray |
| Connectable conductor materials | Copper |
| Connection technology | POWER CAGE CLAMP |
| Страна происхождения | PL |
| Depth | 86 mm / 3.386 inch |
| Design | horizontal |
| Fine-stranded conductor | 6 … 35 mm² / 10 … 2 AWG |
| Global Trade Item Number (GTIN) | 4055143418539 |
| Height from upper-edge of DIN-35 rail | 63 mm / 2.48 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Side marking |
| Number of levels | 1 |
| Rated current (Ex e II) | 101 A |
| Rated voltage EN (Ex e II) | 800 V |
| Solid conductor | 6 … 35 mm² / 10 … 2 AWG |
| Strip length | 25 mm / 0.98 Inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Side-entry wiring |
| Weight | 79.291 g |
| Width | 16 mm / 0.63 inch |
