Datasheet Wago 285-637/999-950 — 数据表

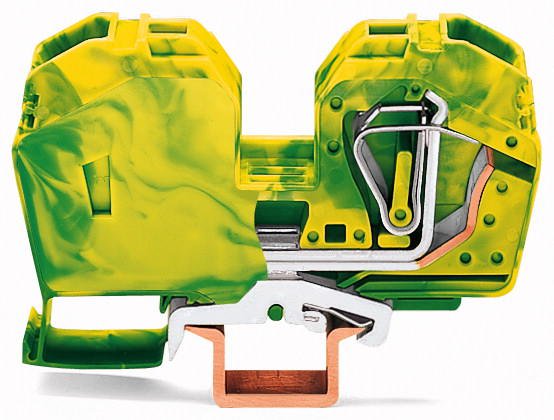

2芯接地端子块； 25平方毫米;带有集成端板；适用于Ex e II应用；侧面和中央标记；仅适用于DIN 35 x 15导轨;笼式夹

价格

Actuation type	Operating tool
Color	green-yellow
Connectable conductor materials	Copper
Connection technology	CAGE CLAMP®
Страна происхождения	DE
Depth	100 mm / 3.937 inch
Design	horizontal
Fine-stranded conductor	6 … 25 mm² / 8 … 4 AWG
Global Trade Item Number (GTIN)	4045454218775
Height from upper-edge of DIN-35 rail	53 mm / 2.087 inch
Insulating material	Polyamide 66 (PA 66)
Marking level	Center/side marking
Nominal cross section	25 mm²
Number of levels	1
Product Group	1 (Rail Mounted Terminal Blocks)
Solid conductor	6 … 25 mm² / 8 … 2 AWG
Strip length	23 mm / 0.91 Inch
Total number of connection points	2
Total number of potentials	1
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	105 g
Width	16 mm / 0.63 inch

系列: 285 (83)

285637/999950, 285 637/999 950
