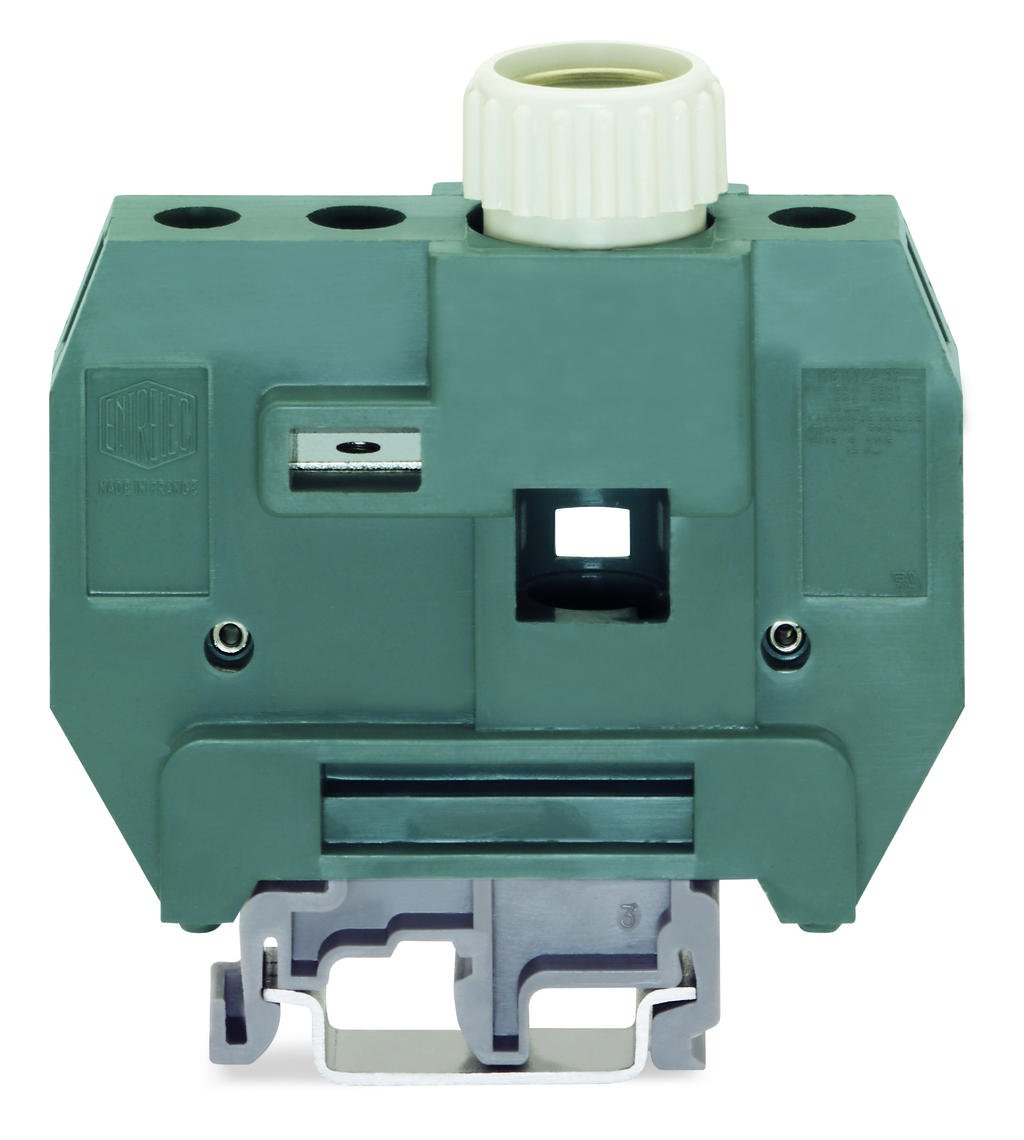

Datasheet Wago 400-416/416-299 — 数据表
保险丝接线端子；用于不带指示器的墨盒
价格
参数化
| Actuation type | Operating tool |
| Color | gray |
| Connectable conductor materials | Copper |
| Connection technology | Screw-clamp connection/Studs |
| Страна происхождения | FR |
| Depth | 74 mm / 2.913 inch |
| Design | horizontal |
| Global Trade Item Number (GTIN) | 4017332280501 |
| Height from upper-edge of DIN-35 rail | 73 mm / 2.874 inch |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Number of levels | 1 |
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| Rated current | 32 A |
| Rated impulse voltage (III / 3) | 8 kV |
| Rated voltage (III / 3) | 800 V |
| Solid conductor | 0.2 … 10 mm² / 24 … 8 AWG |
| Strip length | 13 mm / 0.51 Inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Side-entry wiring |
| Weight | 98.37 g |
| Width | 24 mm / 0.945 inch |
模型线
系列: 400 (62)
- 400-405/405-767 400-405/405-768 400-405/405-769 400-405/405-770 400-405/405-771 400-405/405-772 400-405/405-773 400-405/405-774 400-405/405-775 400-405/405-776 400-405/405-777 400-405/405-778 400-405/405-779 400-406/406-053 400-406/406-054 400-406/406-126 400-406/406-223 400-415/415-124 400-415/415-556 400-416/416-298 400-416/416-299 400-425/425-124 400-425/425-216 400-425/425-556 400-463/463-430 400-463/463-431 400-465/465-111 400-465/465-575 400-473/473-147 400-473/473-316 400-473/473-317 400-473/473-318 400-473/473-319 400-473/473-323 400-473/473-327 400-473/473-328 400-477/477-508 400-477/477-509 400-477/477-510 400-477/477-511 400-490/490-001 400-490/490-002 400-490/490-003 400-490/490-004 400-490/490-005 400-490/490-016 400-490/490-017 400-490/490-018 400-490/490-019 400-499/499-024 400-499/499-176 400-499/499-704 400-499/499-706 400-499/499-715 400-499/499-717 400-499/499-787 400-499/499-788 400-916/916-302 400-916/916-303 400-916/916-304 400-916/916-305 400-916/916-310
制造商分类
- Rail / Chassis Terminal blocks
其他名称:
400416/416299, 400 416/416 299
