Datasheet Wago 285-607/999-950 — 数据表

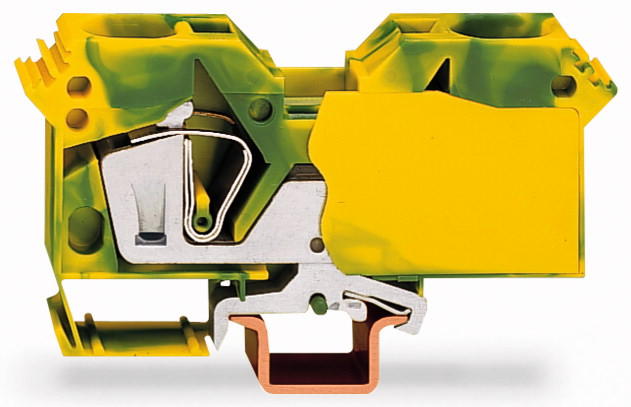

2芯接地端子块； 25平方毫米;适用于Ex e II应用；横向标记槽仅适用于DIN 35 x 15导轨; 2.3毫米厚；铜;笼式夹
价格
参数化
| Actuation type | Operating tool |
| Color | green-yellow |
| Connectable conductor materials | Copper |
| Connection technology | CAGE CLAMP® |
| Страна происхождения | DE |
| Depth | 115.5 mm / 4.547 inch |
| Design | horizontal |
| Fire load | 1.164 MJ |
| Global Trade Item Number (GTIN) | 4045454116132 |
| Height from upper-edge of DIN-35 rail | 52.5 mm / 2.067 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Side marking |
| Number of levels | 1 |
| Solid conductor | 6 … 25 mm² / 8 … 2 AWG |
| Strip length | 23 mm / 0.91 Inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 152.283 g |
| Width | 16 mm / 0.63 inch |
模型线
系列: 285 (83)
- 285-1161 285-1163 285-1164 285-1165 285-1167 285-1167/999-950 285-1169 285-1171 285-1175 285-1176 285-1177 285-1178 285-1179 285-1181 285-1184 285-1185 285-1187 285-131 285-132 285-134 285-135 285-136 285-137 285-137/999-950 285-139 285-141 285-144 285-147 285-148 285-150 285-151 285-154 285-157 285-157/999-950 285-159 285-168 285-169 285-170 285-172 285-175 285-181 285-184 285-187 285-188 285-191 285-194 285-195 285-197 285-197/999-950 285-199 285-327 285-337 285-338 285-400 285-401 285-407 285-415 285-416 285-420 285-421 285-427 285-430 285-435 285-440 285-441 285-447 285-448 285-449 285-450 285-495 285-601 285-604 285-607 285-607/999-950 285-634 285-635 285-637 285-637/999-950 285-691 285-935 285-950 285-992 285-995
制造商分类
- Rail / Chassis Terminal blocks
其他名称:
285607/999950, 285 607/999 950
