Datasheet Wago 769-211 — 数据表

2导体/ 2针载体端子块；带有屏蔽触点；用于DIN导轨35 x 15和35 x 7.5; 4平方毫米;笼式夹

价格

Wago 769-211

Actuation type	Operating tool
Color	gray
Connectable conductor materials	Copper
Connection technology	CAGE CLAMP®
Страна происхождения	DE

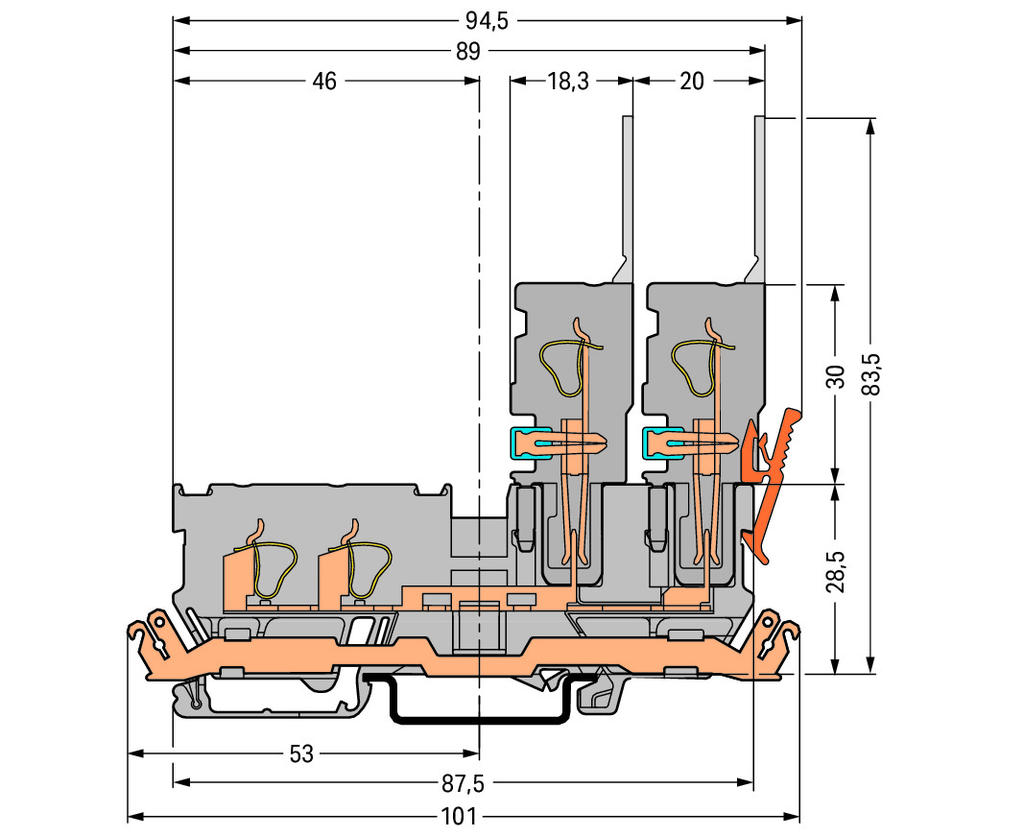

Depth	101 mm / 3.976 inch
Design	horizontal
Fine-stranded conductor	0.08 … 4 mm² / 28 … 12 AWG
Fire load	0.173 MJ
Global Trade Item Number (GTIN)	4044918556071
Height from upper-edge of DIN-35 rail	28.5 mm / 1.122 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center marking
Nominal cross section	4 mm²
Number of levels	1
Product Group	18 (X-COM-System)
Rated current	32 A
Rated impulse voltage (III / 3)	4 kV
Rated voltage (III / 3)	250 V
Solid conductor	0.08 … 4 mm² / 28 … 12 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 Inch
Total number of connection points	2
Total number of potentials	1
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	13.1 g
Width	5 mm / 0.197 inch

系列: 769 (100 从 460)

769211, 769 211
