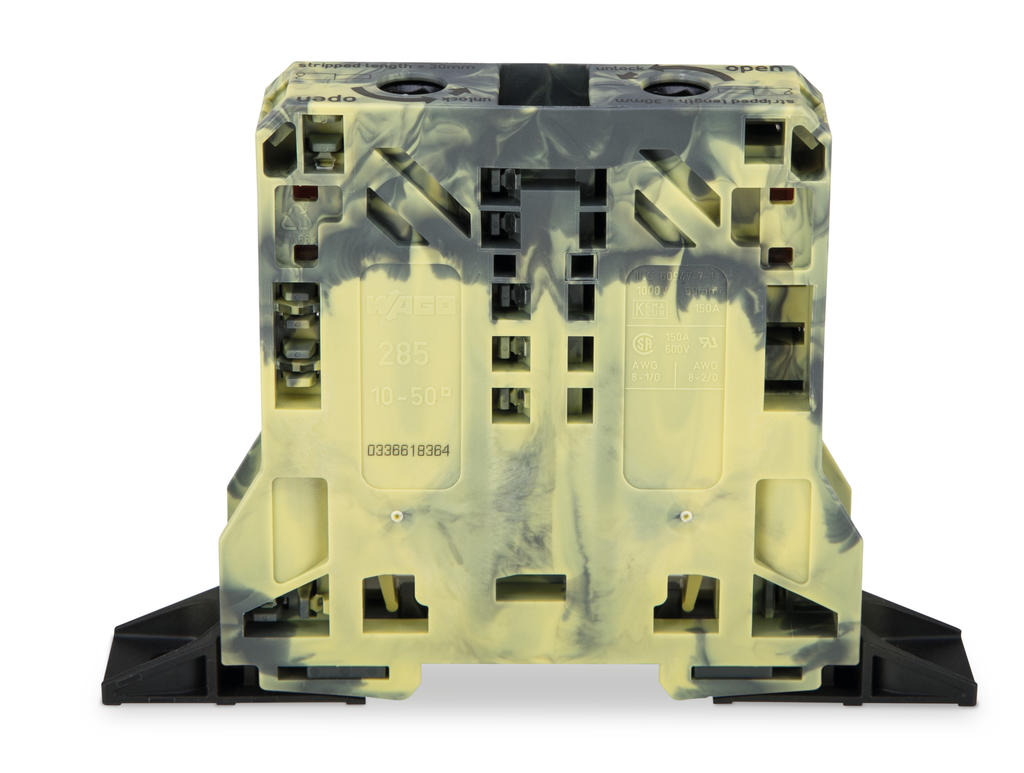

Datasheet Wago 285-147 — 数据表
2芯通过接线端子； 50平方毫米;横向标记槽；带有固定法兰；电源笼夹
价格
参数化
| Actuation type | Operating tool |
| Color | dark gray-yellow |
| Connectable conductor materials | Copper |
| Connection technology | POWER CAGE CLAMP |
| Страна происхождения | PL |
| Depth | 130 mm / 5.118 inch |
| Design | horizontal |
| Fine-stranded conductor | 10 … 70 mm² / 8 … 2/0 AWG |
| Global Trade Item Number (GTIN) | 4055143608336 |
| Height | 94 mm / 3.7 inch |
| Height from the surface | 94 mm / 3.7 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Marking level | Side marking |
| Mounting type | Mounting flange |
| Number of levels | 1 |
| Rated current | 150 A |
| Rated impulse voltage (III / 3) | 8 kV |
| Rated voltage (III / 3) | 1000 V |
| Solid conductor | 10 … 50 mm² / 8 … 1/0 AWG |
| Strip length | 30 mm / 1.18 Inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Weight | 165.07 g |
| Width | 20 mm / 0.787 inch |
模型线
系列: 285 (83)
- 285-1161 285-1163 285-1164 285-1165 285-1167 285-1167/999-950 285-1169 285-1171 285-1175 285-1176 285-1177 285-1178 285-1179 285-1181 285-1184 285-1185 285-1187 285-131 285-132 285-134 285-135 285-136 285-137 285-137/999-950 285-139 285-141 285-144 285-147 285-148 285-150 285-151 285-154 285-157 285-157/999-950 285-159 285-168 285-169 285-170 285-172 285-175 285-181 285-184 285-187 285-188 285-191 285-194 285-195 285-197 285-197/999-950 285-199 285-327 285-337 285-338 285-400 285-401 285-407 285-415 285-416 285-420 285-421 285-427 285-430 285-435 285-440 285-441 285-447 285-448 285-449 285-450 285-495 285-601 285-604 285-607 285-607/999-950 285-634 285-635 285-637 285-637/999-950 285-691 285-935 285-950 285-992 285-995
制造商分类
- Rail / Chassis Terminal blocks
其他名称:
285147, 285 147
