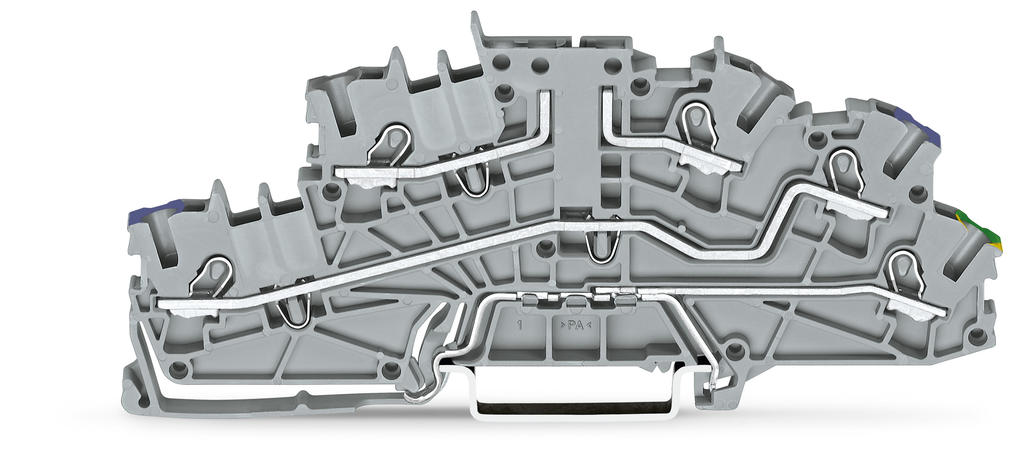

Datasheet Wago 2003-6661 — 数据表
多层安装接线端子； 4平方毫米;载运工具接线端子，不带刀； L / N / PE；推入式笼式夹
价格
参数化
| Actuation type | Push-in Operating tool |
| Color | gray |
| Connectable conductor materials | Copper |
| Connection technology | Push-in CAGE CLAMP® |
| Страна происхождения | CN |
| Depth | 110 mm / 4.331 inch |
| Design | angled |
| Fine-stranded conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.75 mm² / 18 AWG |
| Fire load | 0.309 MJ |
| Global Trade Item Number (GTIN) | 4055143665483 |
| Height from upper-edge of DIN-35 rail | 44.3 mm / 1.744 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Marking level | Center/side marking |
| Nominal cross section | 2.5 mm² |
| Number of levels | 3 |
| Potential marking | L/N/PE |
| Rated current | 10 A |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated impulse voltage (III / 3) 2 | 6 kV |
| Rated voltage (III / 3) | 250 V |
| Rated voltage (III / 3) 2 | 400 V |
| Ratings note | potential - ground |
| Ratings note 2 | potential-potential |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Solid conductor, push-in termination | 0.75 … 4 mm² / 18 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 Inch |
| Total number of connection points | 5 |
| Total number of potentials | 3 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 19.942 g |
| Width | 5.2 mm / 0.205 inch |
模型线
系列: 2003 (29)
制造商分类
- Rail / Chassis Terminal blocks
其他名称:
20036661, 2003 6661
