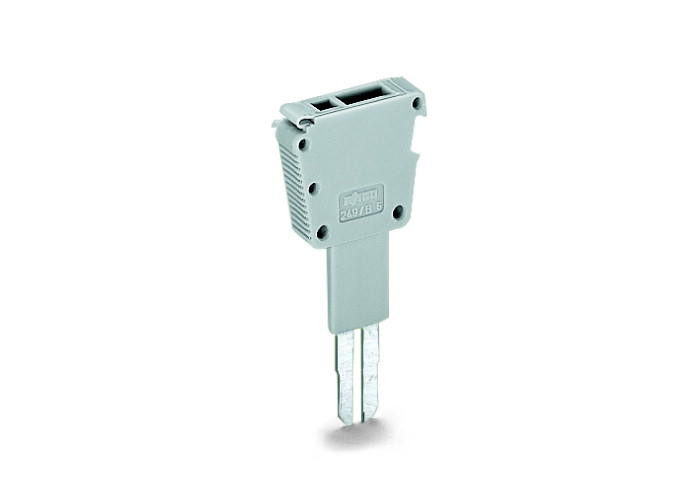

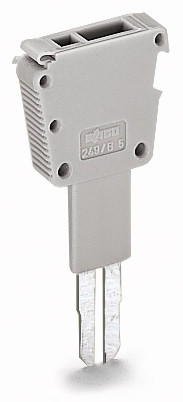

Datasheet Wago 249-106 — 数据表
B型测试插头模块；模块化的
价格
详细说明
参数化
| Color | gray |
| Connection technology | CAGE CLAMP® |
| Страна происхождения | DE |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fire load | 0.032 MJ |
| Global Trade Item Number (GTIN) | 4045454265083 |
| Marking level | Side marking |
| Number of Poles | 1 |
| Product Group | 2 (Terminal Block Accessories) |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Test current | 10 A |
| Test voltage | 630 V |
| Total number of connection points | 1 |
| Total number of potentials | 1 |
| Type of wiring | Front-entry wiring |
| Weight | 2.174 g |
| Width | 5 mm / 0.197 inch |
模型线
系列: 249 (31)
制造商分类
- Rail / Chassis Terminal blocks | Pluggable Connection Systems
其他名称:
249106, 249 106
