Datasheet Wago 2022-112/000-038 — 数据表

制造商	Wago
系列	2022
零件号	2022-112/000-038

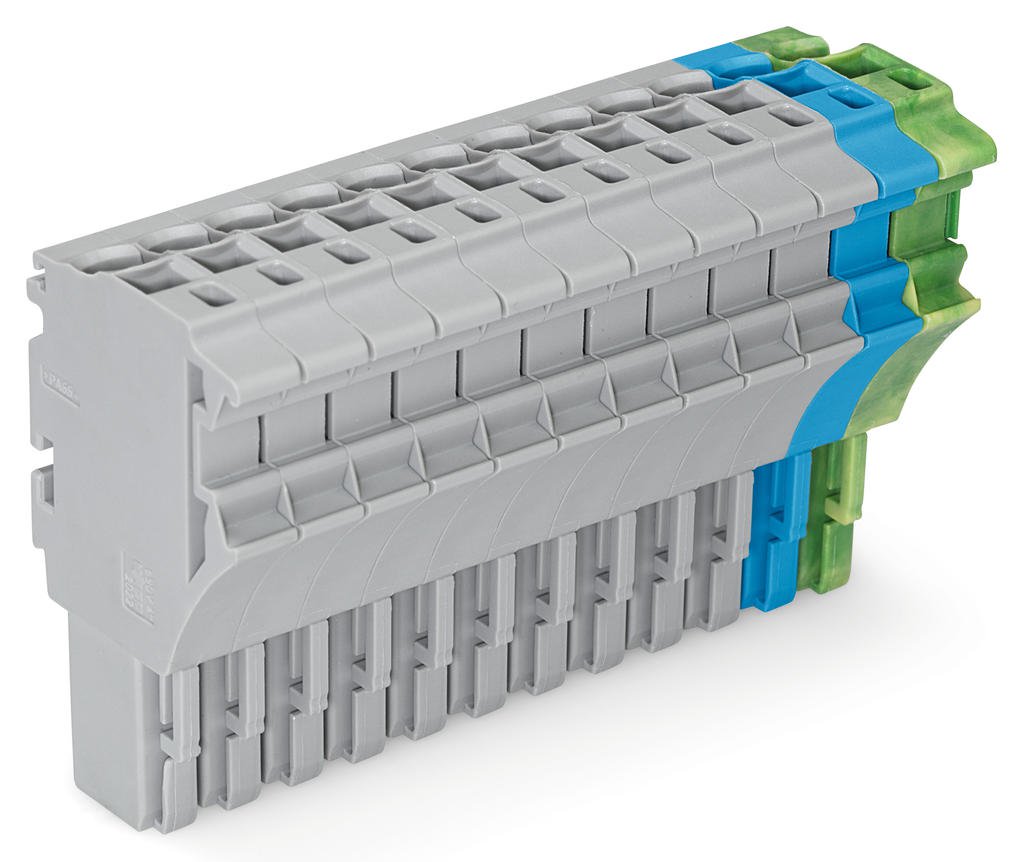

1芯母插头； 2.5平方毫米; 12极

价格

参数化

Actuation type	Operating tool Push-in
Color	gray, blue, green-yellow
Connectable conductor materials	Copper
Connection technology	Push-in CAGE CLAMP®
Connector connection type	for conductors
Contact type (pluggable connector)	Female connector/socket
Страна происхождения	DE
Depth	22.4 mm / 0.882 inch
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG
Fire load	0.643 MJ
Global Trade Item Number (GTIN)	4045454915650
Height	40.5 mm / 1.594 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Side marking
Nominal cross section	2.5 mm²
Number of Poles	12
Product Group	18 (X-COM-System)
Rated current	24 A
Rated current (2)	32 A
Rated impulse voltage (III / 3)	6 kV
Rated voltage (III / 3)	690 V
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	12
Total number of potentials	12
Type of wiring	Front-entry wiring
Weight	39.65 g
Width	62.4 mm / 2.457 inch
