Datasheet Wago 2020-209/000-039 — 数据表

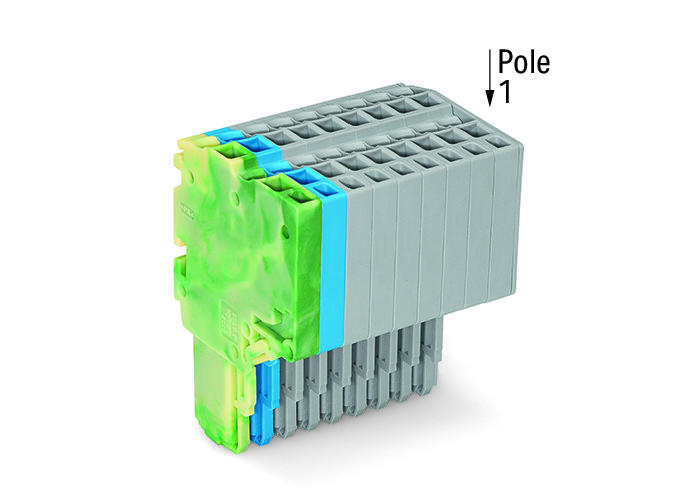

2芯母头连接器； 1.5平方毫米; 9极
价格
详细说明
参数化
| Actuation type | Open Tool Slot |
| Color | green-yellow, blue, gray |
| Connectable conductor materials | Copper |
| Connection technology | Push-in CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact type (pluggable connector) | Female connector/socket |
| Страна происхождения | DE |
| Depth | 25 mm / 0.984 inch |
| Fine-stranded conductor | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.5 mm² / 20 AWG |
| Fire load | 0.411 MJ |
| Global Trade Item Number (GTIN) | 4050821091615 |
| Height | 40.5 mm / 1.594 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Marking level | Side marking |
| Nominal cross section | 1 mm² |
| Number of Poles | 9 |
| Product Group | 18 (X-COM-System) |
| Rated current | 13.5 A |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (III / 3) | 500 V |
| Solid conductor | 0.14 … 1.5 mm² / 24 … 16 AWG |
| Solid conductor, push-in termination | 0.5 … 1.5 mm² / 20 … 16 AWG |
| Strip length | 9 … 11 mm / 0.35 … 0.43 Inch |
| Total number of connection points | 18 |
| Total number of potentials | 9 |
| Type of wiring | Front-entry wiring |
| Weight | 24.68 g |
| Width | 32.2 mm / 1.268 inch |
模型线
系列: 2020 (100 从 263)
- 2020-203/000-036 2020-203/000-037 2020-203/000-038 2020-203/000-039 2020-203/122-000 2020-203/132-000 2020-203/142-000 2020-204 2020-204/000-036 2020-204/000-037 2020-204/000-038 2020-204/000-039 2020-204/124-000 2020-204/133-000 2020-204/143-000 2020-205 2020-205/000-036 2020-205/000-037 2020-205/000-038 2020-205/000-039 2020-205/124-000 2020-205/133-000 2020-205/143-000 2020-206 2020-206/000-036 2020-206/000-037 2020-206/000-038 2020-206/000-039 2020-206/133-000 2020-206/143-000 2020-207 2020-207/000-036 2020-207/000-037 2020-207/000-038 2020-207/000-039 2020-207/124-000 2020-207/134-000 2020-207/144-000 2020-208 2020-208/000-036 2020-208/000-037 2020-208/000-038 2020-208/000-039 2020-208/124-000 2020-208/134-000 2020-208/144-000 2020-209 2020-209/000-036 2020-209/000-037 2020-209/000-038 2020-209/000-039 2020-209/124-000 2020-209/134-000 2020-209/144-000 2020-210 2020-210/000-036 2020-210/000-037 2020-210/000-038 2020-210/000-039 2020-210/125-000 2020-210/135-000 2020-210/145-000 2020-211 2020-211/000-036 2020-211/000-037 2020-211/000-038 2020-211/000-039 2020-211/125-000 2020-211/135-000 2020-211/145-000 2020-212 2020-212/000-036 2020-212/000-037 2020-212/000-038 2020-212/000-039 2020-212/125-000 2020-212/135-000 2020-212/145-000 2020-213 2020-213/000-036 2020-213/000-037 2020-213/000-038 2020-213/000-039 2020-213/125-000 2020-213/135-000 2020-213/145-000 2020-214 2020-214/000-036 2020-214/000-037 2020-214/000-038 2020-214/000-039 2020-214/125-000 2020-214/135-000 2020-214/145-000 2020-215 2020-215/000-036 2020-215/000-037 2020-215/000-038 2020-215/000-039 2020-215/125-000
制造商分类
- Rail / Chassis Terminal blocks | Pluggable Connection Systems
其他名称:
2020209/000039, 2020 209/000 039
