Datasheet Wago 2020-205/000-039 — 数据表

制造商Wago
系列2020
零件号2020-205/000-039
Datasheet Wago 2020-205/000-039

2芯母头连接器; 1.5平方毫米; 5极

价格

详细说明

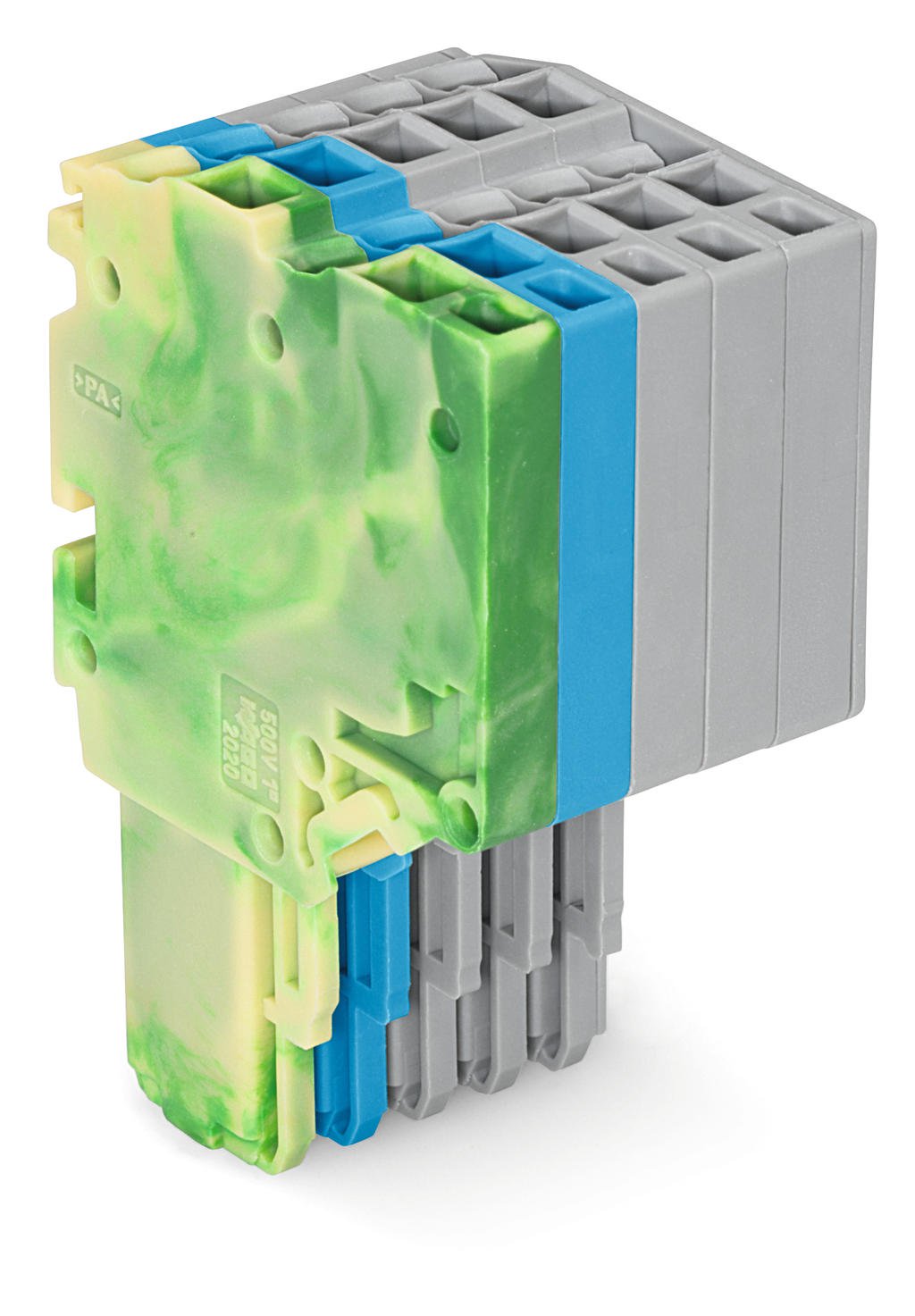

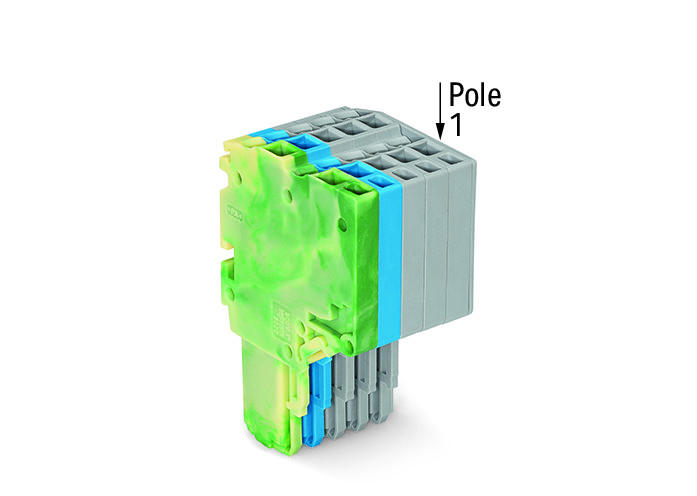

Wago 2020-205/000-039

参数化

Actuation typeOpen Tool Slot
Colorgreen-yellow, blue, gray
Connectable conductor materialsCopper
Connection technologyPush-in CAGE CLAMP®
Connector connection typefor conductors
Contact type (pluggable connector)Female connector/socket
Страна происхожденияDE
Depth25 mm / 0.984 inch
Fine-stranded conductor0.14 … 1.5 mm² / 24 … 16 AWG
Fine-stranded conductor with ferrule, push-in termination, from0.5 mm² / 20 AWG
Fire load0.235 MJ
Global Trade Item Number (GTIN)4050821091578
Height40.5 mm / 1.594 inch
Insulating materialPolyamide 66 (PA 66)
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking levelSide marking
Nominal cross section1 mm²
Number of Poles5
Product Group18 (X-COM-System)
Rated current13.5 A
Rated impulse voltage (III / 3)6 kV
Rated voltage (III / 3)500 V
Solid conductor0.14 … 1.5 mm² / 24 … 16 AWG
Solid conductor, push-in termination0.5 … 1.5 mm² / 20 … 16 AWG
Strip length9 … 11 mm / 0.35 … 0.43 Inch
Total number of connection points10
Total number of potentials5
Type of wiringFront-entry wiring
Weight14.06 g
Width18.2 mm / 0.717 inch

模型线

制造商分类

  • Rail / Chassis Terminal blocks | Pluggable Connection Systems

其他名称:

2020205/000039, 2020 205/000 039
