Datasheet Wago 723-605/114-000 — 数据表

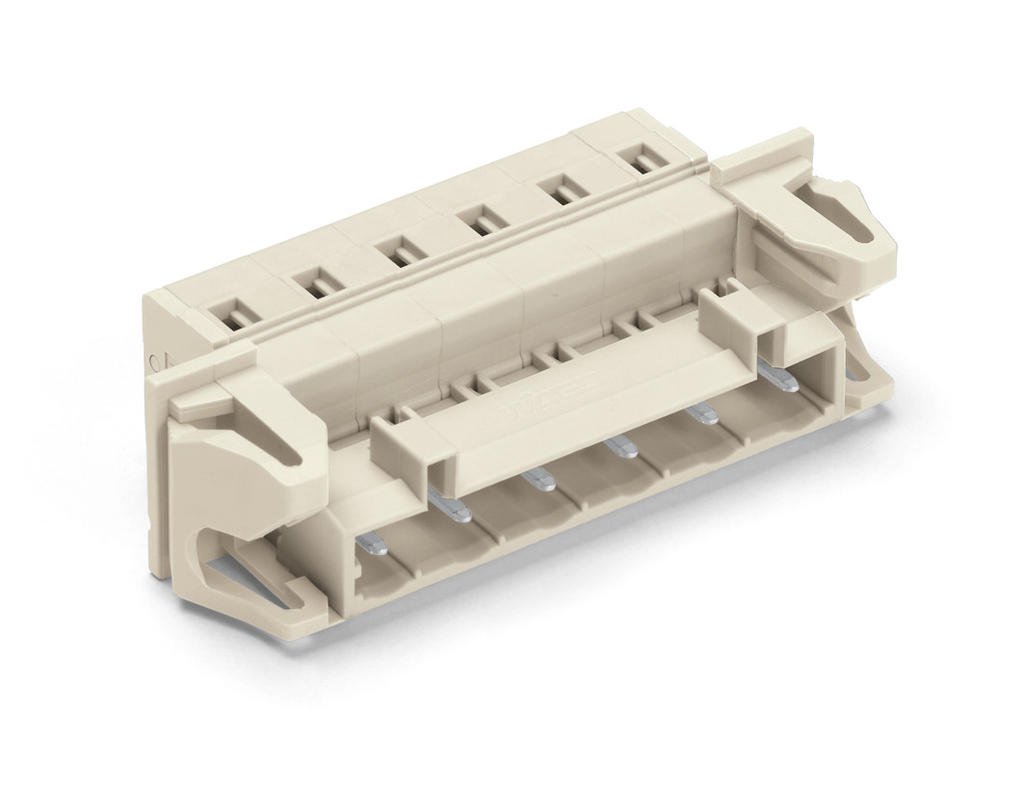

1芯公连接器； 100％防止误插；卡扣法兰； 2.5平方毫米;引脚间距7.5毫米; 5极
价格
详细说明
参数化
| Actuation type | Operating tool |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Color | light gray |
| Connection technology | CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Страна происхождения | DE |

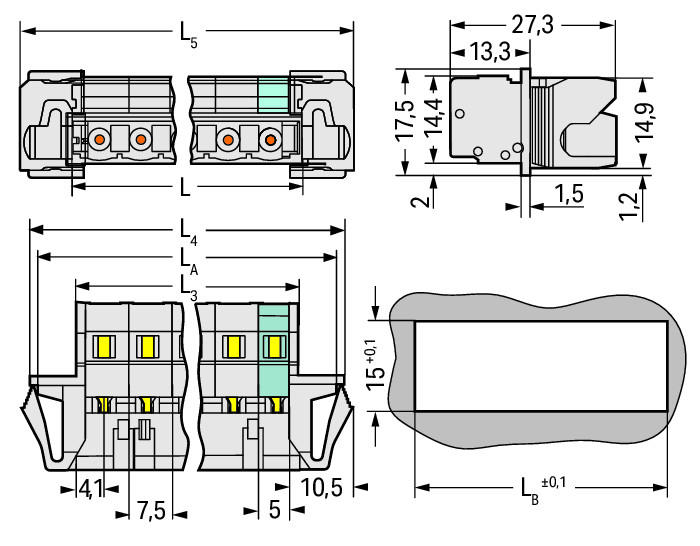

| Depth | 27.5 mm / 1.083 inch |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² |
| Fire load | 0.239 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4050821280484 |
| Gehäuseblechstärke | 0.5 … 2.5 mm / 0.02 … 0.098 inch |
| Height | 17.5 mm / 0.689 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Material group | I |
| Mismating protection | Yes |
| Mounting type | Snap-in |
| Number of Poles | 5 |
| Number of connection types | 1 |
| Number of levels | 1 |
| Pin spacing | 7.5 mm (0.295 inch) |
| Product Group | 3 (Multi Conn. System) |
| Rated current | 12 A |
| Rated impulse voltage (II / 2) | 6 kV |
| Rated impulse voltage (III / 2) | 6 kV |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (II / 2) | 1000 V |
| Rated voltage (III / 2) | 630 V |
| Rated voltage (III / 3) | 500 V |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Total number of connection points | 5 |
| Total number of potentials | 5 |
| Type of mounting | Feed-through mounting |
| Weight | 11.08 g |
| Width | 56 mm / 2.205 inch |
模型线
系列: 723 (61)
