Datasheet Wago 735 — 数据表

制造商	Wago
系列	735

价格

参数化

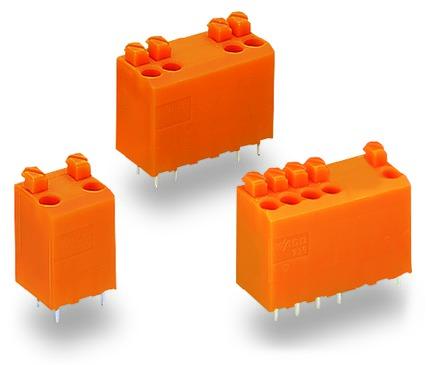

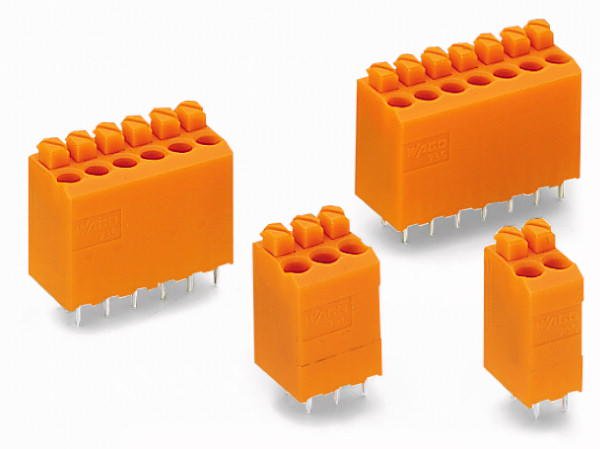

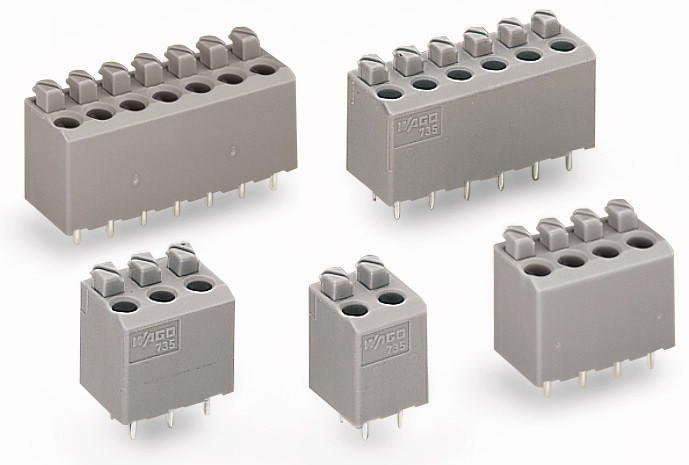

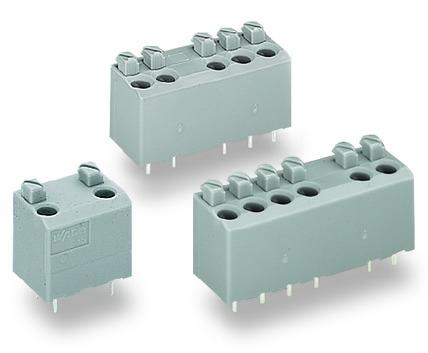

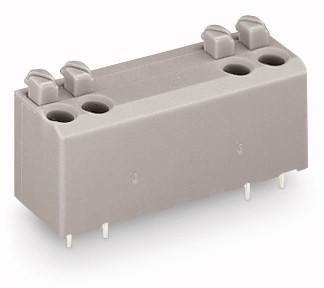

Parameters / Models	735-122	735-123	735-123/001-000	735-126	735-126/001-000	735-127	735-127/001-000	735-302	735-303	735-303/001-000	735-304	735-306	735-306/001-000	735-306/003-000	735-307	735-307/001-000	735-307/002-000	735-500
Actuation type	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button	Push-button
Clamping spring material	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)	Chrome nickel spring steel (CrNi)
Color	orange	orange	orange	orange	orange	orange	orange	gray	gray	gray	gray	gray	gray	gray	gray	gray	gray
Conductor entry angle to the PCB, °	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90	90
Connection technology	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®
Contact material	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)	Electrolytic copper (Ecu)
Contact plating	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated	tin-plated
Страна происхождения	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	CH	DE
Depth	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch	10.8 mm / 0.425 inch
Drilled hole diameter (tolerance), mm	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)	1(+ 0.1)
Fine-stranded conductor with ferrule with plastic collar	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²
Fine-stranded conductor with ferrule without plastic collar	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²	0.5 … 1 mm²
Fire load, MJ	0.021	0.032	0.03	0.061	0.06	0.073	0.07	0.027	0.04	0.039	0.053	0.108	0.068	0.076	0.09	0.089	0.057
Flammability class per UL94	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0	V0
Global Trade Item Number (GTIN)	4044918792561	4044918792615	4044918792646	4044918792752	4044918792783	4044918792844	4044918792868	4044918792929	4044918792967	4044918792998	4044918793070	4044918793124	4044918793148	4044918793186	4044918793254	4044918793261	4044918793292	4050821226932
Height	21.9 mm / 0.862 inch	21.9 mm / 0.862 inch	21.9 mm / 0.862 inch	21.9 mm / 0.862 inch	21.9 mm / 0.862 inch	21.9 mm / 0.862 inch	21.9 mm / 0.862 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch	19.4 mm / 0.764 inch
Height from the surface	18.4 mm / 0.724 inch	18.4 mm / 0.724 inch	18.4 mm / 0.724 inch	18.4 mm / 0.724 inch	18.4 mm / 0.724 inch	18.4 mm / 0.724 inch	18.4 mm / 0.724 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch	15.9 mm / 0.626 inch
Insulating material	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C	-60 … +105 °C

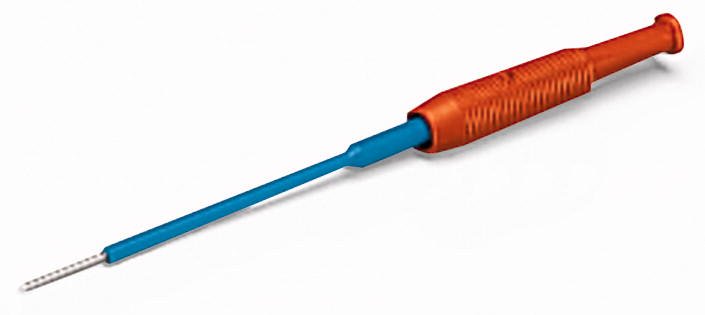

Main product function																		Testing accessories
Material group	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I	I
Number of Poles	2	3	2	6	4	7	5	2	3	2	4	6	4	5	7	6	4
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of levels	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
Number of solder pins per potential	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2	2
PCB contact	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT	THT
Pin spacing	3.81 mm / 0.15 inch	3.81 mm / 0.15 inch	3.81 mm / 0.15 inch	3.81 mm / 0.15 inch	3.81 mm / 0.15 inch	3.81 mm / 0.15 inch	3.81 mm / 0.15 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch	5 mm / 0.197 inch
Product Group	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)	4 (Printed Circuit)
Rated current, A	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10
Rated impulse voltage (II / 2), kV	4	4	6	4	4	4	4	4	4	8	4	4	4	4	4	4	4
Rated impulse voltage (III / 2), kV	4	4	6	4	4	4	4	4	4	8	4	4	4	4	4	4	4
Rated impulse voltage (III / 3), kV	4	4	6	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated voltage (II / 2), V	630	630	1000	630	630	630	630	630	630	1000	630	630	630	630	630	630	630
Rated voltage (III / 2), V	320	320	630	320	320	320	320	320	320	630	320	320	320	320	320	320	320
Rated voltage (III / 3), V	250	250	500	250	250	250	250	320	320	320	320	320	320	320	320	320	320
Solder pin arrangement	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line	over the entire terminal strip, in line
Solder pin dimensions	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm	0.4 x 0.9 mm
Solder pin length, mm	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
Solid conductor	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch
Total number of connection points	2	3	2	6	4	7	5	2	3	2	4	6	4	5	7	6	4
Total number of potentials	2	3	2	6	4	7	5	2	3	2	4	6	4	5	7	6	4
Weight, g	1.611	2.394	1.911	4.723	3.789	5.554	4.566	1.704	2.534	2.093	3.357	5.991	3.867	4.521	5.784	5.353	3.507	3.1
Width	7.62 mm / 0.3 inch	11.43 mm / 0.45 inch	11.43 mm / 0.45 inch	22.86 mm / 0.9 inch	22.56 mm / 0.888 inch	26.67 mm / 1.05 inch	26.67 mm / 1.05 inch	10 mm / 0.394 inch	15 mm / 0.591 inch	15 mm / 0.591 inch	20 mm / 0.787 inch	30 mm / 1.181 inch	30 mm / 1.181 inch	30 mm / 1.181 inch	35 mm / 1.378 inch	35 mm / 1.378 inch	35 mm / 1.378 inch

模型线

制造商分类

• PCB Interconnect
