Datasheet Wago 890-835 — 数据表

PCB插头；直行; 5极鳕鱼一个

价格

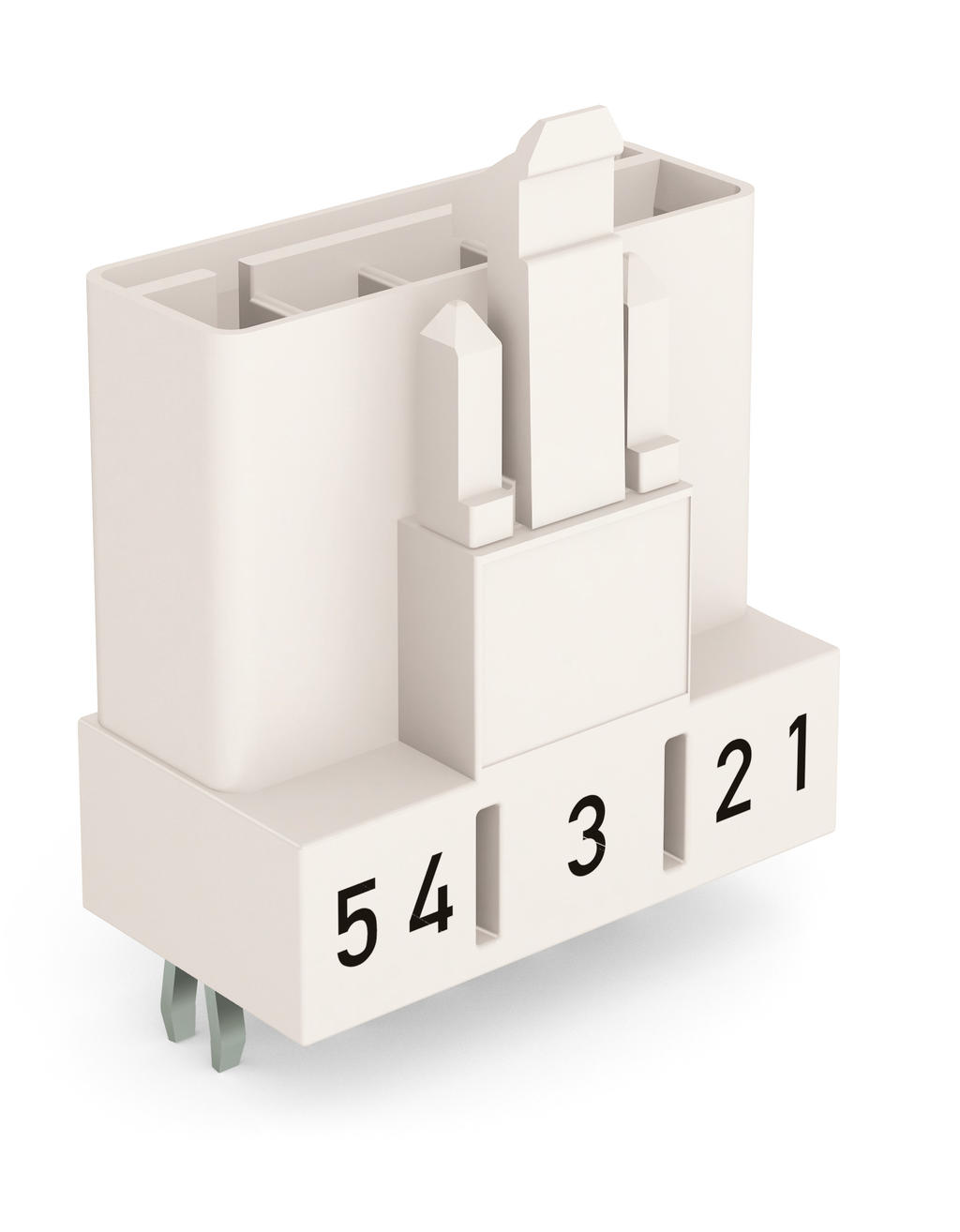

Wago 890-835

Coding	A
Color	white
Connector connection type	for PCBs
Contact material	Copper or copper alloy, surface-treated
Contact type (pluggable connector)	Male connector/plug
Страна происхождения	DE
Degree of protection	IP20
Depth	12.2 mm / 0.48 inch
Design	straight
Drilled hole diameter (tolerance)	1.3(+ 0.1 ... - 0.1) mm
Fire load	0.091 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4050821695608
Height	31.9 mm / 1.256 inch
Height from the surface	28.4 mm / 1.118 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Locking lever	yes
Locking of plug-in connection	locking lever
Marking	N ⏚ 1 2 3
Mating direction to the PCB	90 °
Mating force of a plug-in connection	approx. 20 … 70 N (depending on pole number)
Mismating protection	Yes
Number of Poles	5
Number of levels	1
Number of solder pins per potential	2
PCB contact	THT
Pin spacing	4.4 mm (0.173 inch)
Potential marking	N ⏚ 1 2 3
Product Group	20 (WINSTA)
Rated current	13 A
Rated impulse voltage (III / 3)	4 kV
Rated voltage (III / 3)	250 V
Retention force of a plug-in connection	when locked: > 80N
Solder pin arrangement	2 in-line solder pins/pole
Solder pin dimensions	1 x 0.8 mm
Solder pin length	3.5 mm
Surrounding air (operating) temperature	-35 … 85 °C
Total number of potentials	5
Unmating force of a plug-in connection	when unlocked: approx. 20 … 70 N (depending on pole number)
Weight	4.777 g
Width	23.6 mm / 0.929 inch

系列: 890 (100 从 384)

890835, 890 835
