Datasheet Wago 730-103 — 数据表
插座;自动切断带电导体； 3极
价格
详细说明
参数化
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Color | orange |
| Connection technology | IDC |
| Connector connection type | for conductors |
| Contact material | Brass |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Female connector/socket |
| Страна происхождения | CN |

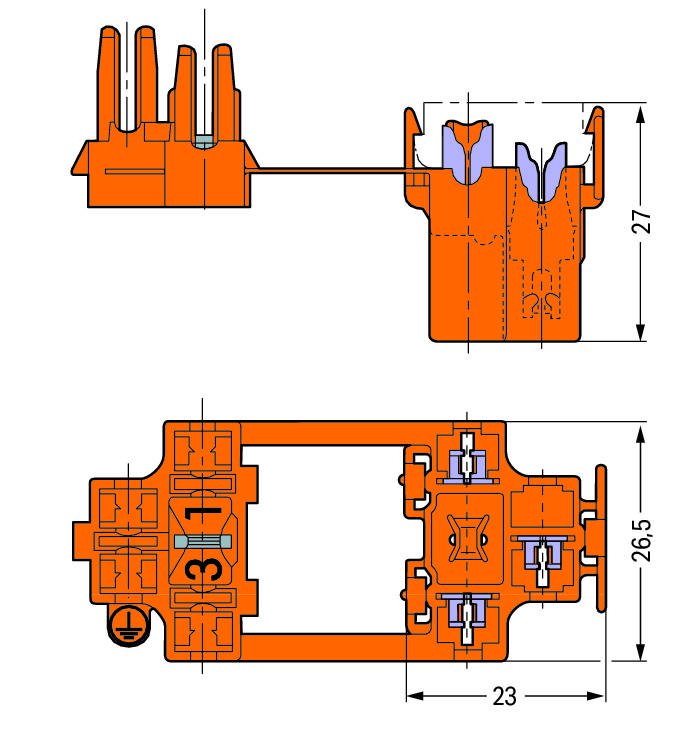

| Depth | 23 mm / 0.906 inch |
| Fine-stranded conductor | 0.75 … 1.5 mm² / 18 … 16 AWG |
| Fire load | 0.169 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4050821429715 |
| Height | 27 mm / 1.063 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +85 °C |
| Material group | I |
| Number of Poles | 3 |
| Number of connection types | 1 |
| Number of levels | 1 |
| Product Group | 13 (Misc. Multi Conn. System) |
| Rated current | 10 A |
| Rated impulse voltage (II / 2) | 6 kV |
| Rated impulse voltage (III / 2) | 6 kV |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (II / 2) | 1000 V |
| Rated voltage (III / 2) | 630 V |
| Rated voltage (III / 3) | 500 V |
| Total number of potentials | 3 |
| Weight | 7.064 g |
| Width | 26.5 mm / 1.043 inch |
模型线
制造商分类
- Pluggable Connection Systems
其他名称:
730103, 730 103
