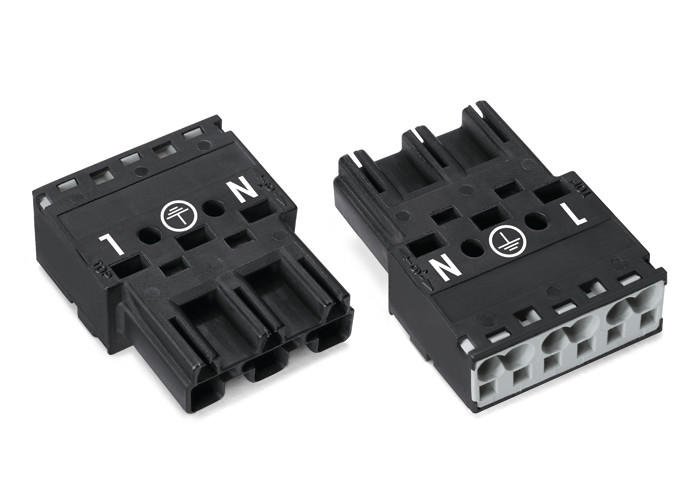

Datasheet Wago 770-213 — 数据表
插头; 3极鳕鱼一个
价格
详细说明
参数化
| Actuation type | Operating tool Push-in |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Coding | A |
| Color | black |
| Connection technology | Push-in CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact material | Copper or copper alloy, surface-treated |
| Contact type (pluggable connector) | Male connector/plug |
| Страна происхождения | DE |
| Degree of protection | IP20 |
| Depth | 37.5 mm / 1.476 inch |
| Fine-stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 1.5 mm² / 20 … 16 AWG |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 2.5 mm² / 20 … 14 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 1.5 mm² / 16 AWG |
| Fire load | 0.194 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4044918254137 |
| Ground function | with preceding GND contact |
| Height | 12.9 mm / 0.508 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Locking lever | no |
| Locking of plug-in connection | locking lever |
| Marking | L ⏚ N |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Mismating protection | Yes |
| Nominal cross section | 4 mm² |
| Note (strip length) | see also packaging or instructions |
| Number of Poles | 3 |
| Pin spacing | 10 mm (0.394 inch) |
| Potential marking | L ⏚ N |
| Product Group | 20 (WINSTA) |
| Rated current | 25 A |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (III / 3) | 250 V |
| Retention force of a plug-in connection | when locked: > 80N |
| Solid conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Solid conductor, push-in termination | 1.5 … 4 mm² / 16 … 12 AWG |
| Stranded conductor | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Strip length | 9 mm / 0.35 Inch |
| Surrounding air (operating) temperature | -35 … 85 °C |
| Total number of connection points | 6 |
| Total number of potentials | 3 |
| Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
| Weight | 9.896 g |
| Width | 30 mm / 1.181 inch |
模型线
系列: 770 (100 从 608)
- 770-1681 770-1682 770-1683 770-1684 770-1686 770-1701 770-1702 770-1703 770-1704 770-1705 770-1706 770-1712 770-1713 770-1714 770-1715 770-1716 770-1731 770-1732 770-1733 770-1734 770-1735 770-1736 770-1741 770-1742 770-1743 770-1743/080-000 770-1744 770-1745 770-1746 770-1746/080-000 770-1751 770-1752 770-1753 770-1761 770-1762 770-1763 770-1781 770-1782 770-1783 770-1947 770-201 770-202 770-203 770-203/035-000 770-204 770-205 770-2105 770-2115 770-2115/007-000 770-212 770-213 770-213/002-000 770-213/035-000 770-214 770-215 770-221 770-222 770-223 770-223/035-050 770-224 770-225 770-2303 770-2305 770-2313 770-2313/007-000 770-2315 770-232 770-2324 770-2325 770-233 770-233/002-000 770-233/035-050 770-2334 770-2334/007-000 770-2335 770-2335/007-000 770-234 770-2343 770-235 770-2353 770-2363 770-242 770-242/060-000 770-243 770-243/060-000 770-243/062-000 770-243/081-000 770-244 770-244/060-000 770-244/062-000 770-244/064-000 770-244/081-000 770-245 770-245/060-000 770-245/062-000 770-245/064-000 770-252 770-252/060-000 770-253 770-253/060-000
制造商分类
- Pluggable Connection Systems
其他名称:
770213, 770 213
