Datasheet Wago 770-1661 — 数据表

h分布连接器； 3极鳕鱼B; 1个输入; 2个输出;一侧输出； 2个锁定杆

价格

Wago 770-1661

Coding	B
Color	gray
Contact material	Copper or copper alloy, surface-treated
Contact type (pluggable connector)	Socket/plug
Страна происхождения	DE
Degree of protection	IP20

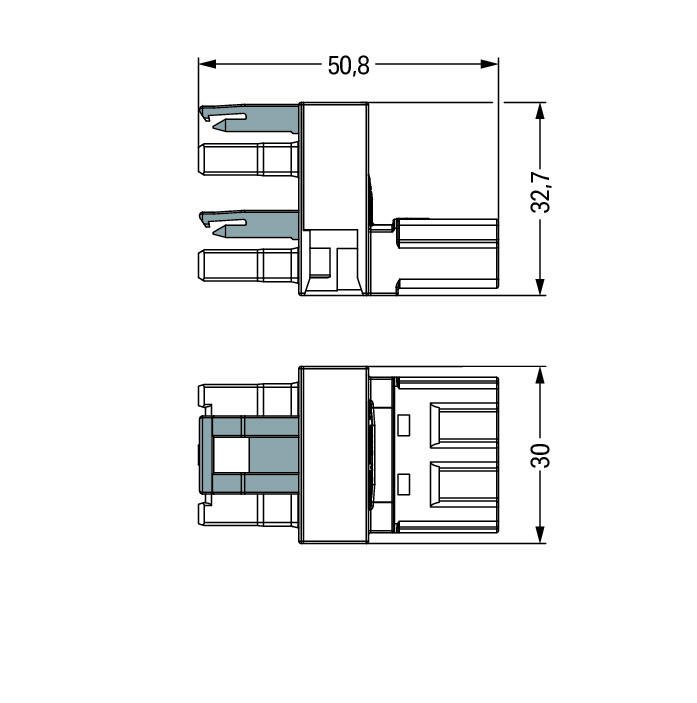

Depth	51 mm / 2.008 inch
Fire load	0.402 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4050821685814
Height	32.7 mm / 1.287 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Locking lever	yes
Locking of plug-in connection	locking lever
Marking	1 2 3
Mating force of a plug-in connection	approx. 20 … 70 N (depending on pole number)
Number of Poles	3
Pin spacing	10 mm (0.394 inch)
Potential marking	1 2 3
Product Group	20 (WINSTA)
Rated current	25 A
Rated impulse voltage (III / 3)	4 kV
Rated voltage (III / 3)	250 V
Retention force of a plug-in connection	when locked: > 80N
Surrounding air (operating) temperature	-35 … 85 °C
Total number of potentials	3
Type of distribution connector	h-distribution connector, unidirectional
Unmating force of a plug-in connection	when unlocked: approx. 20 … 70 N (depending on pole number)
Weight	23.228 g
Width	30 mm / 1.181 inch

系列: 770 (100 从 608)

7701661, 770 1661
