Datasheet Wago 772-263 — 数据表
分接模块；具有相位选择； 3极用于WINSTA MIDI连接器和分配连接器；电源L2上的位置;编码A
价格
详细说明
参数化
| Actuation type | Operating tool |
| Coding | A |
| Color | black |
| Connection technology | IDC |
| Contact material | Copper or copper alloy, surface-treated |
| Страна происхождения | DE |
| Degree of protection | IP20 |

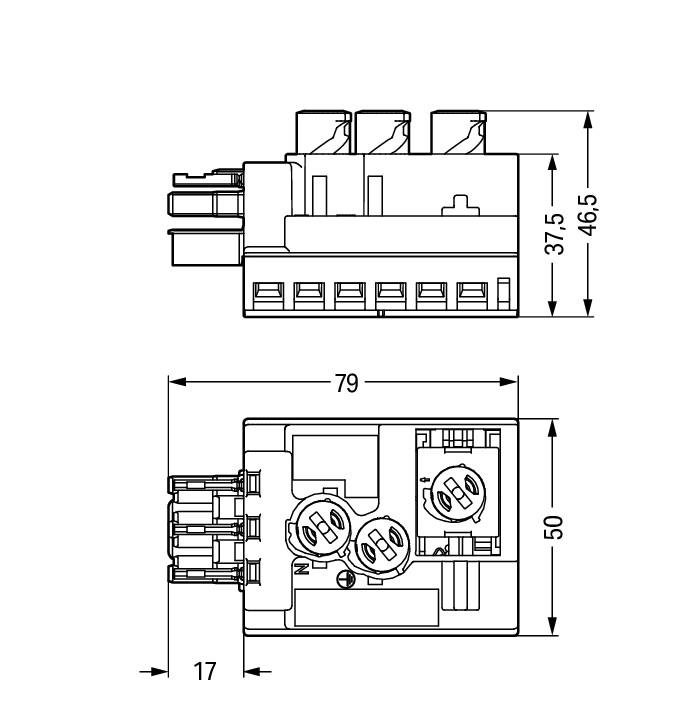

| Depth | 79 mm / 3.11 inch |
| Fire load | 1.843 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4045454062019 |
| Height | 46.5 mm / 1.831 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Locking of plug-in connection | locking lever |
| Marking | L ⏚ N |
| Mating force of a plug-in connection | approx. 30–70N (depending on number of poles) |
| Mismating protection | Yes |
| Number of Poles | 3 |
| Potential marking | L ⏚ N |
| Product Group | 20 (WINSTA) |
| Rated current | 25 A |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (III / 3) | 400 V |
| Surrounding air (operating) temperature | -35 … 85 °C |
| Total number of potentials | 3 |
| Unmating force of a plug-in connection | when unlocked: approx. 15–20N |
| Weight | 70.052 g |
| Width | 49 mm / 1.929 inch |
模型线
系列: 772 (12)
制造商分类
- Pluggable Connection Systems
其他名称:
772263, 772 263
