Datasheet Wago 890-606 — 数据表

T型分布连接器； 3极鳕鱼一个; 1个输入; 2个输出; 2个锁定杆

价格

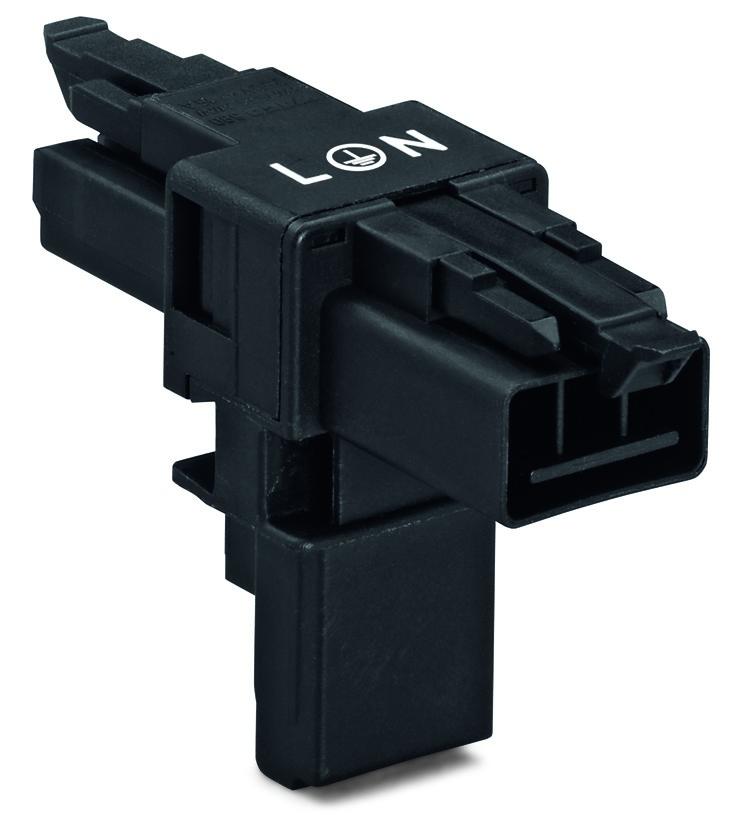

Wago 890-606

Coding	A
Color	black
Contact material	Copper or copper alloy, surface-treated
Contact type (pluggable connector)	Socket/plug
Страна происхождения	DE
Degree of protection	IP20

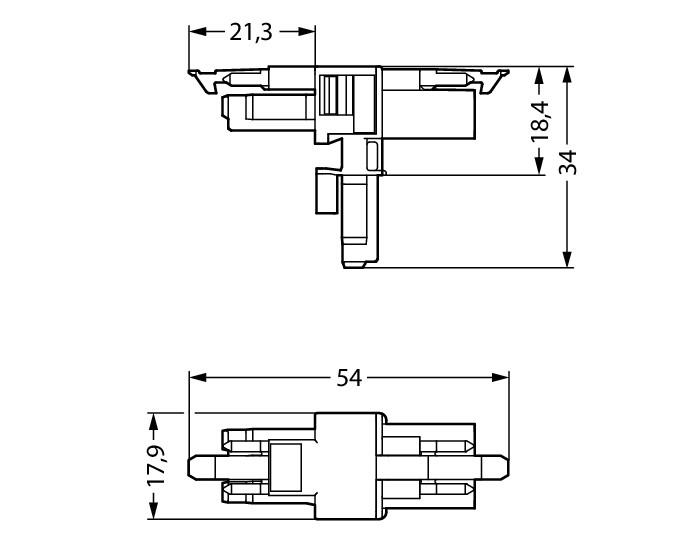

Depth	53.9 mm / 2.122 inch
Fire load	0.158 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4045454490485
Ground function	with preceding GND contact
Height	39.65 mm / 1.561 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Locking lever	yes
Locking of plug-in connection	locking lever
Marking	L ⏚ N
Mating force of a plug-in connection	approx. 20 … 70 N (depending on pole number)
Mismating protection	Yes
Number of Poles	3
Pin spacing	4.4 mm (0.173 inch)
Potential marking	L ⏚ N
Product Group	20 (WINSTA)
Rated current	16 A
Rated impulse voltage (III / 3)	4 kV
Rated voltage (III / 3)	250 V
Retention force of a plug-in connection	when locked: > 80N
Surrounding air (operating) temperature	-35 … 85 °C
Total number of potentials	3
Type of distribution connector	T-distribution connector
Unmating force of a plug-in connection	when unlocked: approx. 20 … 70 N (depending on pole number)
Weight	7.969 g
Width	17.9 mm / 0.705 inch

系列: 890 (100 从 384)

890606, 890 606
