Datasheet Wago 890-1662 — 数据表

h分布连接器； 3极鳕鱼B; 1个输入; 2个输出;一侧输出； 2个锁定杆

价格

Wago 890-1662

Coding	B
Color	light green
Contact material	Copper or copper alloy, surface-treated
Contact type (pluggable connector)	Socket/plug
Страна происхождения	DE
Degree of protection	IP20

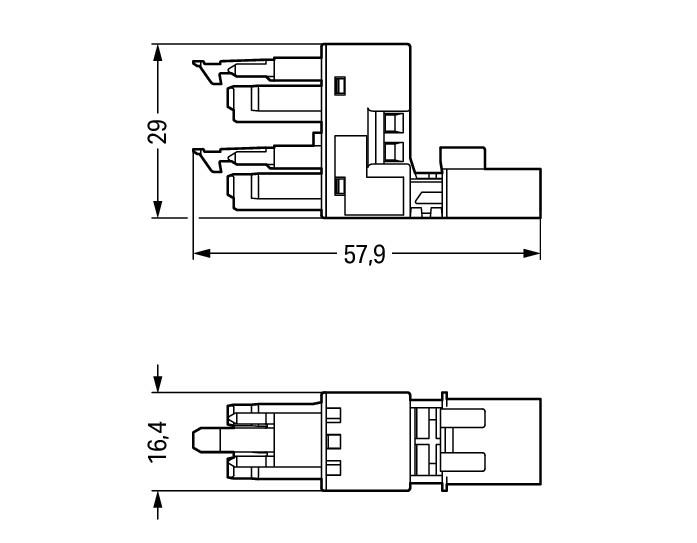

Depth	57.85 mm / 2.278 inch
Fire load	0.239 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4050821530763
Height	29 mm / 1.142 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Locking lever	yes
Locking of plug-in connection	locking lever
Marking	1 2 3
Mating force of a plug-in connection	approx. 20 … 70 N (depending on pole number)
Number of Poles	3
Pin spacing	4.4 mm (0.173 inch)
Potential marking	1 2 3
Product Group	20 (WINSTA)
Rated current	16 A
Rated impulse voltage (III / 3)	4 kV
Rated voltage (III / 3)	250 V
Retention force of a plug-in connection	when locked: > 80N
Surrounding air (operating) temperature	-35 … 85 °C
Total number of potentials	3
Type of distribution connector	h-distribution connector, unidirectional
Unmating force of a plug-in connection	when unlocked: approx. 20 … 70 N (depending on pole number)
Weight	13.443 g
Width	16.4 mm / 0.646 inch

系列: 890 (100 从 384)

8901662, 890 1662
