Datasheet Wago 896-232 — 数据表
分接模块；带螺纹连接；用于3 x 2.5mm²扁平电缆；拧紧扭矩0.7 nm;菲利普斯号1把螺丝刀
价格
详细说明
参数化
| Actuation type | Operating tool |
| Color | gray |
| Connection technology | Screw clamp connection |
| Connection technology 2 | IDC connection |
| Contact material | Copper or copper alloy, surface-treated |
| Страна происхождения | CH |
| Cross section of single conductor | 2.5 mm² |
| Degree of protection | IP20 |

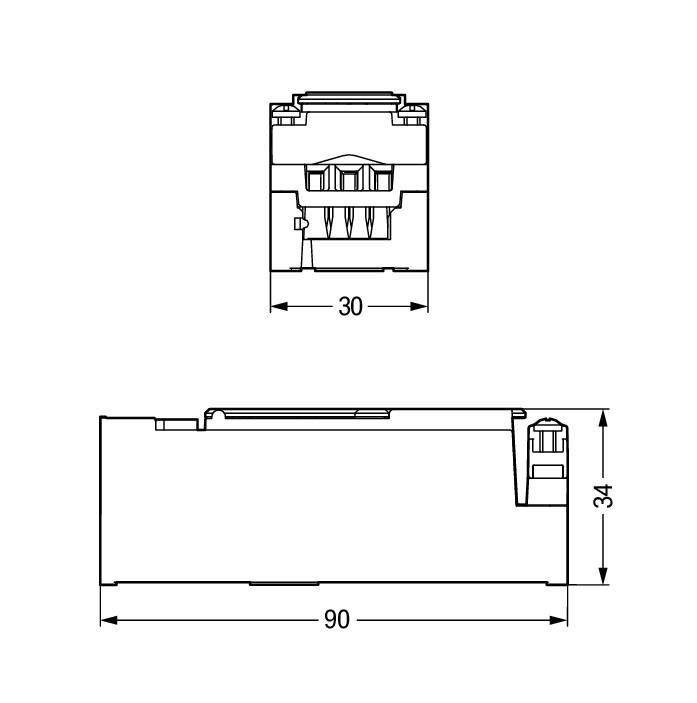

| Depth | 90 mm / 3.543 inch |
| Fire load | 1.5 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4045454004217 |
| Height | 34 mm / 1.339 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Mating force of a plug-in connection | approx. 30–70N (depending on number of poles) |
| Mismating protection | Yes |
| Product Group | 20 (WINSTA) |
| Rated current | 24 A |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (III / 3) | 250 V |
| Surrounding air (operating) temperature | -35 … 85 °C |
| Total number of connection points | 3 |
| Total number of potentials | 3 |
| Unmating force of a plug-in connection | when unlocked: approx. 15–20N |
| Weight | 90 g |
| Width | 30 mm / 1.181 inch |
模型线
制造商分类
- Pluggable Connection Systems
其他名称:
896232, 896 232
