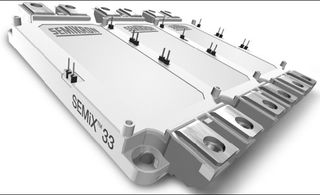

Datasheet SEMIX 353GD176HDC - Semikron IGBT MODULE, 1700 V, 6 PACK — 数据表

详细说明

Manufacturer: Semikron

Description: IGBT MODULE, 1700 V, 6 PACK

Application Note

Docket:
SEMiX® - Technical Explanations
SEMiX
®
IGBT Modules & Bridge Rectifier Family Technical Explanations
Version 2.0 / January 2008 Christian Daucher

Specifications:

• Av Current Ic: 380 A
• Collector Emitter Voltage V(br)ceo: 1.7 V
• Collector Emitter Voltage Vces: 2.45 V
• Current Ic Continuous a Max: 380 A
• Current Ic Continuous b Max: 270 A
• Current Temperature: 25°C
• DC Collector Current: 365 A
• External Depth: 150 mm
• External Width: 162 mm
• Fixing Centres: 50 mm
• Fixing Hole Diameter: 5.5 mm
• Mounting Type: Screw
• Number of Pins: 29
• Number of Transistors: 6
• Operating Temperature Range: -40°C to +150°C
• Package / Case: SEMiX 33c
• Pulsed Current Icm: 380 A
• Rise Time: 75 ns
• SMD Marking: SEMiX 33c
• Transistor Case Style: SEMiX 33c
• Transistor Polarity: N Channel
• Transistor Type:
• Voltage Vces: 1700 V
• Voltage: 1700 V

RoHS: Yes
