Manufacturer: Maxim

Description: FUEL GAUGE STANDALONE OCV, TDFN-10

Download Data Sheet

Docket:
DS2786
Standalone OCV-Based Fuel Gauge
www.maxim-ic.com
GENERAL DESCRIPTION
The DS2786 estimates available capacity for rechargeable Li-Ion and Li-Ion Polymer batteries based on the cell voltage in the open-circuit state following a relaxation period.

The open-circuit voltage (OCV) is used to determine relative cell capacity based on a lookup table stored in the IC. This capability makes accurate capacity information available immediately after a battery pack is inserted. During periods of moderate to high rate discharging, which preclude OCV measurements, the DS2786 uses coulomb counting as a secondary means of estimating relative capacity. Remaining capacity is reported in percent, along with cell voltage, current and temperature information. Cell characteristics and application parameters used in the calculations are stored in on-chip EEPROM. The DS2786 is intended for use on the host side of portable devices, though it can also be mounted within a battery pack. Measurement and est

Specifications:

• Base Number: 2786
• Battery IC Case Style: TDFN
• Battery Management Function: Fuel Gauge
• Battery Type: Li-Ion / Li-Polymer
• Control Interface: Serial, 2 Wire
• Input Voltage Max: 5.5 V
• Interface: 2-Wire, Serial, I2C
• Mounting Type: SMD
• Number of Pins: 10
• Number of Series Cells: 3
• Operating Temperature Range: -20°C to +70°C

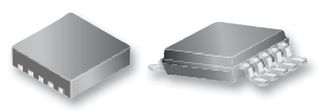

• Package / Case: TDFN
• Supply Voltage Range: 2.5 V to 4.5 V
• RoHS: Yes
• SVHC: No SVHC (20-Jun-2011)
