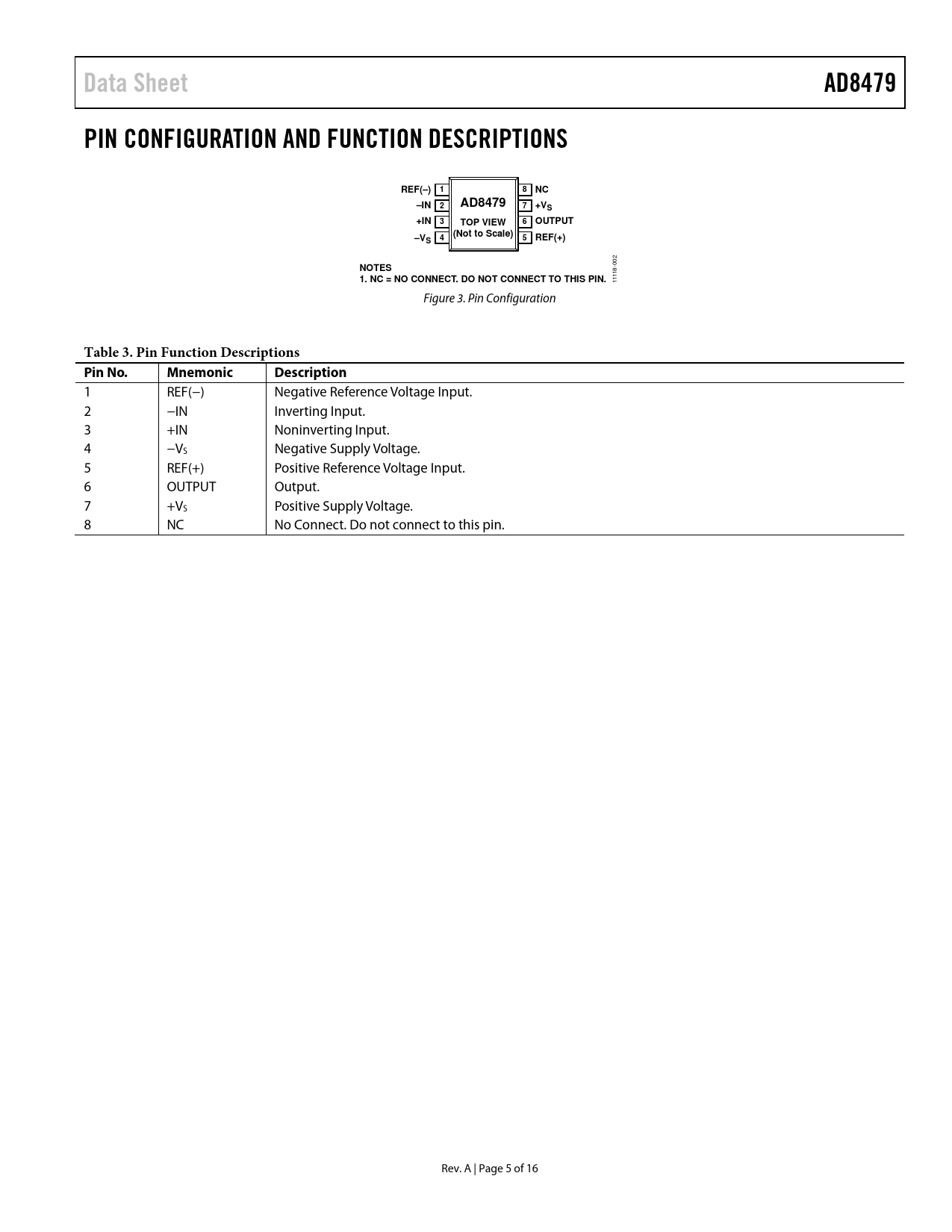

Data SheetAD8479PIN CONFIGURATION AND FUNCTION DESCRIPTIONSREF(–)18NC–IN2AD84797+VS+IN36TOP VIEWOUTPUT(Not to Scale)–V45REF(+)S 002 NOTES 18- 1. NC = NO CONNECT. DO NOT CONNECT TO THIS PIN. 111 Figure 3. Pin Configuration Table 3. Pin Function Descriptions Pin No.MnemonicDescription 1 REF(−) Negative Reference Voltage Input. 2 −IN Inverting Input. 3 +IN Noninverting Input. 4 −VS Negative Supply Voltage. 5 REF(+) Positive Reference Voltage Input. 6 OUTPUT Output. 7 +VS Positive Supply Voltage. 8 NC No Connect. Do not connect to this pin. Rev. A | Page 5 of 16 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Basic Connections Single-Supply Operation System-Level Decoupling and Grounding Using a Large Shunt Resistor Output Filtering Gain of 60 Differential Amplifier Error Budget Analysis Example Outline Dimensions Ordering Guide
