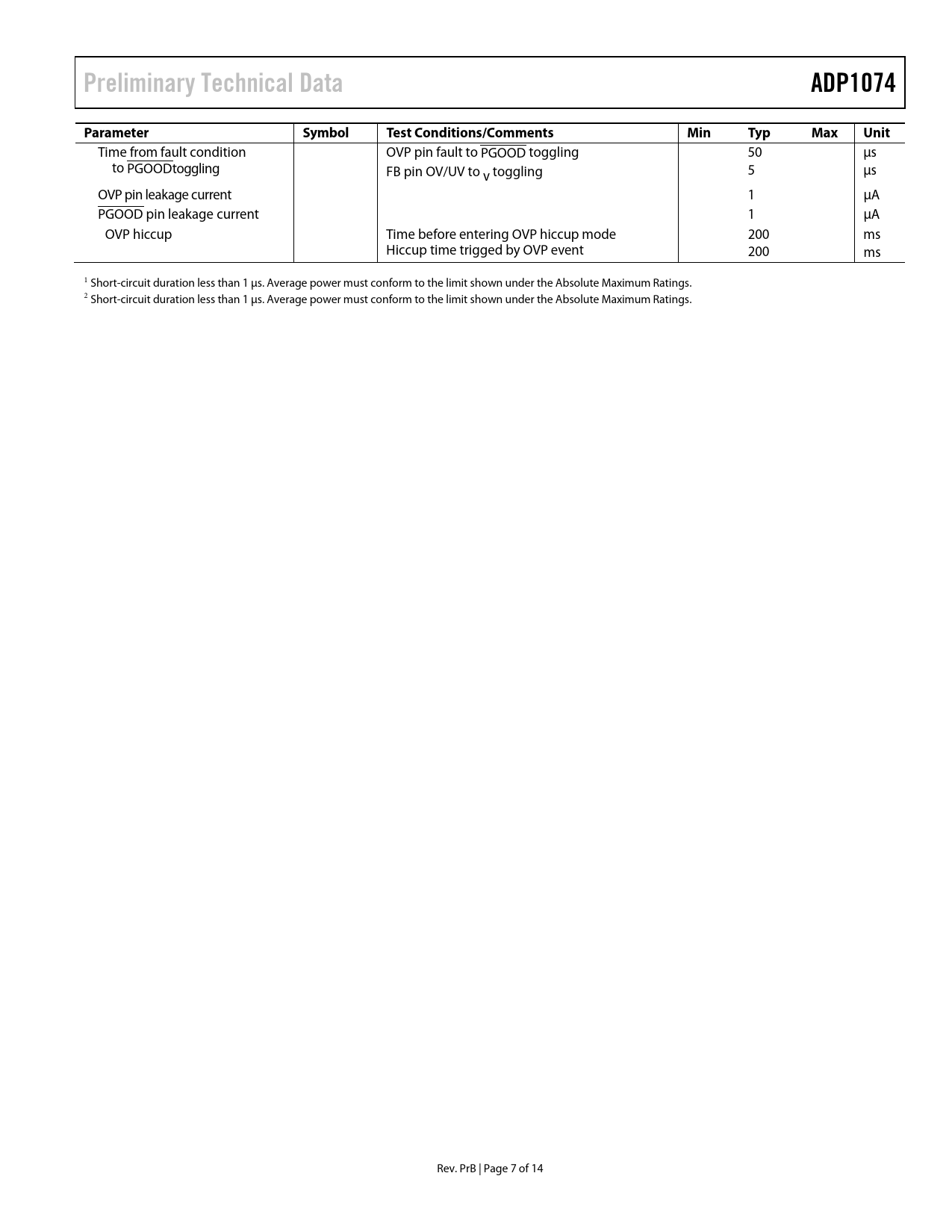

Preliminary Technical Data. ADP1074. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
文件文字版本
Preliminary Technical Data ADP1074 Parameter Symbol Test Conditions/Comments Min Typ Max Unit
Time from fault condition OVP pin fault to PGOOD toggling 50 μs to PGOODtoggling FB pin OV/UV to v toggling 5 μs OVP pin leakage current 1 μA PGOOD pin leakage current 1 μA OVP hiccup Time before entering OVP hiccup mode 200 ms Hiccup time trigged by OVP event 200 ms 1 Short-circuit duration less than 1 μs. Average power must conform to the limit shown under the Absolute Maximum Ratings. 2 Short-circuit duration less than 1 μs. Average power must conform to the limit shown under the Absolute Maximum Ratings. Rev. PrB | Page 7 of 14 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS TYPICAL APPLICATION CIRCUITS SPECIFICATIONS REGULATORY INFORMATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SIMPLIFIED BLOCK DIAGRAM APPLICATIONS INFORMATION INSULATION LIFETIME OUTLINE DIMENSIONS
