Data Sheet. ADA4177-1/ADA4177-2/ADA4177-4. ELECTRICAL CHARACTERISTICS, ±15 V. Table 3. Parameter. Symbol
文件文字版本
link to page 6

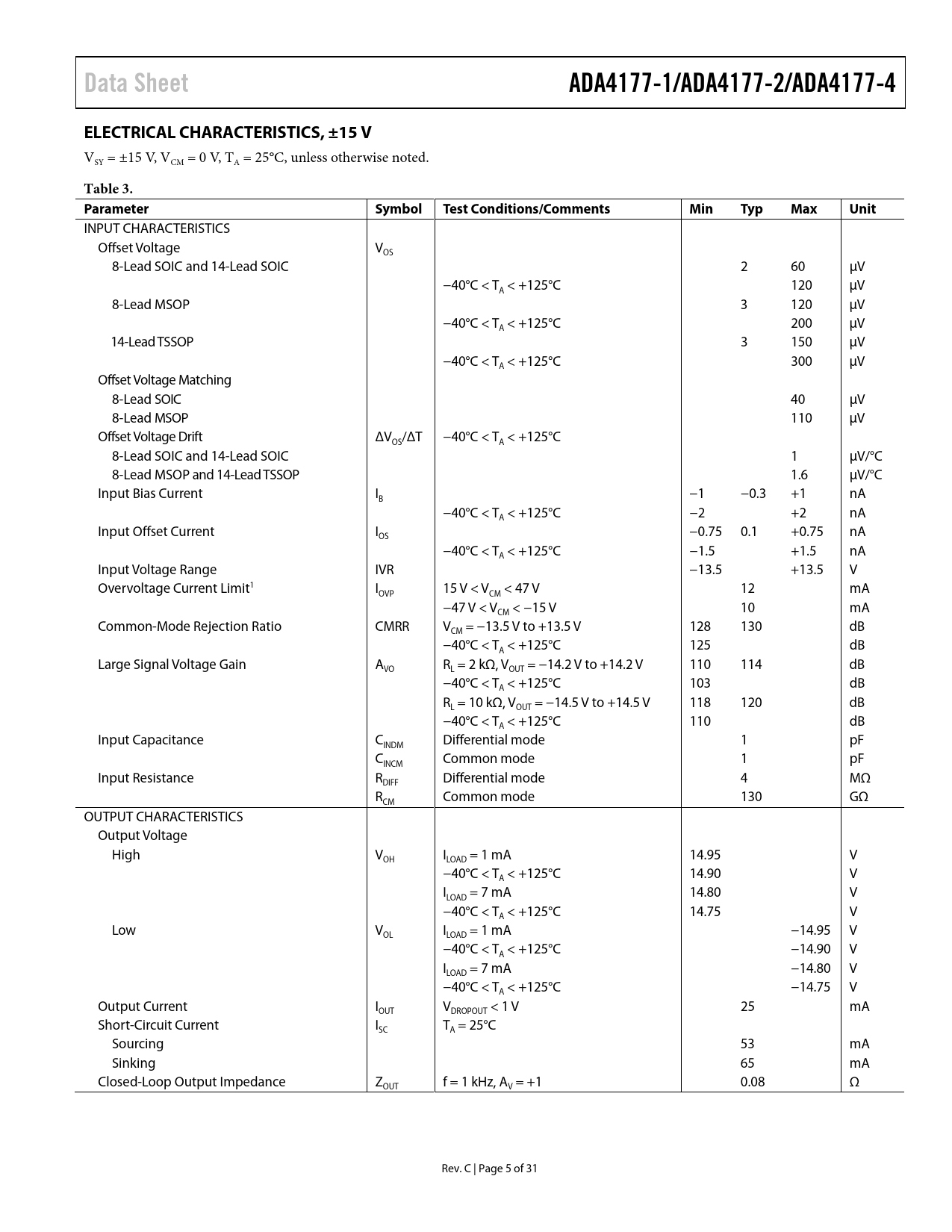

Data Sheet ADA4177-1/ADA4177-2/ADA4177-4 ELECTRICAL CHARACTERISTICS, ±15 V
VSY = ±15 V, VCM = 0 V, TA = 25°C, unless otherwise noted.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage V OS 8-Lead SOIC and 14-Lead SOIC 2 60 µV −40°C < T < +125°C 120 µV A 8-Lead MSOP 3 120 µV −40°C < T < +125°C 200 µV A 14-Lead TSSOP 3 150 µV −40°C < T < +125°C 300 µV A Offset Voltage Matching 8-Lead SOIC 40 µV 8-Lead MSOP 110 µV Offset Voltage Drift ΔV /ΔT −40°C < T < +125°C OS A 8-Lead SOIC and 14-Lead SOIC 1 µV/°C 8-Lead MSOP and 14-Lead TSSOP 1.6 µV/°C Input Bias Current I −1 −0.3 +1 nA B −40°C < T < +125°C −2 +2 nA A Input Offset Current I −0.75 0.1 +0.75 nA OS −40°C < T < +125°C −1.5 +1.5 nA A Input Voltage Range IVR −13.5 +13.5 V Overvoltage Current Limit1 I 15 V < V < 47 V 12 mA OVP CM −47 V < V < −15 V 10 mA CM Common-Mode Rejection Ratio CMRR V = −13.5 V to +13.5 V 128 130 dB CM −40°C < T < +125°C 125 dB A Large Signal Voltage Gain A R = 2 kΩ, V = −14.2 V to +14.2 V 110 114 dB VO L OUT −40°C < T < +125°C 103 dB A R = 10 kΩ, V = −14.5 V to +14.5 V 118 120 dB L OUT −40°C < T < +125°C 110 dB A Input Capacitance C Differential mode 1 pF INDM C Common mode 1 pF INCM Input Resistance R Differential mode 4 MΩ DIFF R Common mode 130 GΩ CM OUTPUT CHARACTERISTICS Output Voltage High V I = 1 mA 14.95 V OH LOAD −40°C < T < +125°C 14.90 V A I = 7 mA 14.80 V LOAD −40°C < T < +125°C 14.75 V A Low V I = 1 mA −14.95 V OL LOAD −40°C < T < +125°C −14.90 V A I = 7 mA −14.80 V LOAD −40°C < T < +125°C −14.75 V A Output Current I V < 1 V 25 mA OUT DROPOUT Short-Circuit Current I T = 25°C SC A Sourcing 53 mA Sinking 65 mA Closed-Loop Output Impedance Z f = 1 kHz, A = +1 0.08 Ω OUT V Rev. C | Page 5 of 31 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION ACTIVE OVERVOLTAGE PROTECTION Common Protection Methods Add an External Series Input Resistor Add External Clamping Diodes Input Protection Circuit LIMITING OVERVOLTAGE CURRENT OUT OF THE POSITIVE SUPPLY PIN EMI PROTECTION SELF HEATING USING THE ADA4177-1/ADA4177-2/ADA4177-4 AS A COMPARATOR OUTPUT PHASE REVERSAL PROPER PRINTED CIRCUIT BOARD (PCB) LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADA4177-1/ADA4177-2/ADA4177-4 ELECTRICAL CHARACTERISTICS, ±15 V
VSY = ±15 V, VCM = 0 V, TA = 25°C, unless otherwise noted.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage V OS 8-Lead SOIC and 14-Lead SOIC 2 60 µV −40°C < T < +125°C 120 µV A 8-Lead MSOP 3 120 µV −40°C < T < +125°C 200 µV A 14-Lead TSSOP 3 150 µV −40°C < T < +125°C 300 µV A Offset Voltage Matching 8-Lead SOIC 40 µV 8-Lead MSOP 110 µV Offset Voltage Drift ΔV /ΔT −40°C < T < +125°C OS A 8-Lead SOIC and 14-Lead SOIC 1 µV/°C 8-Lead MSOP and 14-Lead TSSOP 1.6 µV/°C Input Bias Current I −1 −0.3 +1 nA B −40°C < T < +125°C −2 +2 nA A Input Offset Current I −0.75 0.1 +0.75 nA OS −40°C < T < +125°C −1.5 +1.5 nA A Input Voltage Range IVR −13.5 +13.5 V Overvoltage Current Limit1 I 15 V < V < 47 V 12 mA OVP CM −47 V < V < −15 V 10 mA CM Common-Mode Rejection Ratio CMRR V = −13.5 V to +13.5 V 128 130 dB CM −40°C < T < +125°C 125 dB A Large Signal Voltage Gain A R = 2 kΩ, V = −14.2 V to +14.2 V 110 114 dB VO L OUT −40°C < T < +125°C 103 dB A R = 10 kΩ, V = −14.5 V to +14.5 V 118 120 dB L OUT −40°C < T < +125°C 110 dB A Input Capacitance C Differential mode 1 pF INDM C Common mode 1 pF INCM Input Resistance R Differential mode 4 MΩ DIFF R Common mode 130 GΩ CM OUTPUT CHARACTERISTICS Output Voltage High V I = 1 mA 14.95 V OH LOAD −40°C < T < +125°C 14.90 V A I = 7 mA 14.80 V LOAD −40°C < T < +125°C 14.75 V A Low V I = 1 mA −14.95 V OL LOAD −40°C < T < +125°C −14.90 V A I = 7 mA −14.80 V LOAD −40°C < T < +125°C −14.75 V A Output Current I V < 1 V 25 mA OUT DROPOUT Short-Circuit Current I T = 25°C SC A Sourcing 53 mA Sinking 65 mA Closed-Loop Output Impedance Z f = 1 kHz, A = +1 0.08 Ω OUT V Rev. C | Page 5 of 31 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION ACTIVE OVERVOLTAGE PROTECTION Common Protection Methods Add an External Series Input Resistor Add External Clamping Diodes Input Protection Circuit LIMITING OVERVOLTAGE CURRENT OUT OF THE POSITIVE SUPPLY PIN EMI PROTECTION SELF HEATING USING THE ADA4177-1/ADA4177-2/ADA4177-4 AS A COMPARATOR OUTPUT PHASE REVERSAL PROPER PRINTED CIRCUIT BOARD (PCB) LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
