Datasheet AD713 (Analog Devices)

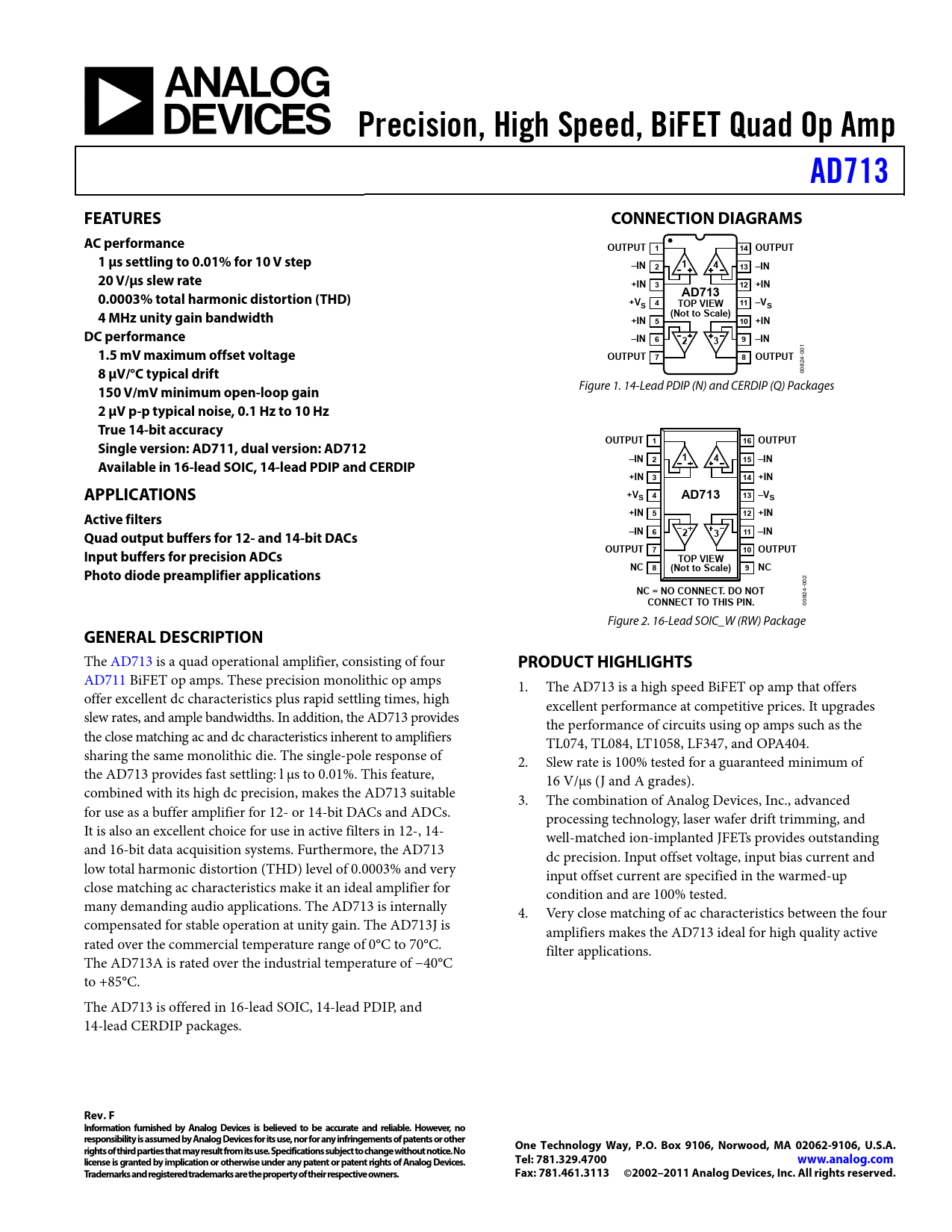

Precision, High Speed, BiFET Quad Op Amp AD713 FEATURES CONNECTION DIAGRAMS AC performance OUTPUT 1 14 OUTPUT 1 μs settling to 0.01% for 10 V step –IN 2 1 4 13 –IN 20 V/μs slew rate +IN 3 12 +IN AD713 0.0003% total harmonic distortion (THD) +V 4 S TOP VIEW 11 –VS 4 MHz unity gain bandwidth (Not to Scale) +IN 5 10 +IN DC performance –IN 6 9 2 –IN 3
01
1.5 mV maximum offset voltage
0
OUTPUT 7 8 OUTPUT
4-82
8 μV/°C typical drift
00 Figure 1. 14-Lead PDIP (N) and CERDIP (Q) Packages
150 V/mV minimum open-loop gain 2 μV p-p typical noise, 0.1 Hz to 10 Hz True 14-bit accuracy OUTPUT 1 16 OUTPUT Single version: AD711, dual version: AD712 –IN 2 1 4 15 –IN Available in 16-lead SOIC, 14-lead PDIP and CERDIP +IN 3 14 +IN APPLICATIONS +VS 4 AD713 13 –VS +IN 5 12 +IN Active filters –IN 6 11 2 –IN Quad output buffers for 12- and 14-bit DACs 3 OUTPUT 7 10 OUTPUT Input buffers for precision ADCs TOP VIEW NC 8 (Not to Scale) 9 NC Photo diode preamplifier applications
2 -00 4
NC = NO CONNECT. DO NOT
82
CONNECT TO THIS PIN.
00 Figure 2. 16-Lead SOIC_W (RW) Package
GENERAL DESCRIPTION
The AD713 is a quad operational amplifier, consisting of four
PRODUCT HIGHLIGHTS
AD711 BiFET op amps. These precision monolithic op amps 1. The AD713 is a high speed BiFET op amp that offers offer excellent dc characteristics plus rapid settling times, high excellent performance at competitive prices. It upgrades slew rates, and ample bandwidths. In addition, the AD713 provides the performance of circuits using op amps such as the the close matching ac and dc characteristics inherent to amplifiers TL074, TL084, LT1058, LF347, and OPA404. sharing the same monolithic die. The single-pole response of 2. Slew rate is 100% tested for a guaranteed minimum of the AD713 provides fast settling: l μs to 0.01%. This feature, 16 V/μs (J and A grades). combined with its high dc precision, makes the AD713 suitable 3. The combination of Analog Devices, Inc., advanced for use as a buffer amplifier for 12- or 14-bit DACs and ADCs. processing technology, laser wafer drift trimming, and It is also an excellent choice for use in active filters in 12-, 14- well-matched ion-implanted JFETs provides outstanding and 16-bit data acquisition systems. Furthermore, the AD713 dc precision. Input offset voltage, input bias current and low total harmonic distortion (THD) level of 0.0003% and very input offset current are specified in the warmed-up close matching ac characteristics make it an ideal amplifier for condition and are 100% tested. many demanding audio applications. The AD713 is internally 4. Very close matching of ac characteristics between the four compensated for stable operation at unity gain. The AD713J is amplifiers makes the AD713 ideal for high quality active rated over the commercial temperature range of 0°C to 70°C. filter applications. The AD713A is rated over the industrial temperature of −40°C to +85°C. The AD713 is offered in 16-lead SOIC, 14-lead PDIP, and 14-lead CERDIP packages.
Rev. F Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2002–2011 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION MEASURING AD713 SETTLING TIME POWER SUPPLY BYPASSING A HIGH SPEED INSTRUMENTATION AMPLIFIER CIRCUIT A HIGH SPEED 4-OP-AMP CASCADED AMPLIFIER CIRCUIT HIGH SPEED OP AMP APPLICATIONS AND TECHNIQUES DAC Buffers (I-to-V Converters) Driving the Analog Input of an Analog-to-Digital Converter Driving A Large Capacitive Load CMOS DAC APPLICATIONS FILTER APPLICATIONS A Programmable State Variable Filter GIC AND FDNR FILTER APPLICATIONS OUTLINE DIMENSIONS ORDERING GUIDE
