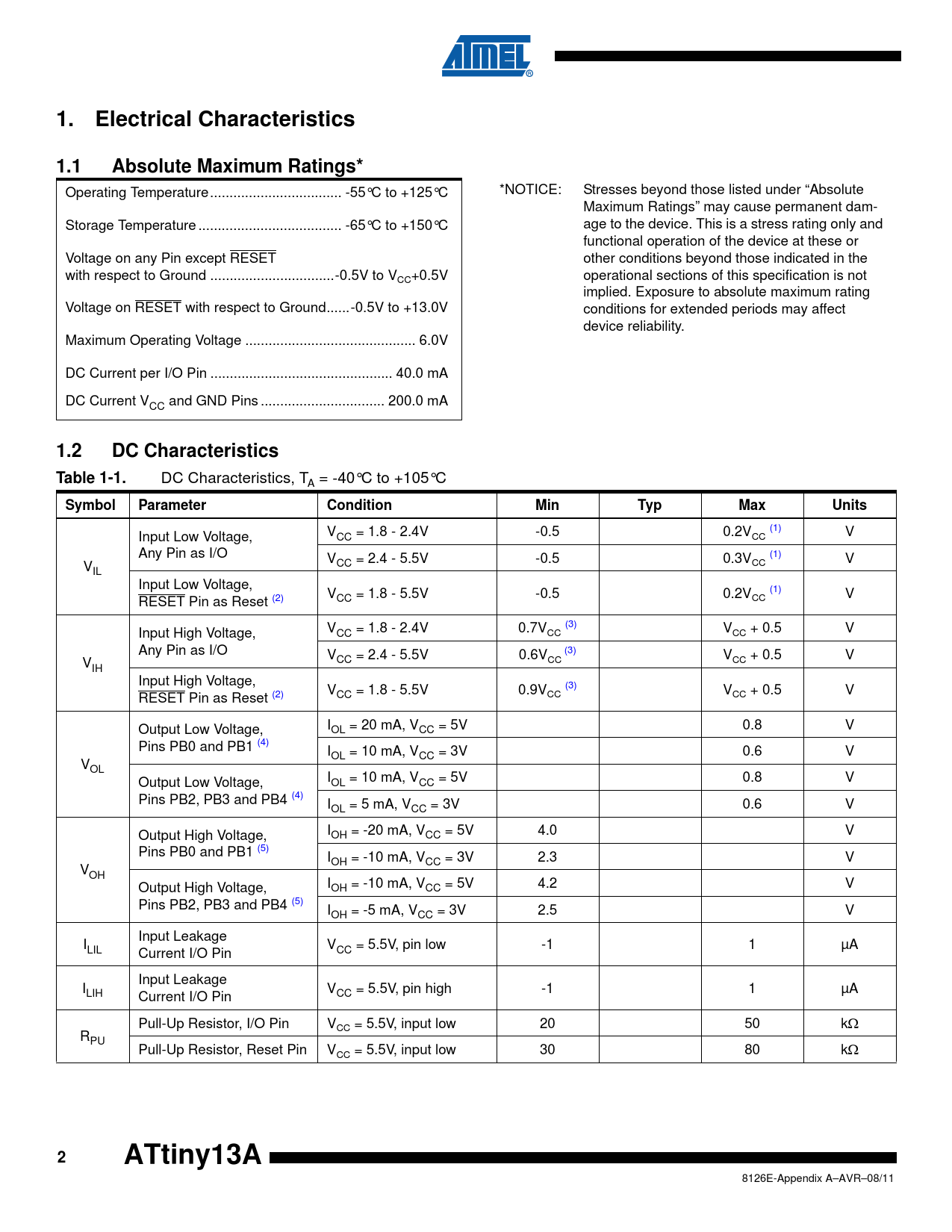

1. Electrical Characteristics 1.1 Absolute Maximum Ratings*
Operating Temperature.. -55°C to +125°C *NOTICE: Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent dam- Storage Temperature ... -65°C to +150°C age to the device. This is a stress rating only and functional operation of the device at these or Voltage on any Pin except RESET other conditions beyond those indicated in the with respect to Ground ..-0.5V to V operational sections of this specification is not CC+0.5V implied. Exposure to absolute maximum rating Voltage on RESET with respect to Ground..-0.5V to +13.0V conditions for extended periods may affect device reliability. Maximum Operating Voltage .. 6.0V DC Current per I/O Pin ... 40.0 mA DC Current VCC and GND Pins .. 200.0 mA
1.2 DC Characteristics Table 1-1.
DC Characteristics, T = -40°C to +105°C A
Symbol Parameter Condition Min Typ Max Units
Input Low Voltage, VCC = 1.8 - 2.4V -0.5 0.2VCC (1) V Any Pin as I/O V (1) V V CC = 2.4 - 5.5V -0.5 0.3VCC IL Input Low Voltage, (1) V RESET Pin as Reset (2) VCC = 1.8 - 5.5V -0.5 0.2VCC Input High Voltage, VCC = 1.8 - 2.4V 0.7V (3) V + 0.5 V CC CC Any Pin as I/O V (3) V V CC = 2.4 - 5.5V 0.6VCC CC + 0.5 V IH Input High Voltage, RESET Pin as Reset (2) VCC = 1.8 - 5.5V 0.9VCC (3) VCC + 0.5 V Output Low Voltage, IOL = 20 mA, VCC = 5V 0.8 V Pins PB0 and PB1 (4) IOL = 10 mA, VCC = 3V 0.6 V VOL Output Low Voltage, IOL = 10 mA, VCC = 5V 0.8 V Pins PB2, PB3 and PB4 (4) IOL = 5 mA, VCC = 3V 0.6 V Output High Voltage, IOH = -20 mA, VCC = 5V 4.0 V Pins PB0 and PB1 (5) IOH = -10 mA, VCC = 3V 2.3 V VOH Output High Voltage, IOH = -10 mA, VCC = 5V 4.2 V Pins PB2, PB3 and PB4 (5) IOH = -5 mA, VCC = 3V 2.5 V Input Leakage ILIL V Current I/O Pin CC = 5.5V, pin low -1 1 µA Input Leakage ILIH V Current I/O Pin CC = 5.5V, pin high -1 1 µA Pull-Up Resistor, I/O Pin VCC = 5.5V, input low 20 50 kΩ RPU Pull-Up Resistor, Reset Pin V = 5.5V, input low 30 80 kΩ CC
2 ATtiny13A
8126E-Appendix A–AVR–08/11 Document Outline Appendix A – ATtiny13A Specification at 105°C 1. Electrical Characteristics 1.1 Absolute Maximum Ratings* 1.2 DC Characteristics 1.3 Clock Characteristics 1.3.1 Accuracy of Calibrated Internal Oscillator 1.4 System and Reset Characteristics 1.4.1 Enhanced Power-On Reset 1.5 ADC Characteristics 1.6 Analog Comparator Characteristics 1.7 Serial Programming Characteristics 2. Typical Characteristics 2.1 Current Consumption in Active Mode 2.2 Current Consumption in Idle Mode 2.3 Current Consumption in Power-Down Mode 2.4 Current Consumption of Peripheral Units 2.5 Pull-up Resistors 2.6 Output Driver Strength (Low Power Pins) 2.7 Output Driver Strength (Regular Pins) 2.8 Input Thresholds and Hysteresis (for I/O Ports) 2.9 BOD, Bandgap and Reset 2.10 Internal Oscillator Speed 3. Ordering Information 4. Revision History
