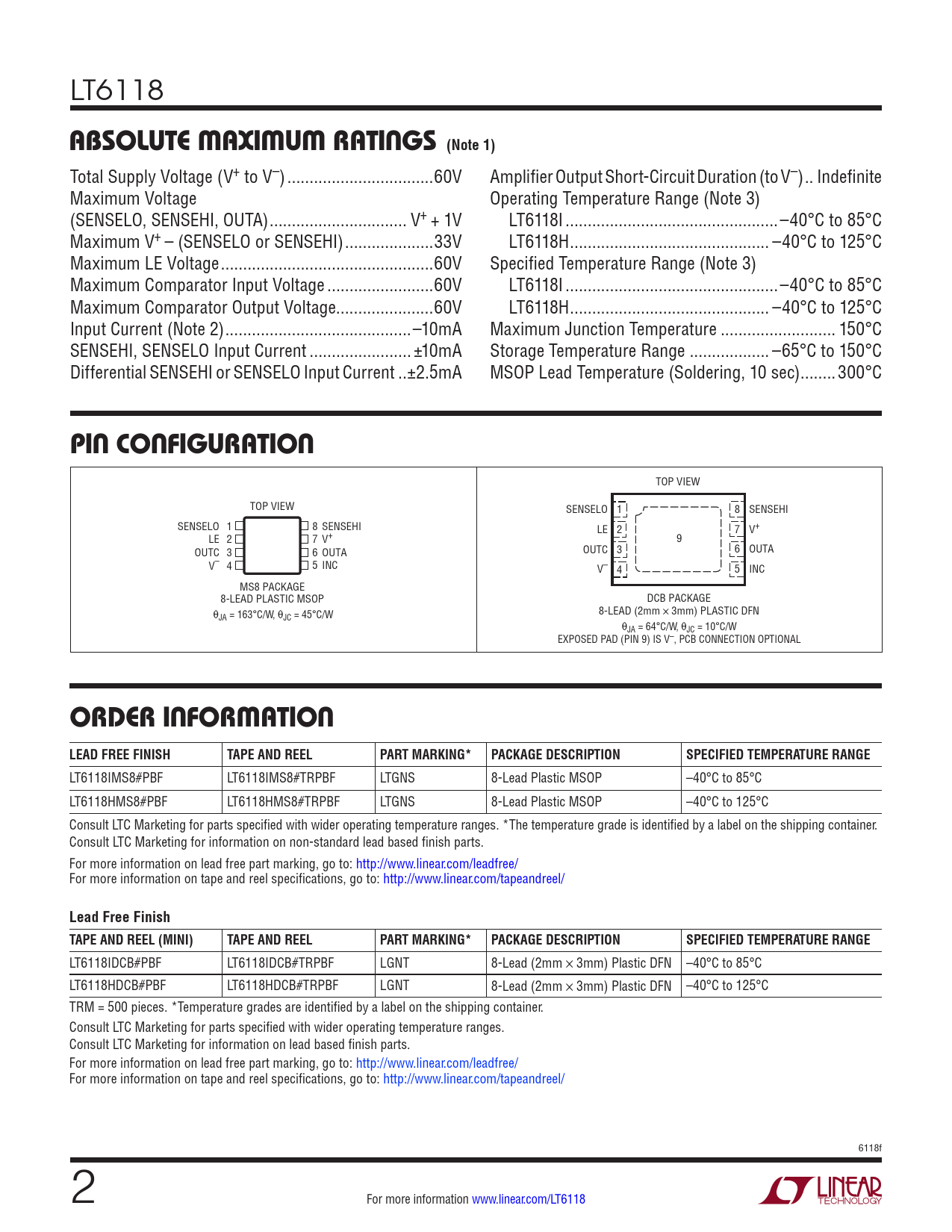

LT6118
absoluTe MaxiMuM raTings (Note 1)
Total Supply Voltage (V+ to V–) ...60V Amplifier Output Short-Circuit Duration (to V–) .. Indefinite Maximum Voltage Operating Temperature Range (Note 3) (SENSELO, SENSEHI, OUTA) ... V+ + 1V LT6118I ..–40°C to 85°C Maximum V+ – (SENSELO or SENSEHI) ..33V LT6118H ... –40°C to 125°C Maximum LE Voltage ..60V Specified Temperature Range (Note 3) Maximum Comparator Input Voltage ..60V LT6118I ..–40°C to 85°C Maximum Comparator Output Voltage..60V LT6118H ... –40°C to 125°C Input Current (Note 2) ..–10mA Maximum Junction Temperature .. 150°C SENSEHI, SENSELO Input Current ... ±10mA Storage Temperature Range .. –65°C to 150°C Differential SENSEHI or SENSELO Input Current ..±2.5mA MSOP Lead Temperature (Soldering, 10 sec) ..300°C
pin conFiguraTion
TOP VIEW TOP VIEW SENSELO 1 8 SENSEHI SENSELO 1 8 SENSEHI LE 2 7 V+ LE 2 7 V+ 9 OUTC 3 6 OUTA OUTC 3 6 OUTA V– 4 5 INC V– 4 5 INC MS8 PACKAGE 8-LEAD PLASTIC MSOP DCB PACKAGE θ 8-LEAD (2mm × 3mm) PLASTIC DFN JA = 163°C/W, θJC = 45°C/W θJA = 64°C/W, θJC = 10°C/W EXPOSED PAD (PIN 9) IS V–, PCB CONNECTION OPTIONAL
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6118IMS8#PBF LT6118IMS8#TRPBF LTGNS 8-Lead Plastic MSOP –40°C to 85°C LT6118HMS8#PBF LT6118HMS8#TRPBF LTGNS 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6118IDCB#PBF LT6118IDCB#TRPBF LGNT 8-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LT6118HDCB#PBF LT6118HDCB#TRPBF LGNT 8-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 6118f 2 For more information www.linear.com/LT6118 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Typical Application Related Parts
