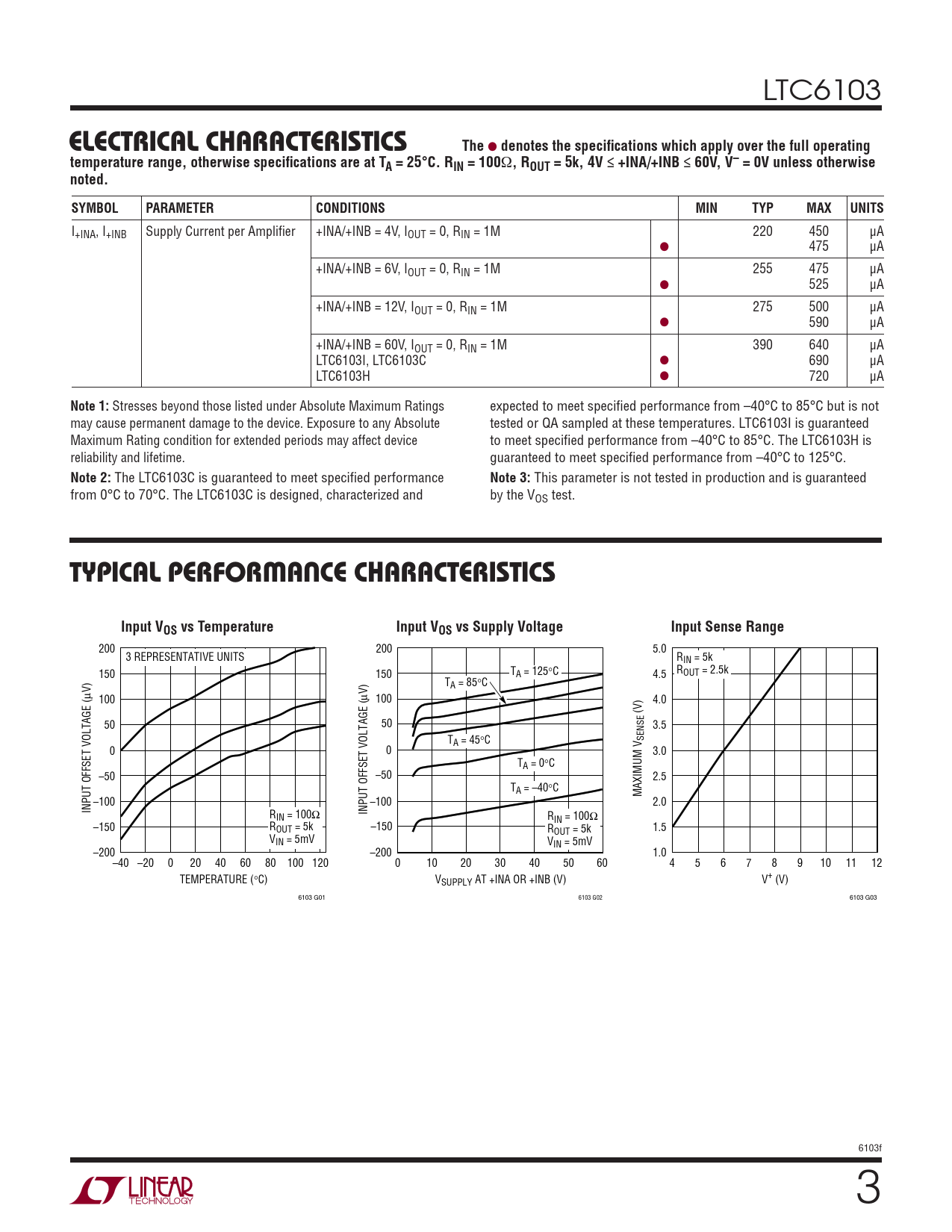

LTC6103 ELECTRICAL CHARACTERISTICSThe ● denotes the specifi cations which apply over the full operatingtemperature range, otherwise specifi cations are at TA = 25°C. RIN = 100 Ω , ROUT = 5k, 4V ≤ +INA/+INB ≤ 60V, V– = 0V unless otherwise noted.SYMBOLPARAMETERCONDITIONSMINTYPMAXUNITS I+INA, I+INB Supply Current per Amplifi er +INA/+INB = 4V, IOUT = 0, RIN = 1M 220 450 µA ● 475 µA +INA/+INB = 6V, IOUT = 0, RIN = 1M 255 475 µA ● 525 µA +INA/+INB = 12V, IOUT = 0, RIN = 1M 275 500 µA ● 590 µA +INA/+INB = 60V, IOUT = 0, RIN = 1M 390 640 µA LTC6103I, LTC6103C ● 690 µA LTC6103H ● 720 µA Note 1: Stresses beyond those listed under Absolute Maximum Ratings expected to meet specifi ed performance from –40°C to 85°C but is not may cause permanent damage to the device. Exposure to any Absolute tested or QA sampled at these temperatures. LTC6103I is guaranteed Maximum Rating condition for extended periods may affect device to meet specifi ed performance from –40°C to 85°C. The LTC6103H is reliability and lifetime. guaranteed to meet specifi ed performance from –40°C to 125°C. Note 2: The LTC6103C is guaranteed to meet specifi ed performance Note 3: This parameter is not tested in production and is guaranteed from 0°C to 70°C. The LTC6103C is designed, characterized and by the VOS test. TYPICAL PERFORMANCE CHARACTERISTICSInput VOS vs TemperatureInput VOS vs Supply VoltageInput Sense Range 200 200 5.0 3 REPRESENTATIVE UNITS RIN = 5k 150 150 TA = 125°C 4.5 ROUT = 2.5k TA = 85°C µV) 100 µV) 100 4.0 (V) 50 50 3.5 T SENSE A = 45°C 0 0 3.0 TA = 0°C –50 –50 2.5 TA = –40°C MAXIMUM V –100 –100 2.0 INPUT OFFSET VOLTAGE ( R INPUT OFFSET VOLTAGE ( IN = 100Ω RIN = 100Ω –150 ROUT = 5k –150 ROUT = 5k 1.5 VIN = 5mV VIN = 5mV –200 –200 1.0 –40 –20 0 20 40 60 80 100 120 0 10 20 30 40 50 60 4 5 6 7 8 9 10 11 12 TEMPERATURE (°C) VSUPPLY AT +INA OR +INB (V) V+ (V) 6103 G01 6103 G02 6103 G03 6103f 3
