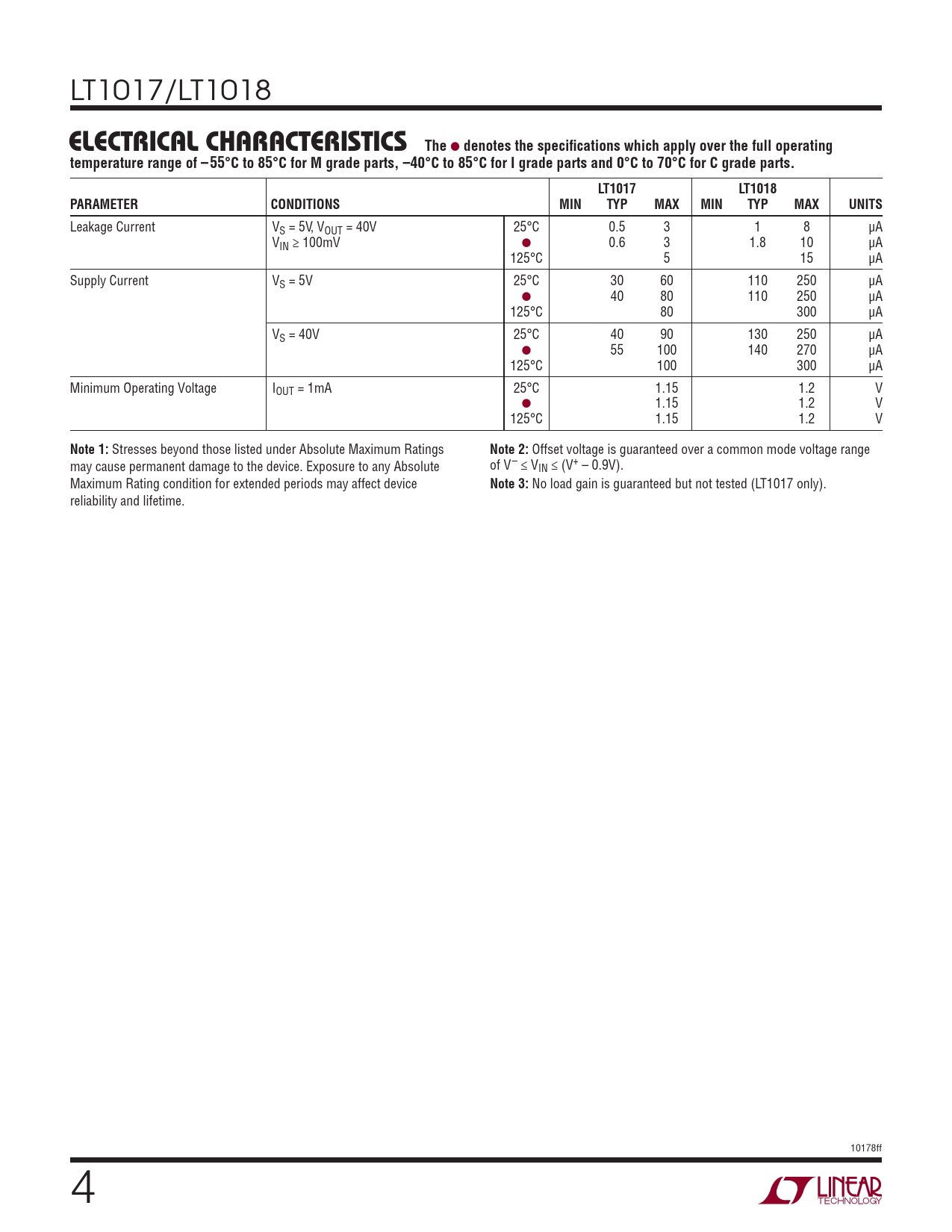

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the full operating
该数据表的模型线
文件文字版本
LT1017/LT1018
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range of – 55°C to 85°C for M grade parts, –40°C to 85°C for I grade parts and 0°C to 70°C for C grade parts. LT1017 LT1018 PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Leakage Current VS = 5V, VOUT = 40V 25°C 0.5 3 1 8 μA VIN ≥ 100mV ● 0.6 3 1.8 10 μA 125°C 5 15 μA Supply Current VS = 5V 25°C 30 60 110 250 μA ● 40 80 110 250 μA 125°C 80 300 μA VS = 40V 25°C 40 90 130 250 μA ● 55 100 140 270 μA 125°C 100 300 μA Minimum Operating Voltage IOUT = 1mA 25°C 1.15 1.2 V ● 1.15 1.2 V 125°C 1.15 1.2 V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 2:
Offset voltage is guaranteed over a common mode voltage range may cause permanent damage to the device. Exposure to any Absolute of V– ≤ VIN ≤ (V+ – 0.9V). Maximum Rating condition for extended periods may affect device
Note 3:
No load gain is guaranteed but not tested (LT1017 only). reliability and lifetime. 10178ff 4
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the full operating temperature range of – 55°C to 85°C for M grade parts, –40°C to 85°C for I grade parts and 0°C to 70°C for C grade parts. LT1017 LT1018 PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
Leakage Current VS = 5V, VOUT = 40V 25°C 0.5 3 1 8 μA VIN ≥ 100mV ● 0.6 3 1.8 10 μA 125°C 5 15 μA Supply Current VS = 5V 25°C 30 60 110 250 μA ● 40 80 110 250 μA 125°C 80 300 μA VS = 40V 25°C 40 90 130 250 μA ● 55 100 140 270 μA 125°C 100 300 μA Minimum Operating Voltage IOUT = 1mA 25°C 1.15 1.2 V ● 1.15 1.2 V 125°C 1.15 1.2 V
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 2:
Offset voltage is guaranteed over a common mode voltage range may cause permanent damage to the device. Exposure to any Absolute of V– ≤ VIN ≤ (V+ – 0.9V). Maximum Rating condition for extended periods may affect device
Note 3:
No load gain is guaranteed but not tested (LT1017 only). reliability and lifetime. 10178ff 4
