LT1720/LT1721

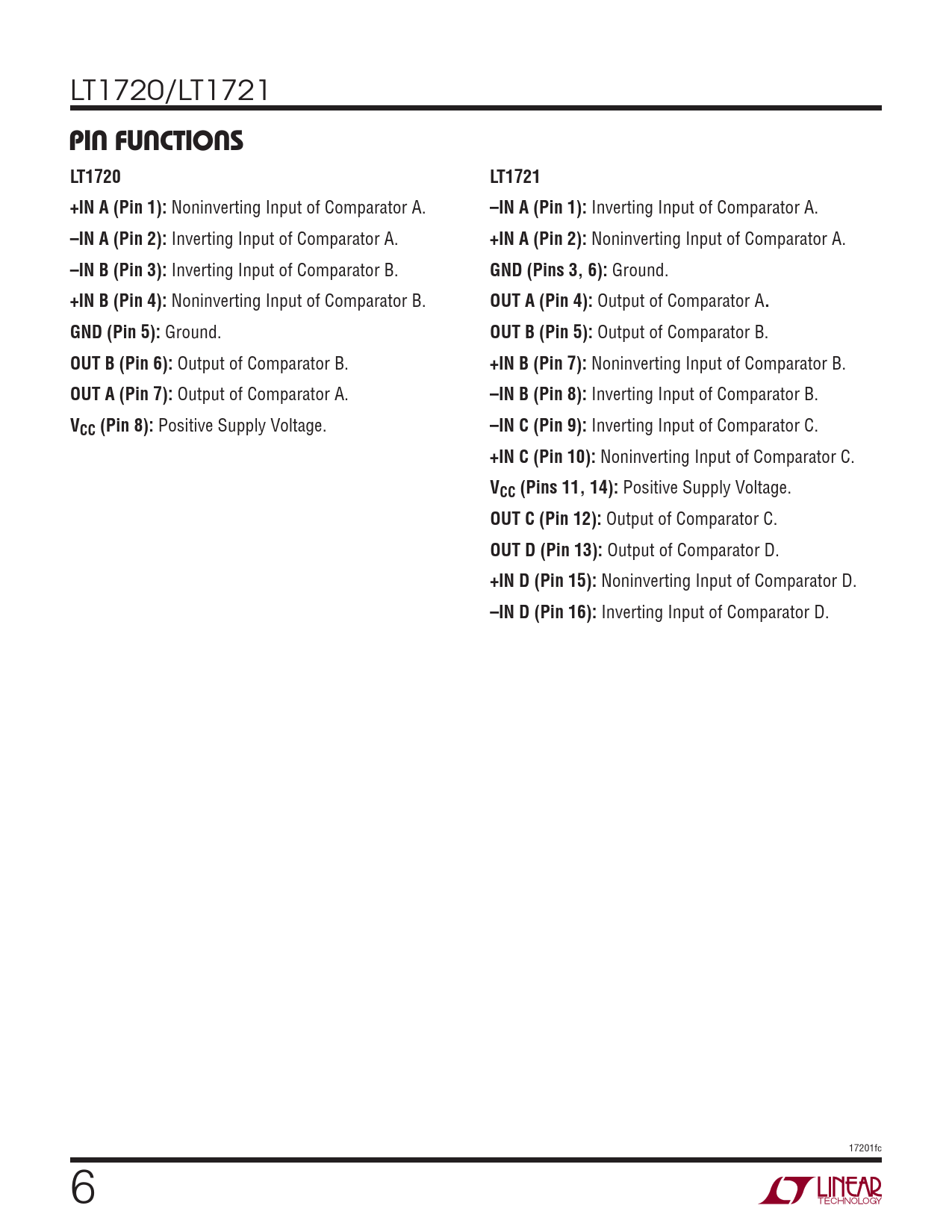

PIN FUNCTIONS LT1720 LT1721 +IN A (Pin 1):
Noninverting Input of Comparator A.
–IN A (Pin 1):
Inverting Input of Comparator A.
–IN A (Pin 2):
Inverting Input of Comparator A.
+IN A (Pin 2):
Noninverting Input of Comparator A.
–IN B (Pin 3):
Inverting Input of Comparator B.
GND (Pins 3, 6):
Ground.
+IN B (Pin 4):
Noninverting Input of Comparator B.
OUT A (Pin 4):
Output of Comparator A
. GND (Pin 5):
Ground.
OUT B (Pin 5):
Output of Comparator B.
OUT B (Pin 6):
Output of Comparator B.
+IN B (Pin 7):
Noninverting Input of Comparator B.
OUT A (Pin 7):
Output of Comparator A.
–IN B (Pin 8):
Inverting Input of Comparator B.
VCC (Pin 8):
Positive Supply Voltage.
–IN C (Pin 9):
Inverting Input of Comparator C.
+IN C (Pin 10):
Noninverting Input of Comparator C.
VCC (Pins 11, 14):
Positive Supply Voltage.
OUT C (Pin 12):
Output of Comparator C.
OUT D (Pin 13):
Output of Comparator D.
+IN D (Pin 15):
Noninverting Input of Comparator D.
–IN D (Pin 16):
Inverting Input of Comparator D. 17201fc 6
