Datasheet MIC6211 (Microchip)
| 制造商 | Microchip |
| 描述 | The MIC6211 op amp is a general-purpose operational amplifier, that operates from 4V to 32V, single or differential (split) supply |
| 页数 / 页 | 7 / 1 — MIC6211. IttyBitty™ Operational Amplifier. General Description. Features. … |
| 文件格式/大小 | PDF / 990 Kb |
| 文件语言 | 英语 |
MIC6211. IttyBitty™ Operational Amplifier. General Description. Features. Applications. Ordering Information. Part Number. Marking
该数据表的模型线
文件文字版本

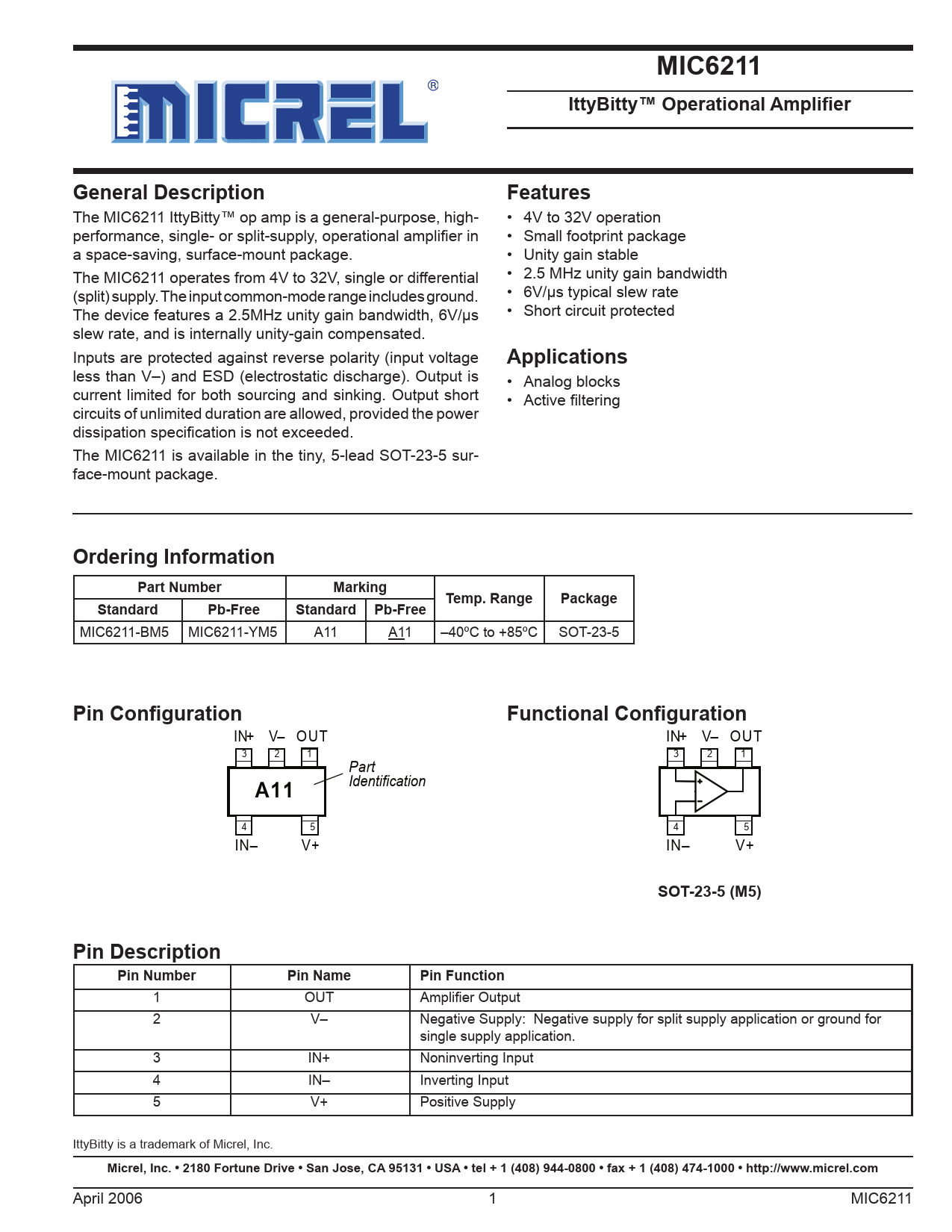

MIC6211 Micrel, Inc.
MIC6211 IttyBitty™ Operational Amplifier General Description Features
The MIC6211 IttyBitty™ op amp is a general-purpose, high- • 4V to 32V operation performance, single- or split-supply, operational amplifier in • Small footprint package a space-saving, surface-mount package. • Unity gain stable The MIC6211 operates from 4V to 32V, single or differential • 2.5 MHz unity gain bandwidth (split) supply. The input common-mode range includes ground. • 6V/µs typical slew rate The device features a 2.5MHz unity gain bandwidth, 6V/µs • Short circuit protected slew rate, and is internally unity-gain compensated. Inputs are protected against reverse polarity (input voltage
Applications
less than V–) and ESD (electrostatic discharge). Output is • Analog blocks current limited for both sourcing and sinking. Output short • Active filtering circuits of unlimited duration are allowed, provided the power dissipation specification is not exceeded. The MIC6211 is available in the tiny, 5-lead SOT-23-5 sur- face-mount package.
Ordering Information Part Number Marking Temp. Range Package Standard Pb-Free Standard Pb-Free
MIC6211-BM5 MIC6211-YM5 A11 A11 –40ºC to +85ºC SOT-23-5
Pin Configuration Functional Configuration
IN+ V– OUT IN+ V– OUT 3 2 1 3 2 1 Part Identification
A11
4 5 4 5 IN– V+ IN– V+
SOT-23-5 (M5) Pin Description Pin Number Pin Name Pin Function
1 OUT Amplifier Output 2 V– Negative Supply: Negative supply for split supply application or ground for single supply application. 3 IN+ Noninverting Input 4 IN– Inverting Input 5 V+ Positive Supply IttyBitty is a trademark of Micrel, Inc.
Micrel, Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
April 2006 1 MIC6211
MIC6211 IttyBitty™ Operational Amplifier General Description Features
The MIC6211 IttyBitty™ op amp is a general-purpose, high- • 4V to 32V operation performance, single- or split-supply, operational amplifier in • Small footprint package a space-saving, surface-mount package. • Unity gain stable The MIC6211 operates from 4V to 32V, single or differential • 2.5 MHz unity gain bandwidth (split) supply. The input common-mode range includes ground. • 6V/µs typical slew rate The device features a 2.5MHz unity gain bandwidth, 6V/µs • Short circuit protected slew rate, and is internally unity-gain compensated. Inputs are protected against reverse polarity (input voltage
Applications
less than V–) and ESD (electrostatic discharge). Output is • Analog blocks current limited for both sourcing and sinking. Output short • Active filtering circuits of unlimited duration are allowed, provided the power dissipation specification is not exceeded. The MIC6211 is available in the tiny, 5-lead SOT-23-5 sur- face-mount package.
Ordering Information Part Number Marking Temp. Range Package Standard Pb-Free Standard Pb-Free
MIC6211-BM5 MIC6211-YM5 A11 A11 –40ºC to +85ºC SOT-23-5
Pin Configuration Functional Configuration
IN+ V– OUT IN+ V– OUT 3 2 1 3 2 1 Part Identification
A11
4 5 4 5 IN– V+ IN– V+
SOT-23-5 (M5) Pin Description Pin Number Pin Name Pin Function
1 OUT Amplifier Output 2 V– Negative Supply: Negative supply for split supply application or ground for single supply application. 3 IN+ Noninverting Input 4 IN– Inverting Input 5 V+ Positive Supply IttyBitty is a trademark of Micrel, Inc.
Micrel, Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel + 1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
April 2006 1 MIC6211
