Datasheet AD8502, AD8504 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 1 µA Micropower CMOS Operational Amplifier |
| 页数 / 页 | 16 / 5 — AD8502/AD8504. Parameter. Symbol. Conditions. Min. Typ. Max. Unit |
| 修订版 | A |
| 文件格式/大小 | PDF / 525 Kb |
| 文件语言 | 英语 |

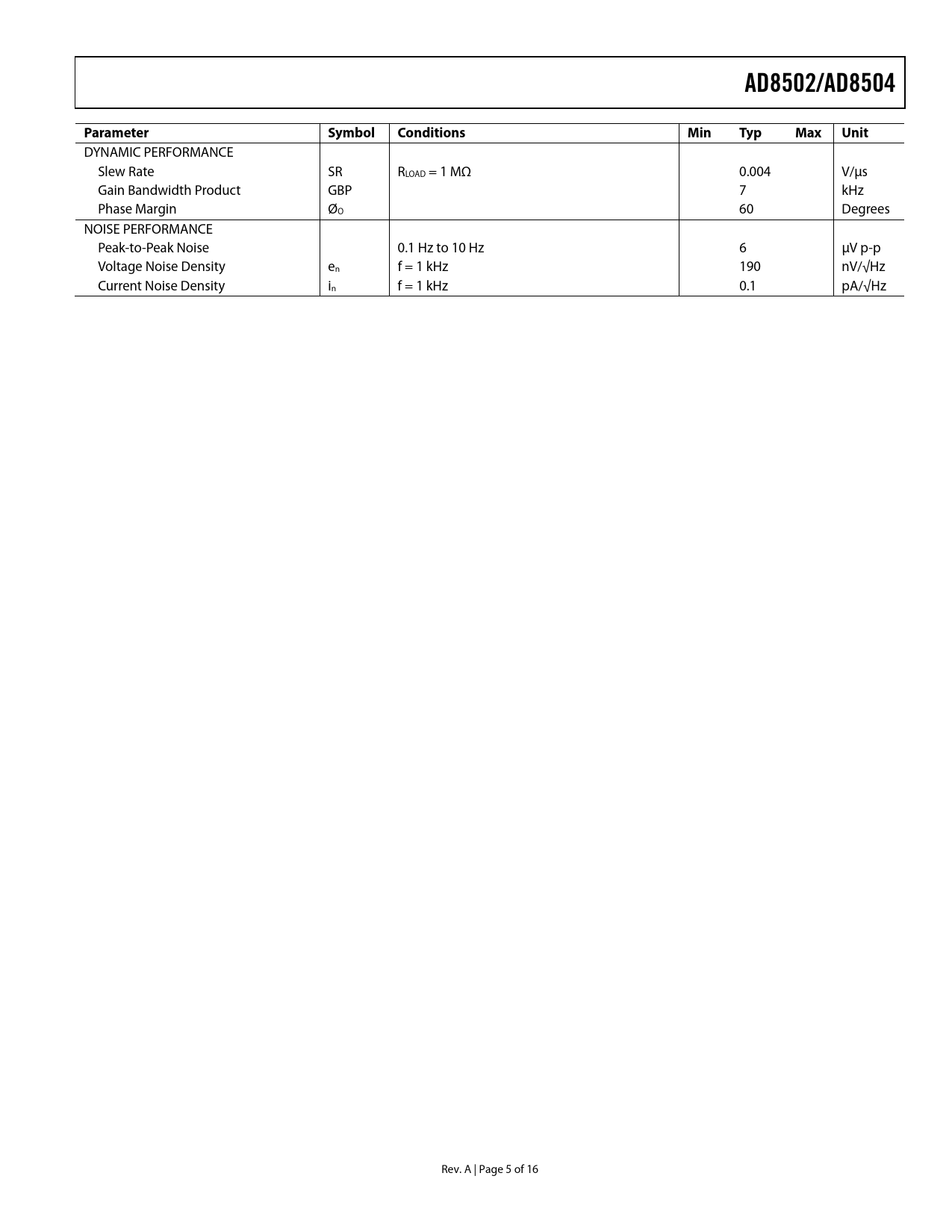

AD8502/AD8504. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
AD8502/AD8504 Parameter Symbol Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE Slew Rate SR RLOAD = 1 MΩ 0.004 V/μs Gain Bandwidth Product GBP 7 kHz Phase Margin ØO 60 Degrees NOISE PERFORMANCE Peak-to-Peak Noise 0.1 Hz to 10 Hz 6 μV p-p Voltage Noise Density en f = 1 kHz 190 nV/√Hz Current Noise Density in f = 1 kHz 0.1 pA/√Hz Rev. A | Page 5 of 16 Document Outline Features Applications Pin Configurations General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
