Datasheet AD8613, AD8617, AD8619 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Low Cost Micropower, Low Noise CMOS Rail-to-Rail, Input/Output Operational Amplifiers |
| 页数 / 页 | 16 / 3 — Data Sheet. AD8613/AD8617/AD8619. SPECIFICATIONS. Table 1. Parameter. … |
| 修订版 | H |
| 文件格式/大小 | PDF / 291 Kb |
| 文件语言 | 英语 |

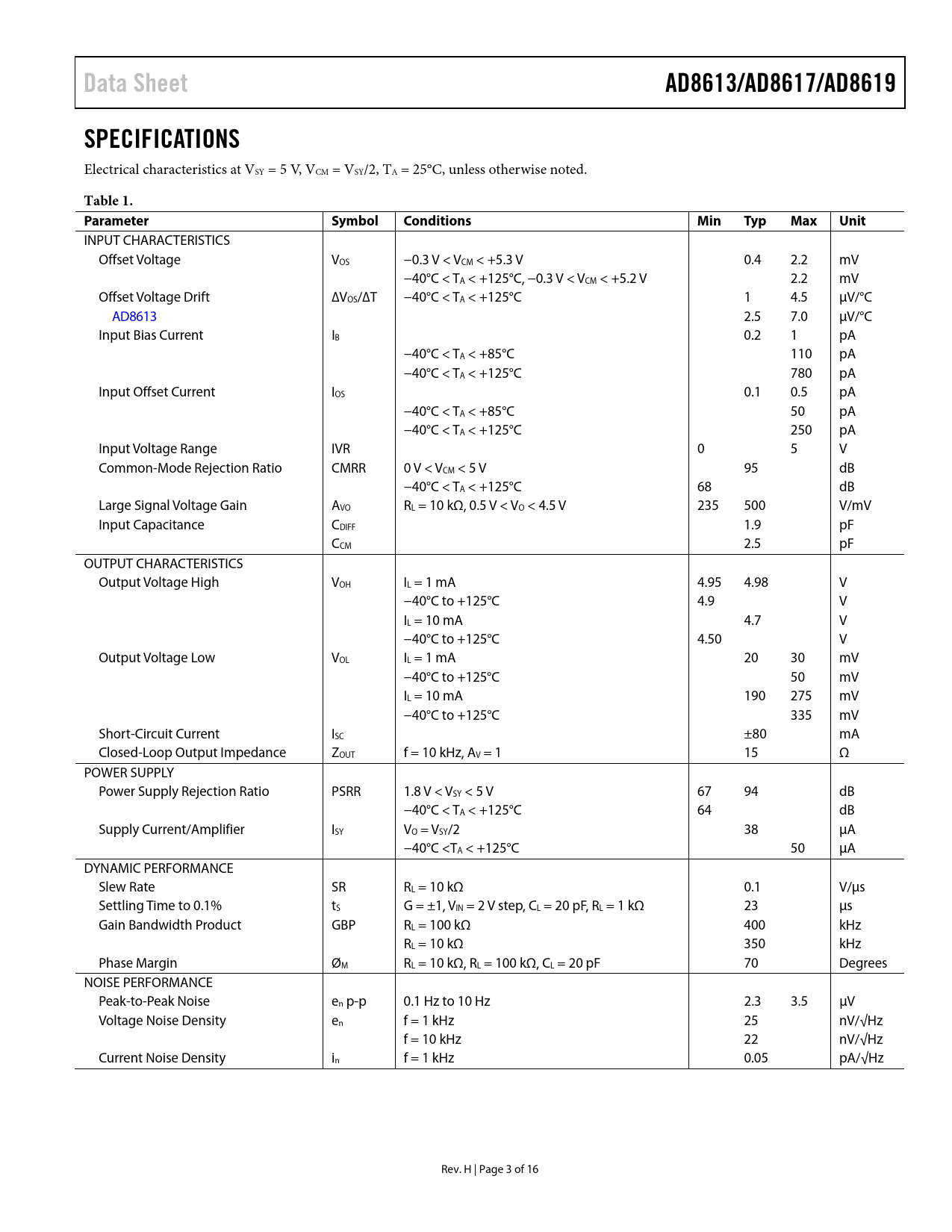

Data Sheet. AD8613/AD8617/AD8619. SPECIFICATIONS. Table 1. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
Data Sheet AD8613/AD8617/AD8619 SPECIFICATIONS
Electrical characteristics at VSY = 5 V, VCM = VSY/2, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS −0.3 V < VCM < +5.3 V 0.4 2.2 mV −40°C < TA < +125°C, −0.3 V < VCM < +5.2 V 2.2 mV Offset Voltage Drift ∆VOS/∆T −40°C < TA < +125°C 1 4.5 μV/°C AD8613 2.5 7.0 μV/°C Input Bias Current IB 0.2 1 pA −40°C < TA < +85°C 110 pA −40°C < TA < +125°C 780 pA Input Offset Current IOS 0.1 0.5 pA −40°C < TA < +85°C 50 pA −40°C < TA < +125°C 250 pA Input Voltage Range IVR 0 5 V Common-Mode Rejection Ratio CMRR 0 V < VCM < 5 V 95 dB −40°C < TA < +125°C 68 dB Large Signal Voltage Gain AVO RL = 10 kΩ, 0.5 V < VO < 4.5 V 235 500 V/mV Input Capacitance CDIFF 1.9 pF CCM 2.5 pF OUTPUT CHARACTERISTICS Output Voltage High VOH IL = 1 mA 4.95 4.98 V −40°C to +125°C 4.9 V IL = 10 mA 4.7 V −40°C to +125°C 4.50 V Output Voltage Low VOL IL = 1 mA 20 30 mV −40°C to +125°C 50 mV IL = 10 mA 190 275 mV −40°C to +125°C 335 mV Short-Circuit Current ISC ±80 mA Closed-Loop Output Impedance ZOUT f = 10 kHz, AV = 1 15 Ω POWER SUPPLY Power Supply Rejection Ratio PSRR 1.8 V < VSY < 5 V 67 94 dB −40°C < TA < +125°C 64 dB Supply Current/Amplifier ISY VO = VSY/2 38 μA −40°C <TA < +125°C 50 μA DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ 0.1 V/μs Settling Time to 0.1% tS G = ±1, VIN = 2 V step, CL = 20 pF, RL = 1 kΩ 23 μs Gain Bandwidth Product GBP RL = 100 kΩ 400 kHz RL = 10 kΩ 350 kHz Phase Margin ØM RL = 10 kΩ, RL = 100 kΩ, CL = 20 pF 70 Degrees NOISE PERFORMANCE Peak-to-Peak Noise en p-p 0.1 Hz to 10 Hz 2.3 3.5 μV Voltage Noise Density en f = 1 kHz 25 nV/√Hz f = 10 kHz 22 nV/√Hz Current Noise Density in f = 1 kHz 0.05 pA/√Hz Rev. H | Page 3 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
