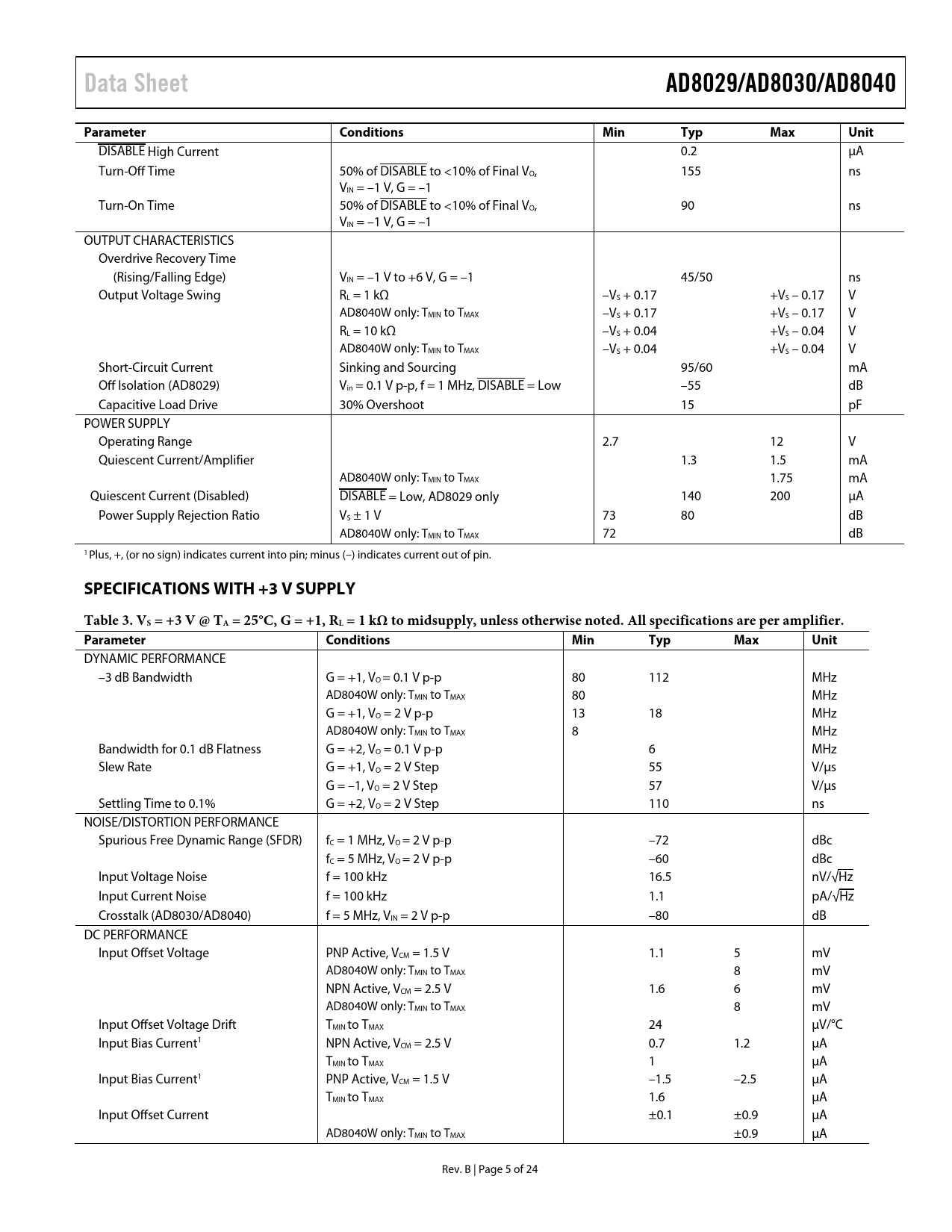

Datasheet AD8029, AD8030, AD8040 (Analog Devices) - 5

link to page 6
Data Sheet AD8029/AD8030/AD8040 Parameter Conditions Min Typ Max Unit
DISABLE High Current 0.2 µA Turn-Off Time 50% of DISABLE to <10% of Final VO, 155 ns VIN = –1 V, G = –1 Turn-On Time 50% of DISABLE to <10% of Final VO, 90 ns VIN = –1 V, G = –1 OUTPUT CHARACTERISTICS Overdrive Recovery Time (Rising/Falling Edge) VIN = –1 V to +6 V, G = –1 45/50 ns Output Voltage Swing RL = 1 kΩ –VS + 0.17 +VS – 0.17 V AD8040W only: TMIN to TMAX –VS + 0.17 +VS – 0.17 V RL = 10 kΩ –VS + 0.04 +VS – 0.04 V AD8040W only: TMIN to TMAX –VS + 0.04 +VS – 0.04 V Short-Circuit Current Sinking and Sourcing 95/60 mA Off Isolation (AD8029) Vin = 0.1 V p-p, f = 1 MHz, DISABLE = Low –55 dB Capacitive Load Drive 30% Overshoot 15 pF POWER SUPPLY Operating Range 2.7 12 V Quiescent Current/Amplifier 1.3 1.5 mA AD8040W only: TMIN to TMAX 1.75 mA Quiescent Current (Disabled) DISABLE = Low, AD8029 only 140 200 µA Power Supply Rejection Ratio VS ± 1 V 73 80 dB AD8040W only: TMIN to TMAX 72 dB 1 Plus, +, (or no sign) indicates current into pin; minus (–) indicates current out of pin.
SPECIFICATIONS WITH +3 V SUPPLY Table 3. VS = +3 V @ TA = 25°C, G = +1, RL = 1 kΩ to midsupply, unless otherwise noted. All specifications are per amplifier. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE –3 dB Bandwidth G = +1, VO = 0.1 V p-p 80 112 MHz AD8040W only: TMIN to TMAX 80 MHz G = +1, VO = 2 V p-p 13 18 MHz AD8040W only: TMIN to TMAX 8 MHz Bandwidth for 0.1 dB Flatness G = +2, VO = 0.1 V p-p 6 MHz Slew Rate G = +1, VO = 2 V Step 55 V/µs G = –1, VO = 2 V Step 57 V/µs Settling Time to 0.1% G = +2, VO = 2 V Step 110 ns NOISE/DISTORTION PERFORMANCE Spurious Free Dynamic Range (SFDR) fC = 1 MHz, VO = 2 V p-p –72 dBc fC = 5 MHz, VO = 2 V p-p –60 dBc Input Voltage Noise f = 100 kHz 16.5 nV/√Hz Input Current Noise f = 100 kHz 1.1 pA/√Hz Crosstalk (AD8030/AD8040) f = 5 MHz, VIN = 2 V p-p –80 dB DC PERFORMANCE Input Offset Voltage PNP Active, VCM = 1.5 V 1.1 5 mV AD8040W only: TMIN to TMAX 8 mV NPN Active, VCM = 2.5 V 1.6 6 mV AD8040W only: TMIN to TMAX 8 mV Input Offset Voltage Drift TMIN to TMAX 24 µV/°C Input Bias Current1 NPN Active, VCM = 2.5 V 0.7 1.2 µA TMIN to TMAX 1 µA Input Bias Current1 PNP Active, VCM = 1.5 V –1.5 –2.5 µA TMIN to TMAX 1.6 µA Input Offset Current ±0.1 ±0.9 µA AD8040W only: TMIN to TMAX ±0.9 µA Rev. B | Page 5 of 24 Document Outline Features Applications Connection Diagrams General Description Table of Contents Revision History Specifications Specifications with ±5 V Supply Specifications with +5 V Supply Specifications with +3 V Supply Absolute Maximum Ratings Maximum Power Dissipation Output Short Circuit ESD Caution Typical Performance Characteristics Theory of Operation Input Stage Output Stage Applications Wideband Operation Output Loading Sensitivity Disable Pin Circuit Considerations PCB Layout Grounding Power Supply Bypassing Design Tools and Technical Support Outline Dimensions Ordering Guide
