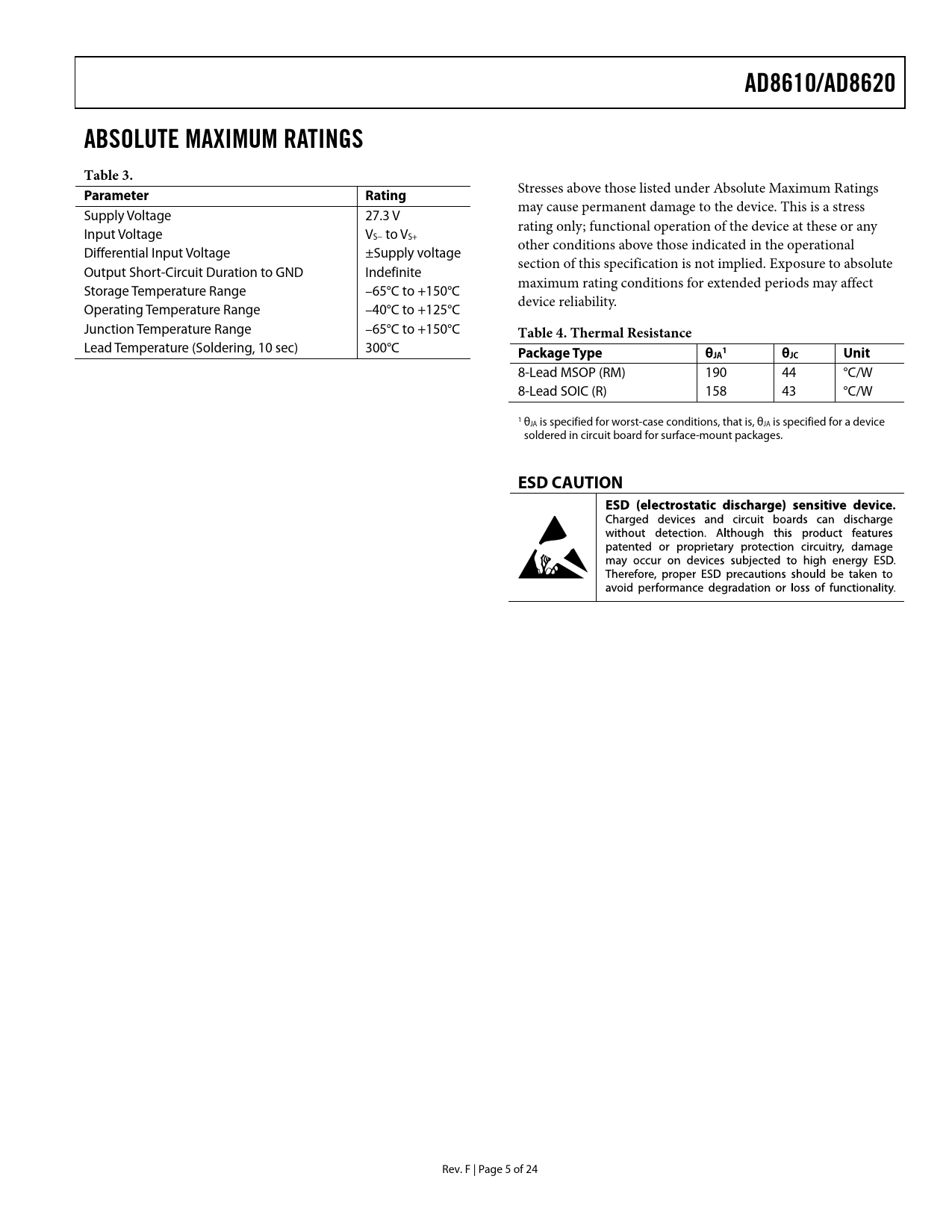

link to page 5 AD8610/AD8620ABSOLUTE MAXIMUM RATINGSTable 3. Stresses above those listed under Absolute Maximum Ratings Parameter Rating may cause permanent damage to the device. This is a stress Supply Voltage 27.3 V rating only; functional operation of the device at these or any Input Voltage VS− to VS+ other conditions above those indicated in the operational Differential Input Voltage ±Supply voltage section of this specification is not implied. Exposure to absolute Output Short-Circuit Duration to GND Indefinite maximum rating conditions for extended periods may affect Storage Temperature Range –65°C to +150°C device reliability. Operating Temperature Range –40°C to +125°C Junction Temperature Range –65°C to +150°C Table 4. Thermal Resistance Lead Temperature (Soldering, 10 sec) 300°C Package Typeθ 1JAθJC Unit 8-Lead MSOP (RM) 190 44 °C/W 8-Lead SOIC (R) 158 43 °C/W 1 θJA is specified for worst-case conditions, that is, θJA is specified for a device soldered in circuit board for surface-mount packages. ESD CAUTION Rev. F | Page 5 of 24 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION FUNCTIONAL DESCRIPTION Power Consumption Driving Large Capacitive Loads Slew Rate (Unity Gain Inverting vs. Noninverting) Input Overvoltage Protection No Phase Reversal THD Readings vs. Common-Mode Voltage Noise vs. Common-Mode Voltage Settling Time Output Current Capability Operating with Supplies Greater than ±13 V Input Offset Voltage Adjustment Programmable Gain Amplifier (PGA) High Speed Instrumentation Amplifier High Speed Filters Second-Order, Low-Pass Filter High Speed, Low Noise Differential Driver OUTLINE DIMENSIONS ORDERING GUIDE
