Datasheet AD8571, AD8572, AD8574 (Analog Devices)

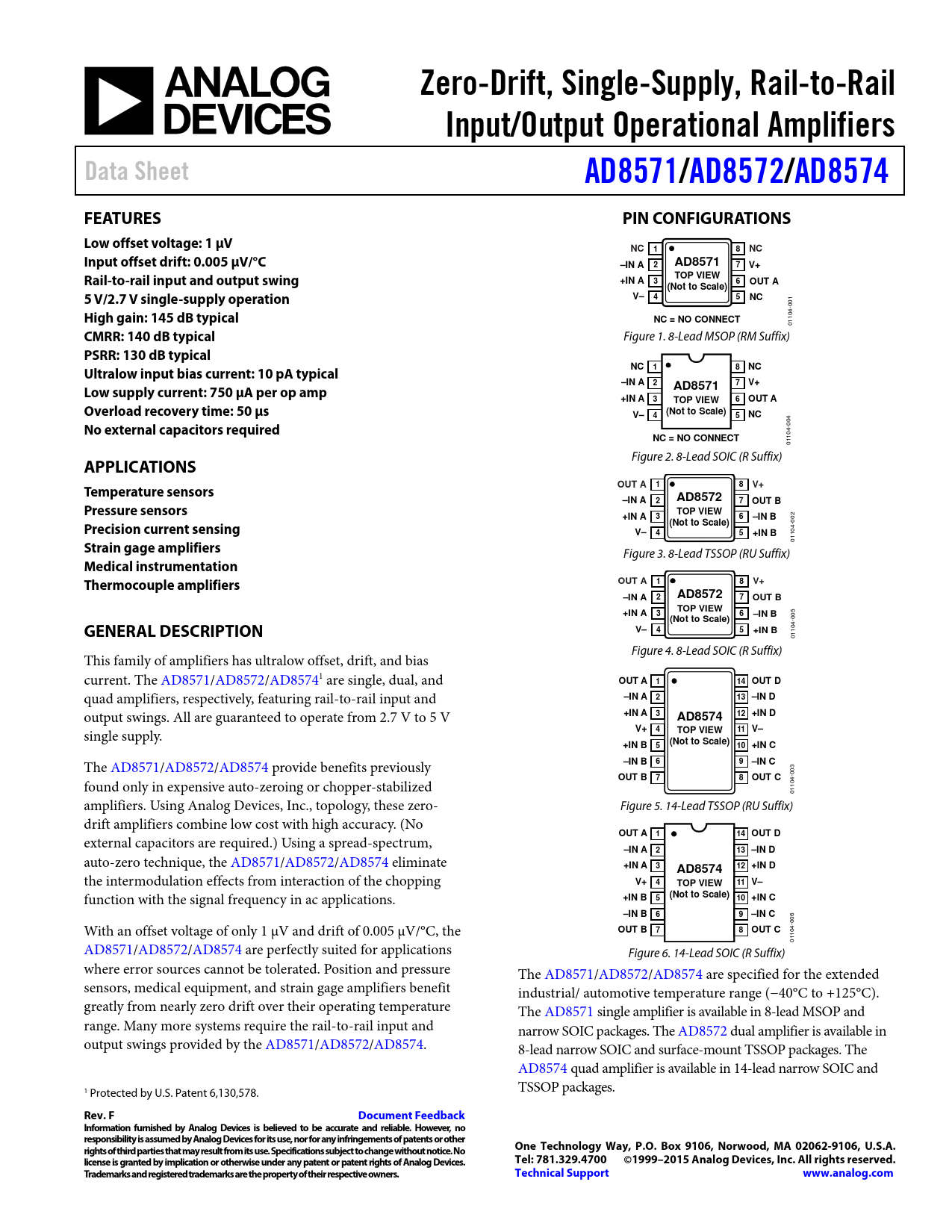

Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers Data Sheet AD8571/ AD8572/ AD8574 FEATURES PIN CONFIGURATIONS Low offset voltage: 1 μV NC 1 8 NC Input offset drift: 0.005 μV/°C –IN A 2 AD8571 7 V+ Rail-to-rail input and output swing TOP VIEW +IN A 3 6 OUT A (Not to Scale) 5 V/2.7 V single-supply operation V– 4 5 NC
1 -00
High gain: 145 dB typical
04
NC = NO CONNECT
11 0
CMRR: 140 dB typical
Figure 1. 8-Lead MSOP (RM Suffix)
PSRR: 130 dB typical NC 1 8 NC Ultralow input bias current: 10 pA typical –IN A 2 AD8571 7 V+ Low supply current: 750 μA per op amp +IN A 3 TOP VIEW 6 OUT A Overload recovery time: 50 μs (Not to Scale) V– 4 5 NC
04 0
No external capacitors required
4-
NC = NO CONNECT
10 01 Figure 2. 8-Lead SOIC (R Suffix)
APPLICATIONS OUT A 1 8 V+ Temperature sensors –IN A 2 AD8572 7 OUT B Pressure sensors TOP VIEW +IN A 3 6 –IN B
2
(Not to Scale)
00
Precision current sensing
4-
V– 4 5 +IN B
10 01
Strain gage amplifiers
Figure 3. 8-Lead TSSOP (RU Suffix)
Medical instrumentation Thermocouple amplifiers OUT A 1 8 V+ –IN A 2 AD8572 7 OUT B TOP VIEW +IN A 3 6 –IN B
5
(Not to Scale)
00 4-
GENERAL DESCRIPTION V– 4 5 +IN B
10 01 Figure 4. 8-Lead SOIC (R Suffix) This family of amplifiers has ultralow offset, drift, and bias current. The AD8571/AD8572/AD85741 are single, dual, and
OUT A 1 14 OUT D
quad amplifiers, respectively, featuring rail-to-rail input and
–IN A 2 13 –IN D
output swings. All are guaranteed to operate from 2.7 V to 5 V
+IN A 3 12 +IN D AD8574 V+ 4 11 TOP VIEW V–
single supply.
+IN B (Not to Scale) 5 10 +IN C
The AD8571/AD8572/AD8574 provide benefits previously
–IN B 6 9 –IN C
03 0
OUT B 7 8 OUT C
4- found only in expensive auto-zeroing or chopper-stabilized 10 01 amplifiers. Using Analog Devices, Inc., topology, these zero- Figure 5. 14-Lead TSSOP (RU Suffix) drift amplifiers combine low cost with high accuracy. (No
OUT A 1 14 OUT D
external capacitors are required.) Using a spread-spectrum,
–IN A 2 13 –IN D
auto-zero technique, the AD8571/AD8572/AD8574 eliminate
+IN A 3 12 +IN D AD8574
the intermodulation effects from interaction of the chopping
V+ 4 11 TOP VIEW V–
function with the signal frequency in ac applications.
+IN B (Not to Scale) 5 10 +IN C –IN B 6 9 –IN C
06 -0 With an offset voltage of only 1 μV and drift of 0.005 μV/°C, the
OUT B 7 8 OUT C
1104 0 AD8571/AD8572/AD8574 are perfectly suited for applications Figure 6. 14-Lead SOIC (R Suffix) where error sources cannot be tolerated. Position and pressure The AD8571/AD8572/AD8574 are specified for the extended sensors, medical equipment, and strain gage amplifiers benefit industrial/ automotive temperature range (−40°C to +125°C). greatly from nearly zero drift over their operating temperature The AD8571 single amplifier is available in 8-lead MSOP and range. Many more systems require the rail-to-rail input and narrow SOIC packages. The AD8572 dual amplifier is available in output swings provided by the AD8571/AD8572/AD8574. 8-lead narrow SOIC and surface-mount TSSOP packages. The AD8574 quad amplifier is available in 14-lead narrow SOIC and 1 TSSOP packages. Protected by U.S. Patent 6,130,578.
Rev. F Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©1999–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 5 V ELECTRICAL CHARACTERISTICS 2.7 V ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS FUNCTIONAL DESCRIPTION AMPLIFIER ARCHITECTURE BASIC AUTO-ZERO AMPLIFIER THEORY AUTO-ZERO PHASE AMPLIFICATION PHASE HIGH GAIN, CMRR, AND PSRR MAXIMIZING PERFORMANCE THROUGH PROPER LAYOUT 1/f NOISE CHARACTERISTICS RANDOM AUTO-ZERO CORRECTION ELIMINATES INTERMODULATION DISTORTION BROADBAND AND EXTERNAL RESISTOR NOISE CONSIDERATIONS OUTPUT OVERDRIVE RECOVERY INPUT OVERVOLTAGE PROTECTION OUTPUT PHASE REVERSAL CAPACITIVE LOAD DRIVE POWER-UP BEHAVIOR APPLICATIONS INFORMATION 5 V PRECISION STRAIN GAGE CIRCUIT 3 V INSTRUMENTATION AMPLIFIER HIGH ACCURACY THERMOCOUPLE AMPLIFIER PRECISION CURRENT METER PRECISION VOLTAGE COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
