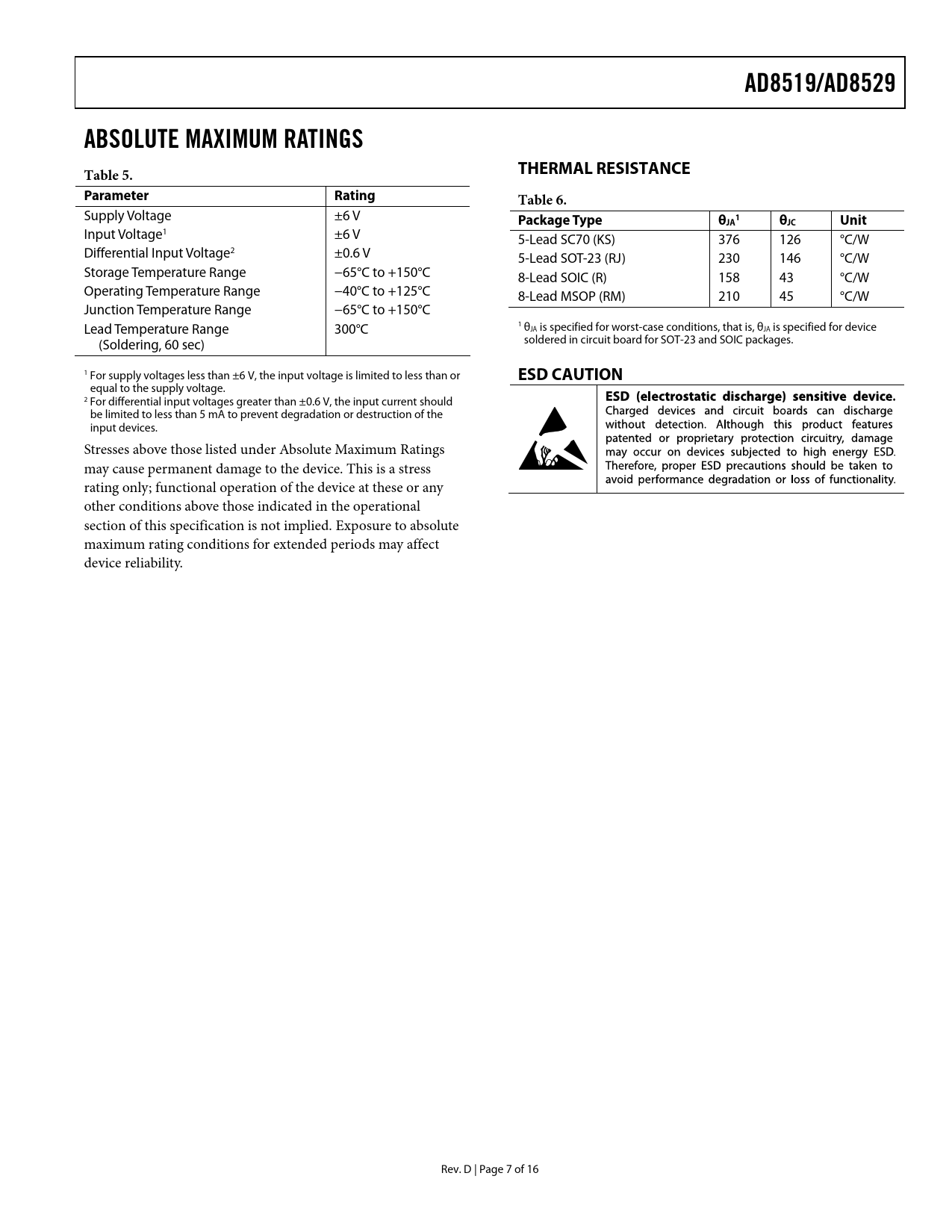

AD8519/AD8529 ABSOLUTE MAXIMUM RATINGS Table 5. THERMAL RESISTANCE Parameter Rating Table 6.
Supply Voltage ±6 V
Package Type θ 1 JA θJC Unit
Input Voltage1 ±6 V 5-Lead SC70 (KS) 376 126 °C/W Differential Input Voltage2 ±0.6 V 5-Lead SOT-23 (RJ) 230 146 °C/W Storage Temperature Range −65°C to +150°C 8-Lead SOIC (R) 158 43 °C/W Operating Temperature Range −40°C to +125°C 8-Lead MSOP (RM) 210 45 °C/W Junction Temperature Range −65°C to +150°C Lead Temperature Range 300°C 1 θJA is specified for worst-case conditions, that is, θJA is specified for device (Soldering, 60 sec) soldered in circuit board for SOT-23 and SOIC packages. 1 For supply voltages less than ±6 V, the input voltage is limited to less than or
ESD CAUTION
equal to the supply voltage. 2 For differential input voltages greater than ±0.6 V, the input current should be limited to less than 5 mA to prevent degradation or destruction of the input devices. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. D | Page 7 of 16 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION MAXIMUM POWER DISSIPATION PRECISION FULL-WAVE RECTIFIER 10× MICROPHONE PREAMP MEETS PC99 SPECIFICATIONS TWO-ELEMENT VARYING BRIDGE AMPLIFIER OUTLINE DIMENSIONS ORDERING GUIDE
