Datasheet AD8051, AD8052, AD8054 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | Low Cost, High Speed, Rail-to-Rail Amplifier |
| 页数 / 页 | 24 / 5 — AD8051/AD8052/AD8054. Table 2. AD8051A/AD8052A. AD8054A. Parameter. … |
| 修订版 | J |
| 文件格式/大小 | PDF / 358 Kb |
| 文件语言 | 英语 |

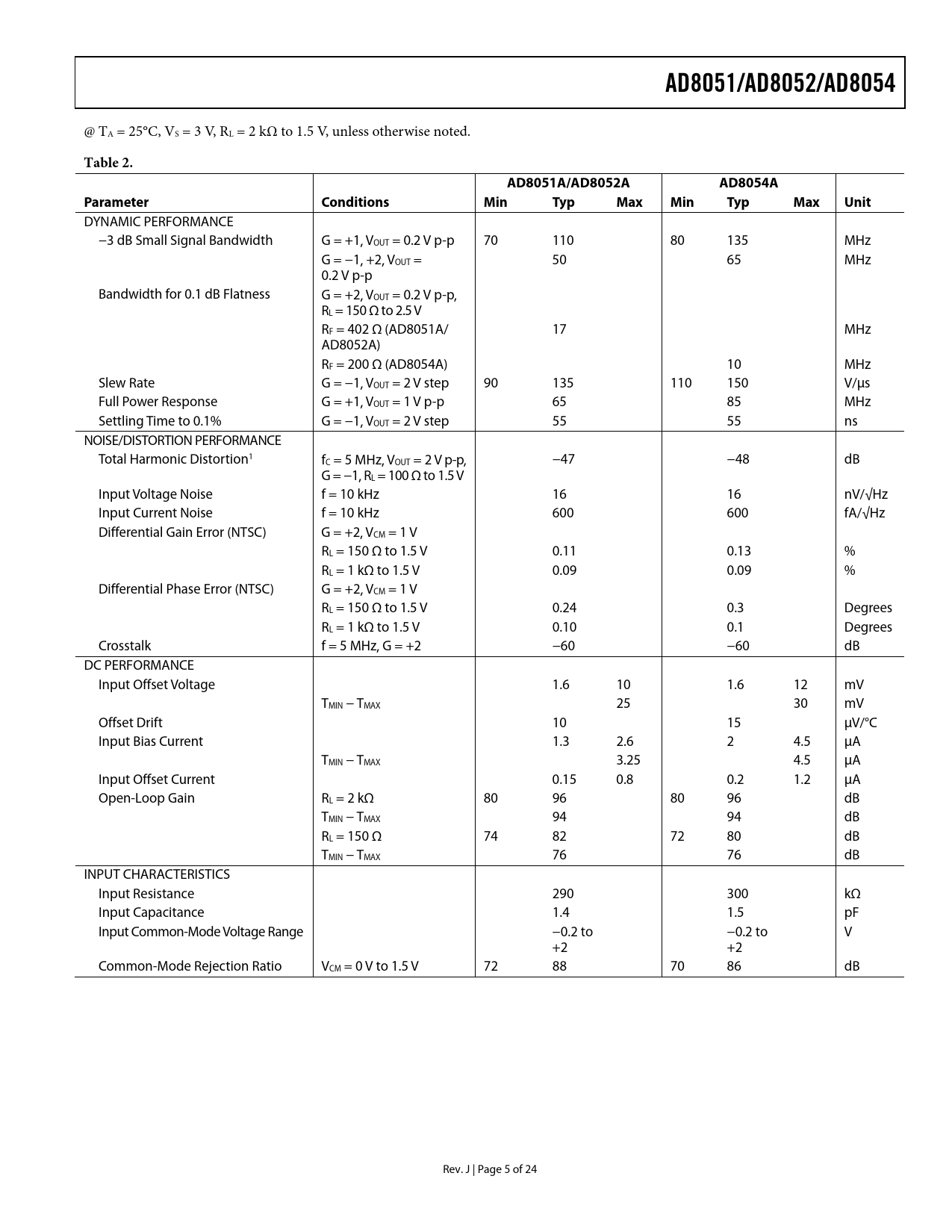

AD8051/AD8052/AD8054. Table 2. AD8051A/AD8052A. AD8054A. Parameter. Conditions. Min. Typ. Max. Unit
文件文字版本
link to page 6
AD8051/AD8052/AD8054
@ TA = 25°C, VS = 3 V, RL = 2 kΩ to 1.5 V, unless otherwise noted.
Table 2. AD8051A/AD8052A AD8054A Parameter Conditions Min Typ Max Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth G = +1, VOUT = 0.2 V p-p 70 110 80 135 MHz G = −1, +2, VOUT = 50 65 MHz 0.2 V p-p Bandwidth for 0.1 dB Flatness G = +2, VOUT = 0.2 V p-p, RL = 150 Ω to 2.5 V RF = 402 Ω (AD8051A/ 17 MHz AD8052A) RF = 200 Ω (AD8054A) 10 MHz Slew Rate G = −1, VOUT = 2 V step 90 135 110 150 V/μs Full Power Response G = +1, VOUT = 1 V p-p 65 85 MHz Settling Time to 0.1% G = −1, VOUT = 2 V step 55 55 ns NOISE/DISTORTION PERFORMANCE Total Harmonic Distortion1 fC = 5 MHz, VOUT = 2 V p-p, −47 −48 dB G = −1, RL = 100 Ω to 1.5 V Input Voltage Noise f = 10 kHz 16 16 nV/√Hz Input Current Noise f = 10 kHz 600 600 fA/√Hz Differential Gain Error (NTSC) G = +2, VCM = 1 V RL = 150 Ω to 1.5 V 0.11 0.13 % RL = 1 kΩ to 1.5 V 0.09 0.09 % Differential Phase Error (NTSC) G = +2, VCM = 1 V RL = 150 Ω to 1.5 V 0.24 0.3 Degrees RL = 1 kΩ to 1.5 V 0.10 0.1 Degrees Crosstalk f = 5 MHz, G = +2 −60 −60 dB DC PERFORMANCE Input Offset Voltage 1.6 10 1.6 12 mV TMIN − TMAX 25 30 mV Offset Drift 10 15 μV/°C Input Bias Current 1.3 2.6 2 4.5 μA TMIN − TMAX 3.25 4.5 μA Input Offset Current 0.15 0.8 0.2 1.2 μA Open-Loop Gain RL = 2 kΩ 80 96 80 96 dB TMIN − TMAX 94 94 dB RL = 150 Ω 74 82 72 80 dB TMIN − TMAX 76 76 dB INPUT CHARACTERISTICS Input Resistance 290 300 kΩ Input Capacitance 1.4 1.5 pF Input Common-Mode Voltage Range −0.2 to −0.2 to V +2 +2 Common-Mode Rejection Ratio VCM = 0 V to 1.5 V 72 88 70 86 dB Rev. J | Page 5 of 24 Document Outline Features Applications Pin Connections (Top Views) General Description Revision History Specifications Absolute Maximum Ratings Thermal Resistance Maximum Power Dissipation ESD Caution Typical Performance Characteristics Theory of Operation Circuit Description Application Information Overdrive Recovery Driving Capacitive Loads Layout Considerations Active Filters Analog-to-Digital and Digital-to-Analog Applications Sync Stripper Single-Supply Composite Video Line Driver Outline Dimensions Ordering Guide
