Datasheet AD8047, AD8048 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 250 MHz, General Purpose Voltage Feedback Op Amps |
| 页数 / 页 | 16 / 5 — AD8047/AD8048. PULSE. GENERATOR. +VS. TR/TF = 500ps. 0.1. RIN. VOUT. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 290 Kb |
| 文件语言 | 英语 |
AD8047/AD8048. PULSE. GENERATOR. +VS. TR/TF = 500ps. 0.1. RIN. VOUT. AD8048. RT = 66.5. L = 100. RL = 100. T = 49.9. S = 100. –VS. 5ns. 100mV
该数据表的模型线
文件文字版本
AD8047/AD8048 RF RF PULSE +V 10 F PULSE 10 F GENERATOR S +VS GENERATOR TR/TF = 500ps 0.1 F TR/TF = 500ps 0.1 F RIN 7 RIN 7 2 V 2 IN VOUT AD8048 6 AD8048 6 VOUT RT = 66.5 V 0.1 F 0.1 F IN 3 3 R 4 4 L = 100 RL = 100 R 10 R T = 49.9 F S = 100 10 F –VS –VS

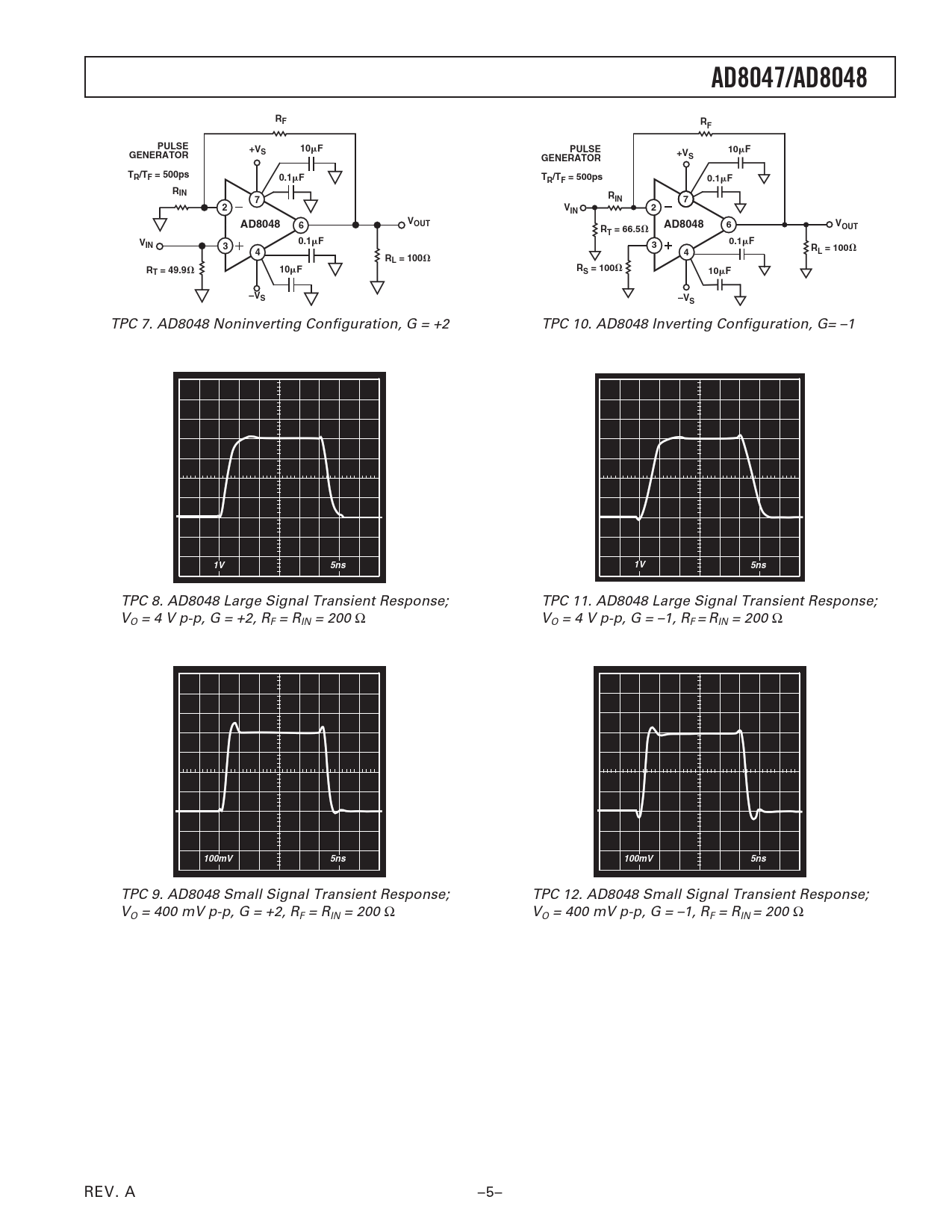

TPC 7. AD8048 Noninverting Configuration, G = +2 TPC 10. AD8048 Inverting Configuration, G= –1
1V 5ns 1V 5ns
TPC 8. AD8048 Large Signal Transient Response; TPC 11. AD8048 Large Signal Transient Response; VO = 4 V p-p, G = +2, RF = RIN = 200 Ω VO = 4 V p-p, G = –1, RF = RIN = 200 Ω
100mV 5ns 100mV 5ns
TPC 9. AD8048 Small Signal Transient Response; TPC 12. AD8048 Small Signal Transient Response; VO = 400 mV p-p, G = +2, RF = RIN = 200 Ω VO = 400 mV p-p, G = –1, RF = RIN = 200 Ω REV. A –5– Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PRODUCT DESCRIPTION SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS METALLIZATION PHOTOS MAXIMUM POWER DISSIPATION ORDERING GUIDE Typical Performance Characteristics THEORY OF OPERATION General Feedback Resistor Choice Pulse Response Large Signal Performance Power Supply Bypassing Driving Capacitive Loads APPLICATIONS Operation as a Video Line Driver Active Filters A/D Converter Driver Layout Considerations OUTLINE DIMENSIONS Revision History
