OP179/OP279. ABSOLUTE MAXIMUM RATINGS. Package Types. Unit. ORDERING GUIDE. Package. Temperature Range. Package Description
该数据表的模型线
文件文字版本

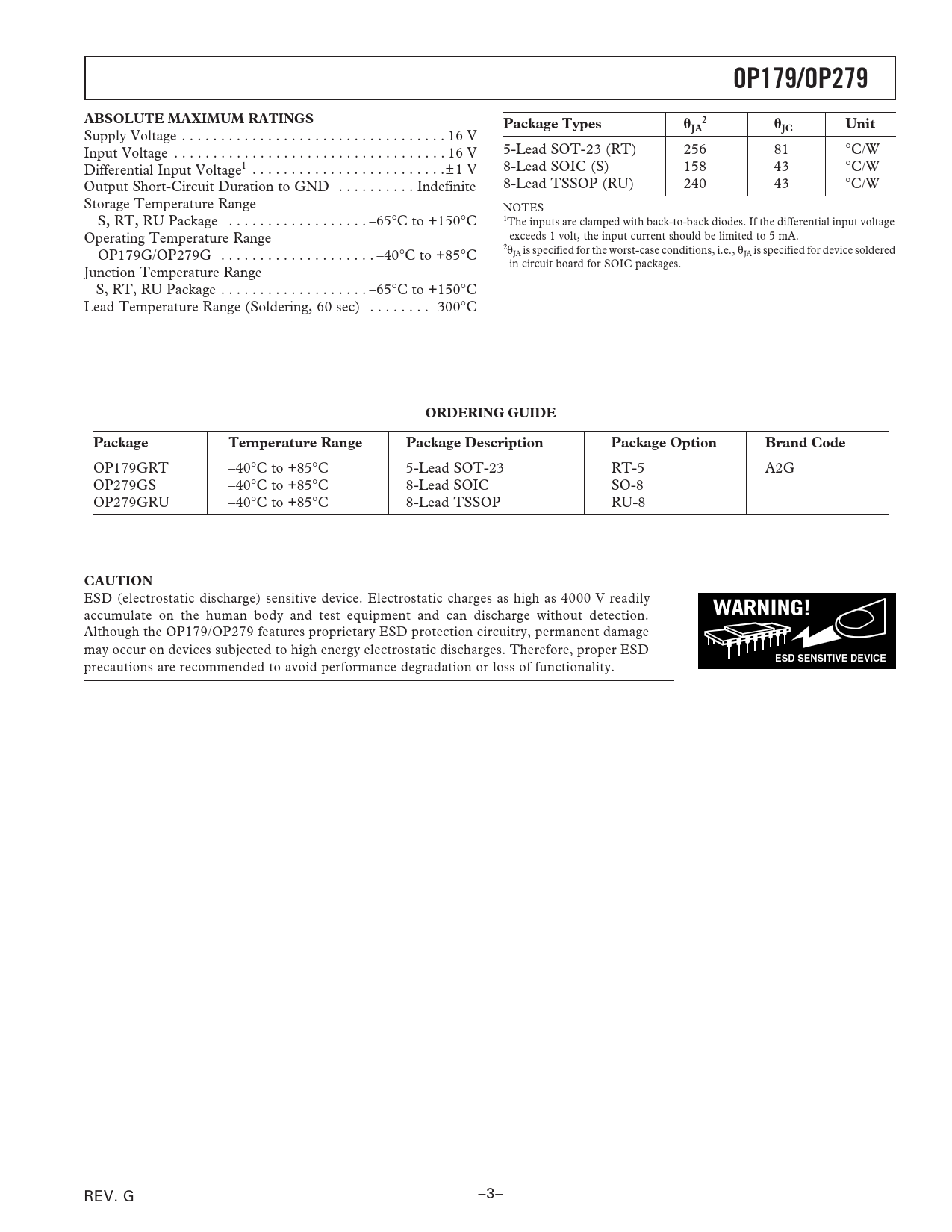

OP179/OP279 ABSOLUTE MAXIMUM RATINGS Package Types
2 JA
JC Unit
Supply Voltage . 16 V Input Voltage . 16 V 5-Lead SOT-23 (RT) 256 81 °C/W Differential Input Voltage1 . ± 1 V 8-Lead SOIC (S) 158 43 °C/W Output Short-Circuit Duration to GND . Indefinite 8-Lead TSSOP (RU) 240 43 °C/W Storage Temperature Range NOTES S, RT, RU Package . –65°C to +150°C 1The inputs are clamped with back-to-back diodes. If the differential input voltage Operating Temperature Range exceeds 1 volt, the input current should be limited to 5 mA. 2 OP179G/OP279G . –40°C to +85°C θJA is specified for the worst-case conditions, i.e., θJA is specified for device soldered in circuit board for SOIC packages. Junction Temperature Range S, RT, RU Package . –65°C to +150°C Lead Temperature Range (Soldering, 60 sec) . 300°C
ORDERING GUIDE Package Temperature Range Package Description Package Option Brand Code
OP179GRT –40°C to +85°C 5-Lead SOT-23 RT-5 A2G OP279GS –40°C to +85°C 8-Lead SOIC SO-8 OP279GRU –40°C to +85°C 8-Lead TSSOP RU-8
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
WARNING!
accumulate on the human body and test equipment and can discharge without detection. Although the OP179/OP279 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD
ESD SENSITIVE DEVICE
precautions are recommended to avoid performance degradation or loss of functionality. REV. G –3–
