Datasheet OP292, OP492 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Dual/Quad Single-Supply Operational Amplifiers |
| 页数 / 页 | 20 / 3 — Data Sheet. OP292/OP492. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table … |
| 修订版 | D |
| 文件格式/大小 | PDF / 345 Kb |
| 文件语言 | 英语 |
Data Sheet. OP292/OP492. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
该数据表的模型线
文件文字版本
link to page 4

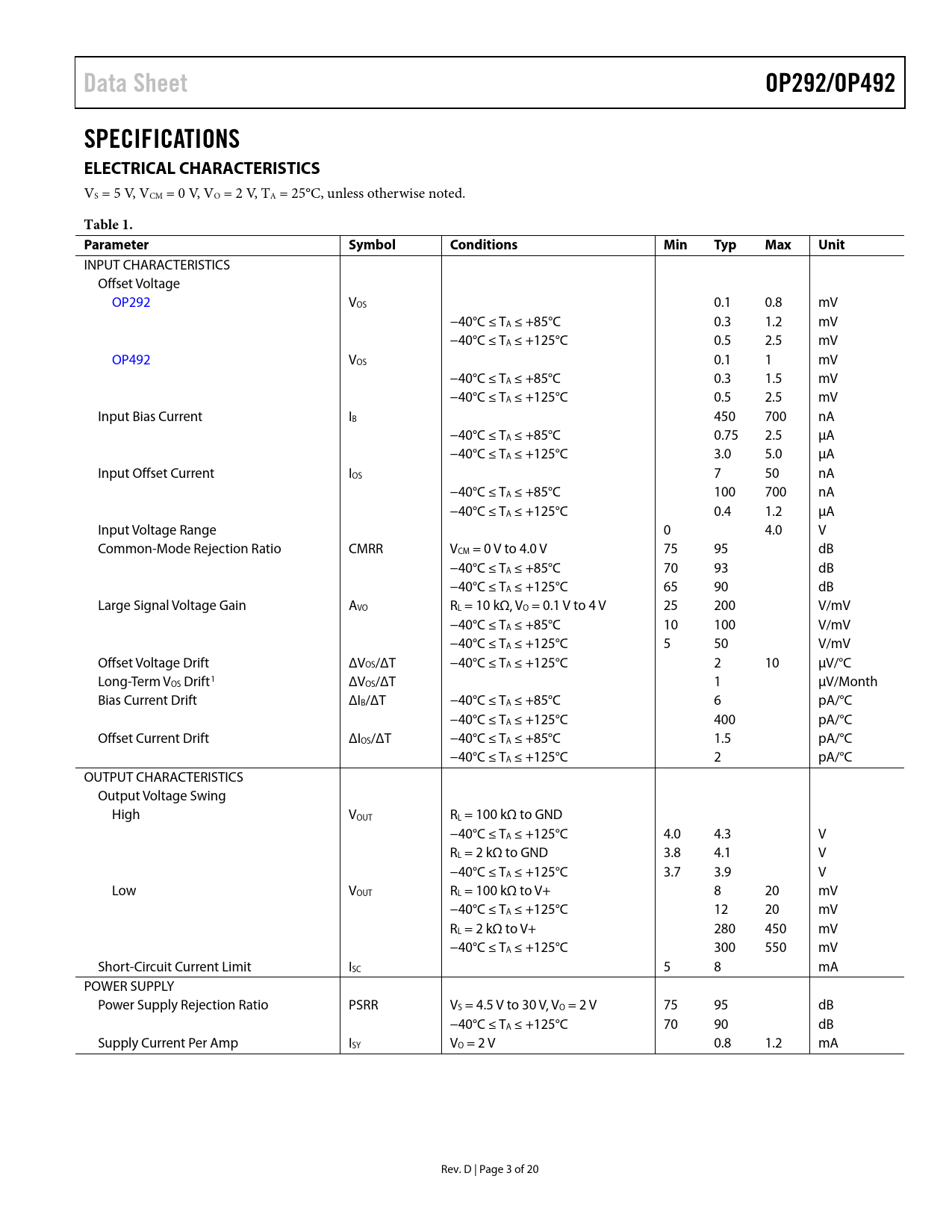

Data Sheet OP292/OP492 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
VS = 5 V, VCM = 0 V, VO = 2 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage OP292 VOS 0.1 0.8 mV −40°C ≤ TA ≤ +85°C 0.3 1.2 mV −40°C ≤ TA ≤ +125°C 0.5 2.5 mV OP492 VOS 0.1 1 mV −40°C ≤ TA ≤ +85°C 0.3 1.5 mV −40°C ≤ TA ≤ +125°C 0.5 2.5 mV Input Bias Current IB 450 700 nA −40°C ≤ TA ≤ +85°C 0.75 2.5 µA −40°C ≤ TA ≤ +125°C 3.0 5.0 µA Input Offset Current IOS 7 50 nA −40°C ≤ TA ≤ +85°C 100 700 nA −40°C ≤ TA ≤ +125°C 0.4 1.2 µA Input Voltage Range 0 4.0 V Common-Mode Rejection Ratio CMRR VCM = 0 V to 4.0 V 75 95 dB −40°C ≤ TA ≤ +85°C 70 93 dB −40°C ≤ TA ≤ +125°C 65 90 dB Large Signal Voltage Gain AVO RL = 10 kΩ, VO = 0.1 V to 4 V 25 200 V/mV −40°C ≤ TA ≤ +85°C 10 100 V/mV −40°C ≤ TA ≤ +125°C 5 50 V/mV Offset Voltage Drift ΔVOS/ΔT −40°C ≤ TA ≤ +125°C 2 10 µV/°C Long-Term VOS Drift1 ΔVOS/ΔT 1 µV/Month Bias Current Drift ΔIB/ΔT −40°C ≤ TA ≤ +85°C 6 pA/°C −40°C ≤ TA ≤ +125°C 400 pA/°C Offset Current Drift ΔIOS/ΔT −40°C ≤ TA ≤ +85°C 1.5 pA/°C −40°C ≤ TA ≤ +125°C 2 pA/°C OUTPUT CHARACTERISTICS Output Voltage Swing High VOUT RL = 100 kΩ to GND −40°C ≤ TA ≤ +125°C 4.0 4.3 V RL = 2 kΩ to GND 3.8 4.1 V −40°C ≤ TA ≤ +125°C 3.7 3.9 V Low VOUT RL = 100 kΩ to V+ 8 20 mV −40°C ≤ TA ≤ +125°C 12 20 mV RL = 2 kΩ to V+ 280 450 mV −40°C ≤ TA ≤ +125°C 300 550 mV Short-Circuit Current Limit ISC 5 8 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VS = 4.5 V to 30 V, VO = 2 V 75 95 dB −40°C ≤ TA ≤ +125°C 70 90 dB Supply Current Per Amp ISY VO = 2 V 0.8 1.2 mA Rev. D | Page 3 of 20 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION PHASE REVERSAL POWER SUPPLY CONSIDERATIONS TYPICAL APPLICATIONS DIRECT ACCESS ARRANGEMENT FOR TELEPHONE LINE INTERFACE SINGLE-SUPPLY INSTRUMENTATION AMPLIFIER DAC OUTPUT AMPLIFIER 50 Hz/60 Hz SINGLE-SUPPLY NOTCH FILTER FOUR-POLE BESSEL LOW-PASS FILTER LOW COST, LINEARIZED THERMISTOR AMPLIFIER SINGLE-SUPPLY ULTRASONIC CLAMPING/LIMITING RECEIVER AMPLIFIER PRECISION SINGLE-SUPPLY VOLTAGE COMPARATOR PROGRAMMABLE PRECISION WINDOW COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet OP292/OP492 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
VS = 5 V, VCM = 0 V, VO = 2 V, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
