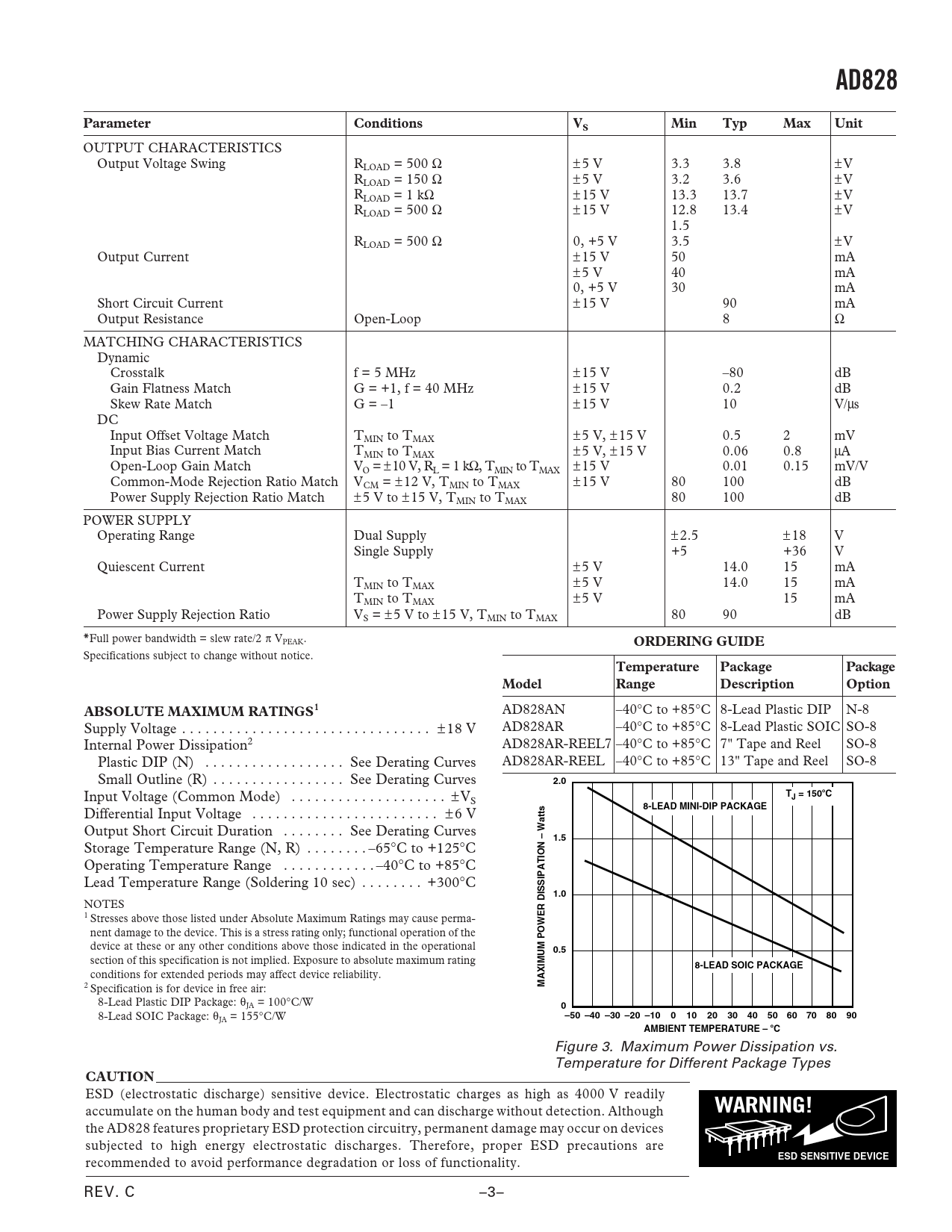

Datasheet AD828 (Analog Devices) - 4

AD828 Parameter Conditions VS Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Voltage Swing RLOAD = 500 Ω ±5 V 3.3 3.8 ±V RLOAD = 150 Ω ±5 V 3.2 3.6 ±V RLOAD = 1 kΩ ±15 V 13.3 13.7 ±V RLOAD = 500 Ω ±15 V 12.8 13.4 ±V 1.5 RLOAD = 500 Ω 0, +5 V 3.5 ±V Output Current ±15 V 50 mA ±5 V 40 mA 0, +5 V 30 mA Short Circuit Current ±15 V 90 mA Output Resistance Open-Loop 8 Ω MATCHING CHARACTERISTICS Dynamic Crosstalk f = 5 MHz ±15 V –80 dB Gain Flatness Match G = +1, f = 40 MHz ±15 V 0.2 dB Skew Rate Match G = –1 ±15 V 10 V/µs DC Input Offset Voltage Match T ± MIN to TMAX 5 V, ± 15 V 0.5 2 mV Input Bias Current Match T ± MIN to TMAX 5 V, ± 15 V 0.06 0.8 µA Open-Loop Gain Match V ± O = ± 10 V, RL = 1 kΩ, TMIN to TMAX 15 V 0.01 0.15 mV/V Common-Mode Rejection Ratio Match V ± CM = ± 12 V, TMIN to TMAX 15 V 80 100 dB Power Supply Rejection Ratio Match ±5 V to ±15 V, TMIN to TMAX 80 100 dB POWER SUPPLY Operating Range Dual Supply ±2.5 ±18 V Single Supply +5 +36 V Quiescent Current ±5 V 14.0 15 mA T ± MIN to TMAX 5 V 14.0 15 mA T ± MIN to TMAX 5 V 15 mA Power Supply Rejection Ratio VS = ± 5 V to ± 15 V, TMIN to TMAX 80 90 dB
*
Full power bandwidth = slew rate/2 π VPEAK.
ORDERING GUIDE
Specifications subject to change without notice.
Temperature Package Package Model Range Description Option ABSOLUTE MAXIMUM RATINGS1
AD828AN –40°C to +85°C 8-Lead Plastic DIP N-8 Supply Voltage . ± 18 V AD828AR –40°C to +85°C 8-Lead Plastic SOIC SO-8 Internal Power Dissipation2 AD828AR-REEL7 –40°C to +85°C 7" Tape and Reel SO-8 Plastic DIP (N) . See Derating Curves AD828AR-REEL –40°C to +85°C 13" Tape and Reel SO-8 Small Outline (R) . See Derating Curves
2.0
Input Voltage (Common Mode) . ± V
T
S
J = 150 C 8-LEAD MINI-DIP PACKAGE
Differential Input Voltage . ± 6 V Output Short Circuit Duration . See Derating Curves
1.5
Storage Temperature Range (N, R) . –65°C to +125°C Operating Temperature Range . –40°C to +85°C Lead Temperature Range (Soldering 10 sec) . +300°C
1.0
NOTES 1 Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational
0.5
section of this specification is not implied. Exposure to absolute maximum rating
8-LEAD SOIC PACKAGE
conditions for extended periods may affect device reliability. 2 Specification is for device in free air:
MAXIMUM POWER DISSIPATION – Watts
8-Lead Plastic DIP Package: θJA = 100°C/W
0
8-Lead SOIC Package: θ
–50 –40 –30 –20 –10 0 10 20 30 40 50 60 70 80 90
JA = 155°C/W
AMBIENT TEMPERATURE – C
Figure 3. Maximum Power Dissipation vs. Temperature for Different Package Types
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the AD828 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are
ESD SENSITIVE DEVICE
recommended to avoid performance degradation or loss of functionality. REV. C –3–
