Datasheet AD844 (Analog Devices) - 5
| 制造商 | Analog Devices |
| 描述 | 60 MHz, 2000 V/μs, Monolithic Op Amp with Quad Low Noise |
| 页数 / 页 | 20 / 5 — Data Sheet. AD844. ABSOLUTE MAXIMUM RATINGS. METALLIZATION PHOTOGRAPH. … |
| 修订版 | G |
| 文件格式/大小 | PDF / 382 Kb |
| 文件语言 | 英语 |

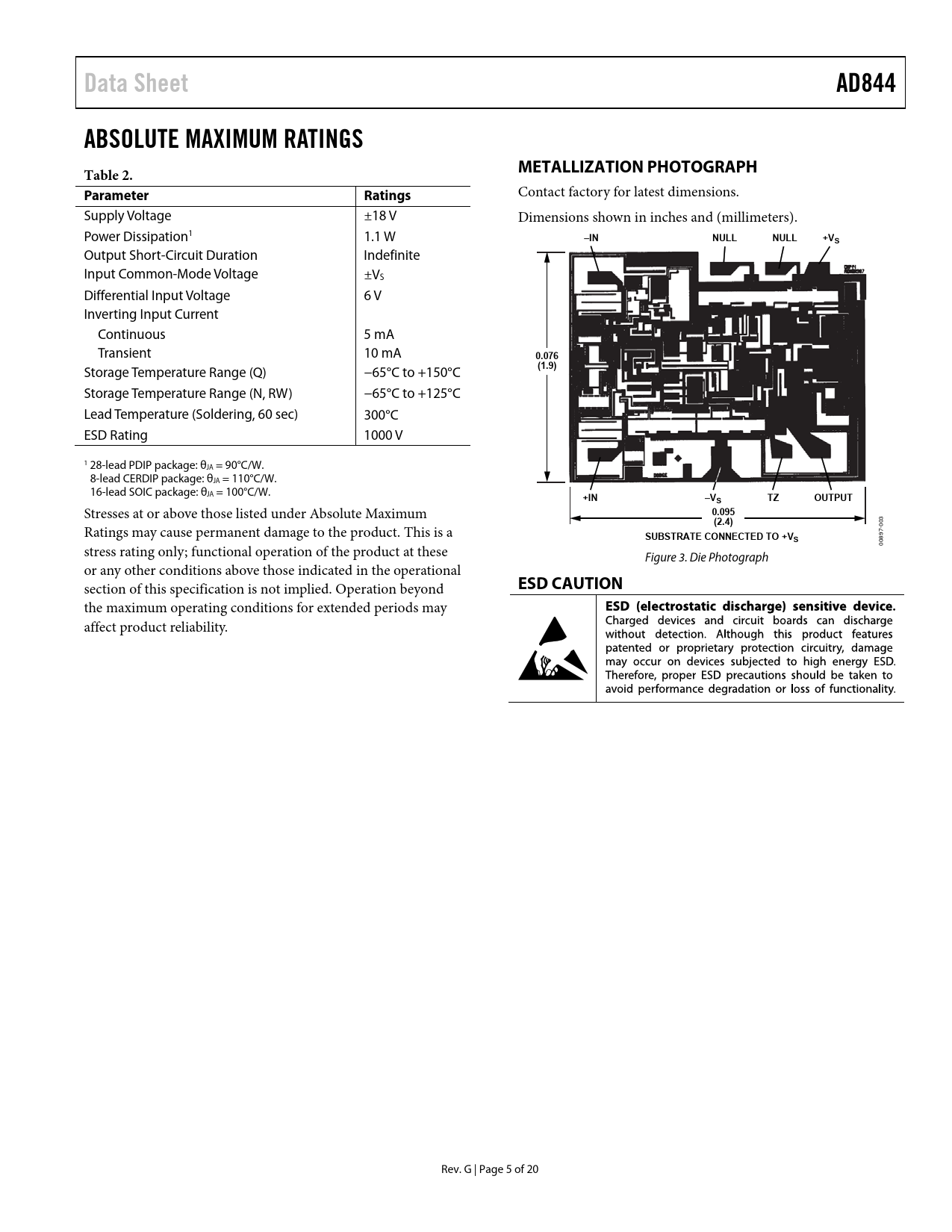

Data Sheet. AD844. ABSOLUTE MAXIMUM RATINGS. METALLIZATION PHOTOGRAPH. Table 2. Parameter Ratings. –IN. NULL. +VS. 0.076. (1.9). +IN. –VS
该数据表的模型线
文件文字版本
Data Sheet AD844 ABSOLUTE MAXIMUM RATINGS METALLIZATION PHOTOGRAPH Table 2. Parameter Ratings
Contact factory for latest dimensions. Supply Voltage ±18 V Dimensions shown in inches and (millimeters). Power Dissipation1 1.1 W
–IN NULL NULL +VS
Output Short-Circuit Duration Indefinite Input Common-Mode Voltage ±VS Differential Input Voltage 6 V Inverting Input Current Continuous 5 mA Transient 10 mA
0.076 (1.9)
Storage Temperature Range (Q) −65°C to +150°C Storage Temperature Range (N, RW) −65°C to +125°C Lead Temperature (Soldering, 60 sec) 300°C ESD Rating 1000 V 1 28-lead PDIP package: θJA = 90°C/W. 8-lead CERDIP package: θJA = 110°C/W. 16-lead SOIC package: θJA = 100°C/W.
+IN –VS TZ OUTPUT
Stresses at or above those listed under Absolute Maximum
0.095 (2.4)
3 00 Ratings may cause permanent damage to the product. This is a 7-
SUBSTRATE CONNECTED TO +VS
89 00 stress rating only; functional operation of the product at these Figure 3. Die Photograph or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond
ESD CAUTION
the maximum operating conditions for extended periods may affect product reliability. Rev. G | Page 5 of 20 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS METALLIZATION PHOTOGRAPH ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS INVERTING GAIN-OF-1 AC CHARACTERISTICS INVERTING GAIN-OF-10 AC CHARACTERISTICS INVERTING GAIN-OF-10 PULSE RESPONSE NONINVERTING GAIN-OF-10 AC CHARACTERISTICS UNDERSTANDING THE AD844 OPEN-LOOP BEHAVIOR RESPONSE AS AN INVERTING AMPLIFIER RESPONSE AS AN I-V CONVERTER CIRCUIT DESCRIPTION OF THE AD844 RESPONSE AS A NONINVERTING AMPLIFIER NONINVERTING GAIN OF 100 USING THE AD844 BOARD LAYOUT INPUT IMPEDANCE DRIVING LARGE CAPACITIVE LOADS SETTLING TIME DC ERROR CALCULATION NOISE VIDEO CABLE DRIVER USING ±5 V SUPPLIES HIGH SPEED DAC BUFFER 20 MHZ VARIABLE GAIN AMPLIFIER OUTLINE DIMENSIONS ORDERING GUIDE
